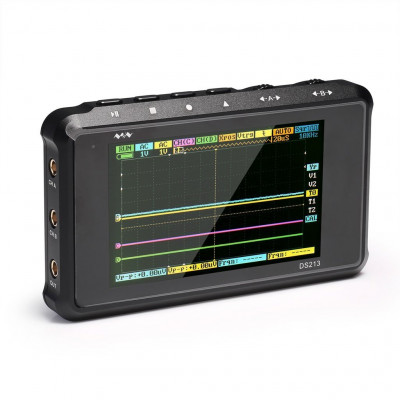

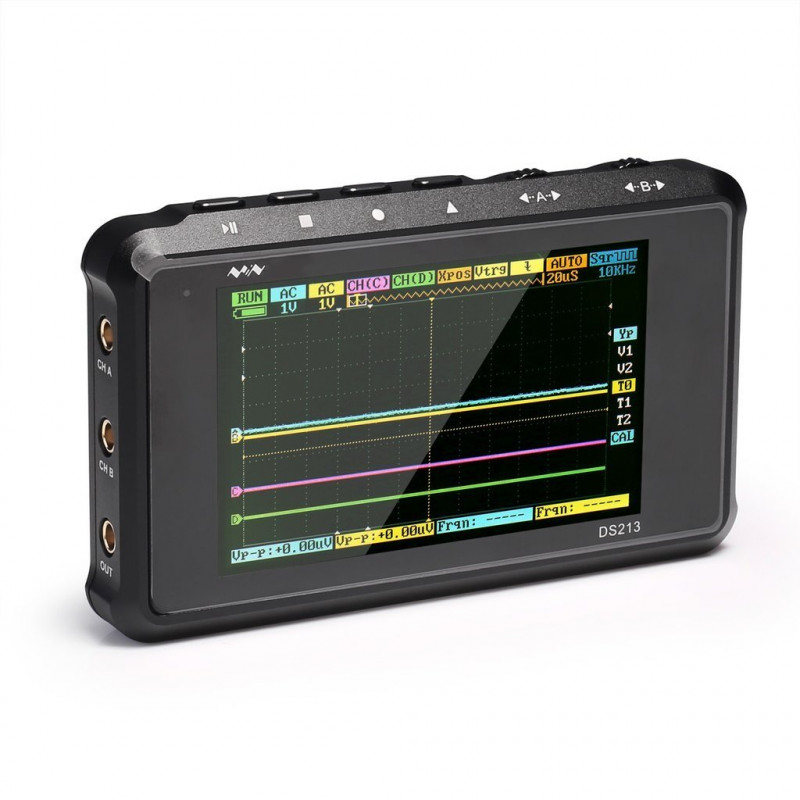

DS213 is a 5-track, 4-wave line digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADCs control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs.

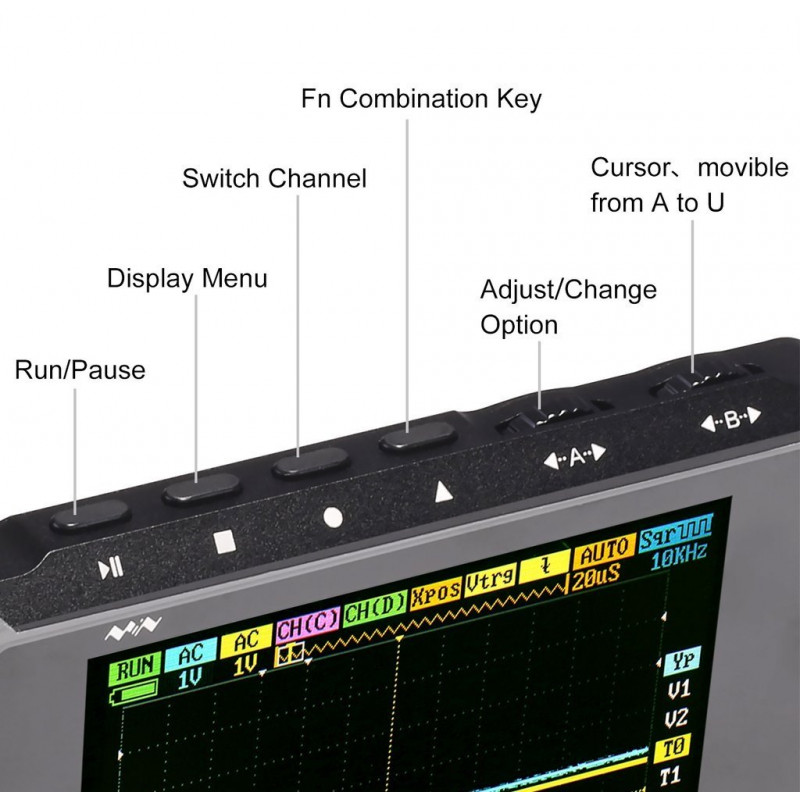

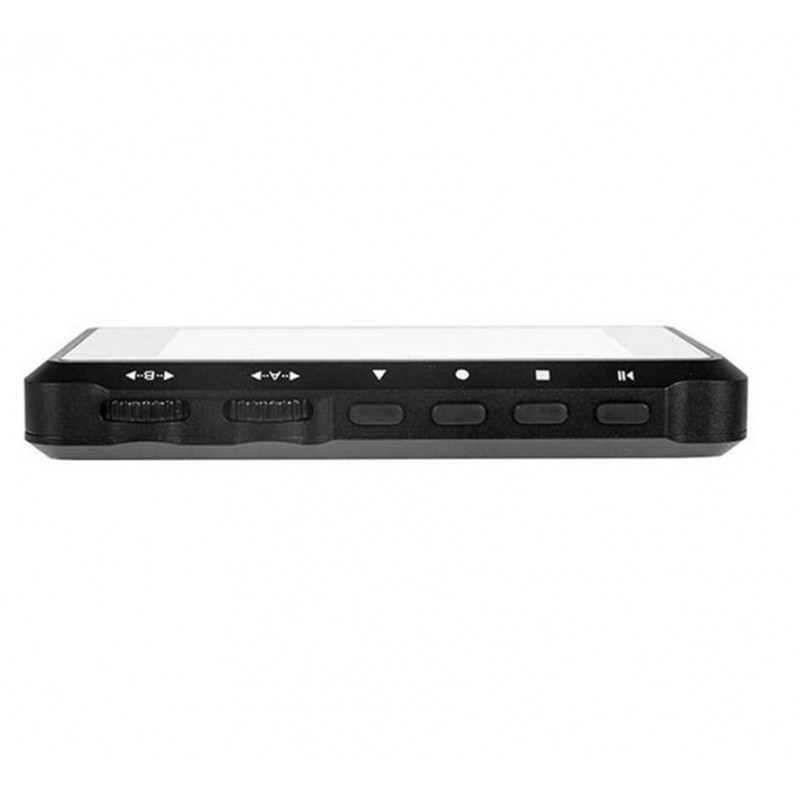

Features:

1. Mini size, lightweight, portable and handheld;
2. Charging with Micro USB port
3. It can store waveforms, making waveform analysis clearer and more effective;
4. Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;
5. Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.
6. Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B] [CH_A]-[CH_B][CH_C]&[CH_D][CH_C] | [CH_D]
7. Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe) 100mV-100V/div (1-2-5 STEP) (using X10 probe)
8. Max Input Voltage: 40Vpp (using X1 probe) 400Vpp (using X10 probe)
9. Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger
10. Trigger Mode: Auto, Normal, Single, Slow
11. Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]
12. Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;
13. Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources
14. Storage: built in 8M USB disk
15. File Types: BMPBUFCSV
16. Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average
17. Cursor Measurement: Time value, Amplitude value

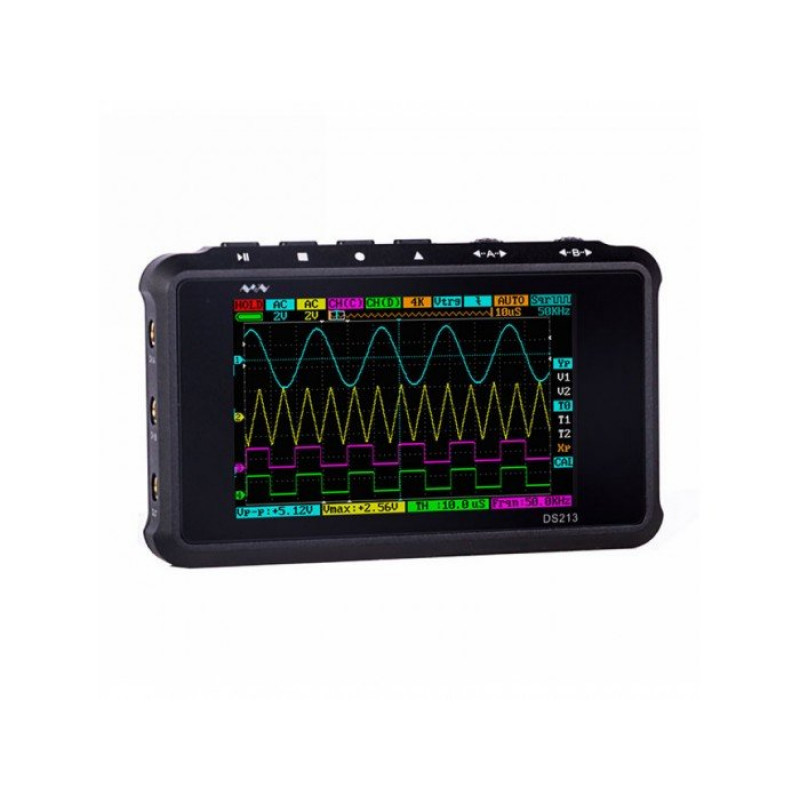

18. Display Modes: 4 wave lines: Line 1: [CH_A], HIDE Line 2: [CH_B], HIDE Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE

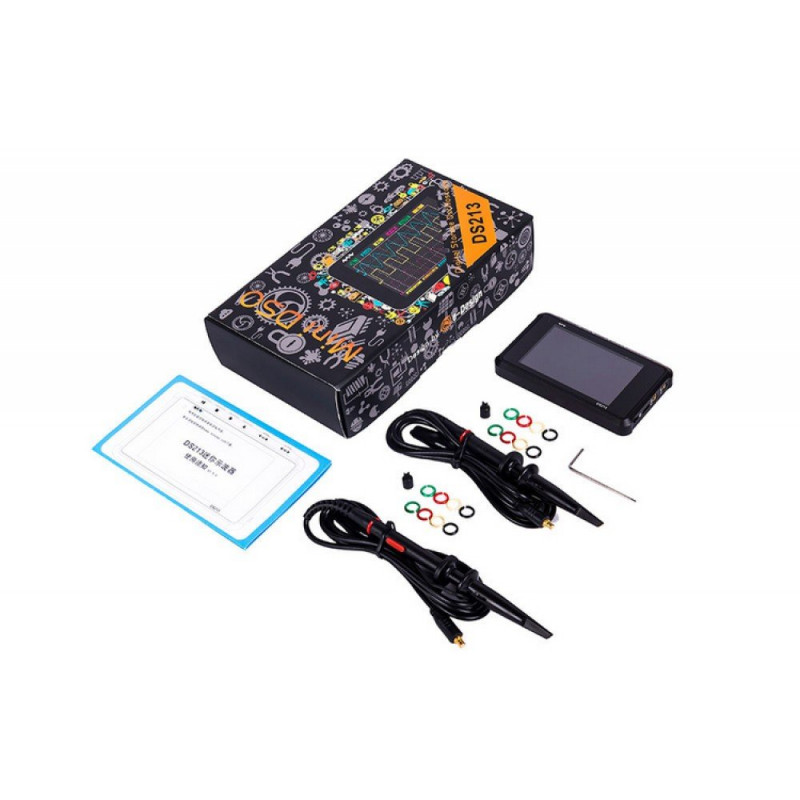

Package Includes:

1 xMini Oscilloscope DS213

1 x X10 Probe Analyzer

1 x X1 Probe Analyzer

1 x Safety Instructions

1 x Hex Key

Specifications :-

Model	DS213
CPU	ARM Cortex M3
FIFO & Control	FPGA

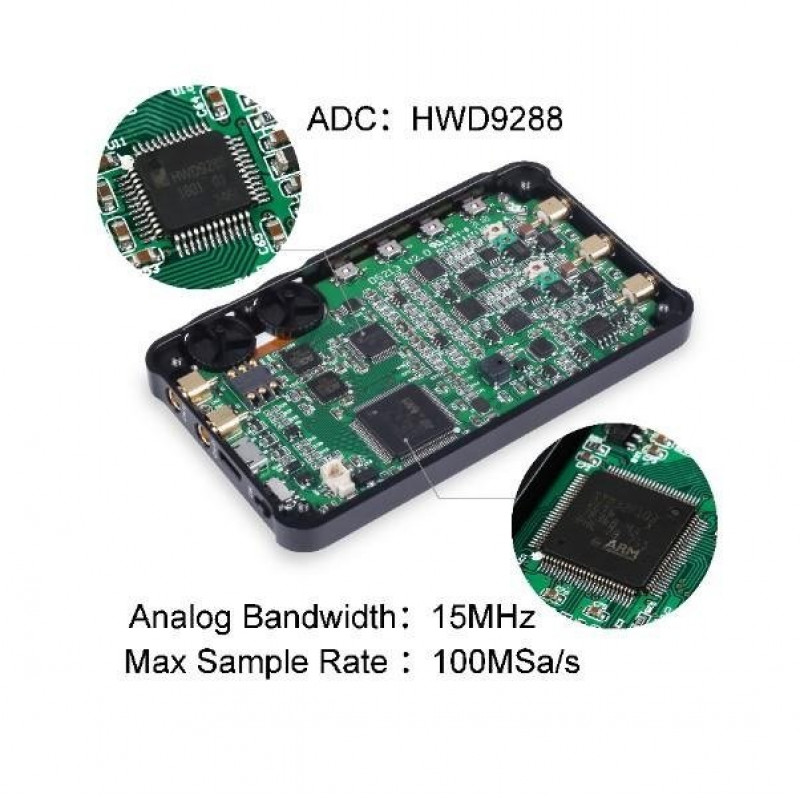

ADC	HWD9288-100

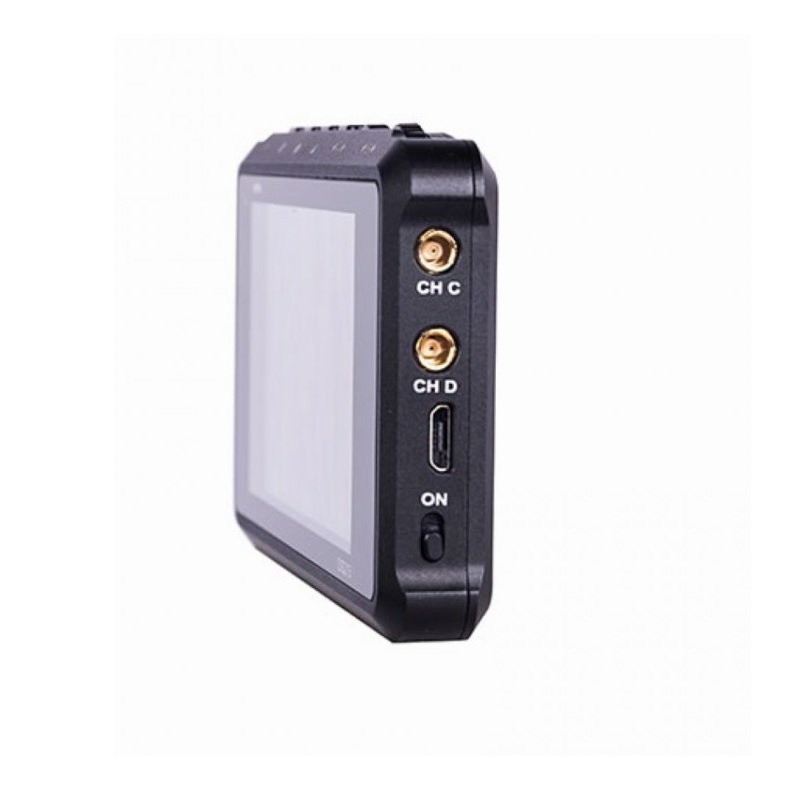

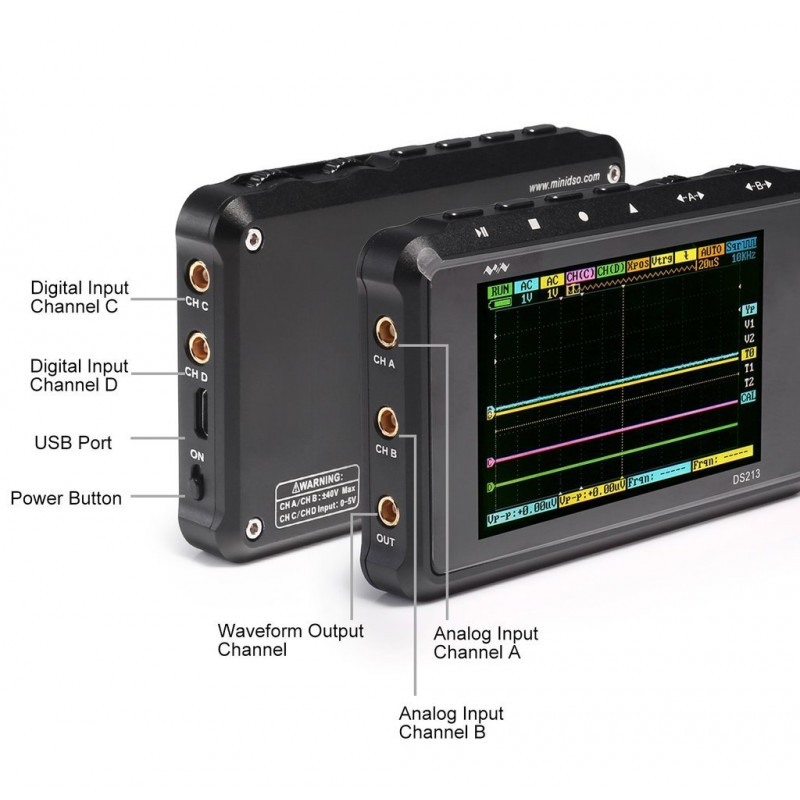

Channel	Analog Channels: 2[CH_A] [CH_B] Digital Channels: 2[CH_C] [CH_D]
Vertical Resolution	8 bits
Sample Memory Depth	4 channels, 4 x 4K
Coupling	DC, AC
Sampling Mode	Real-time Sampling
Sampling Rate	100M Sa/s
Battery	1000mAh

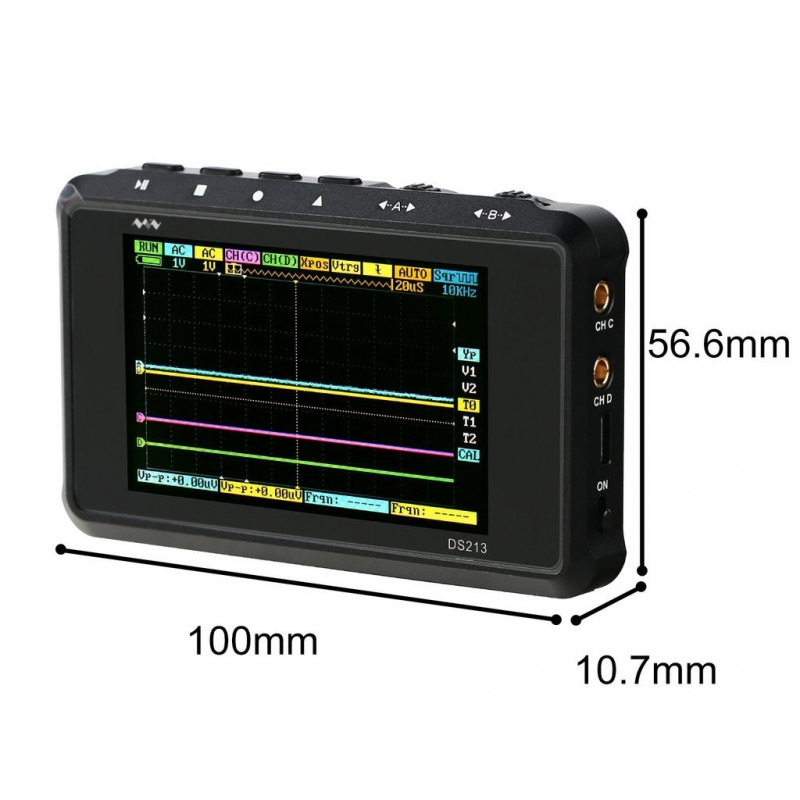

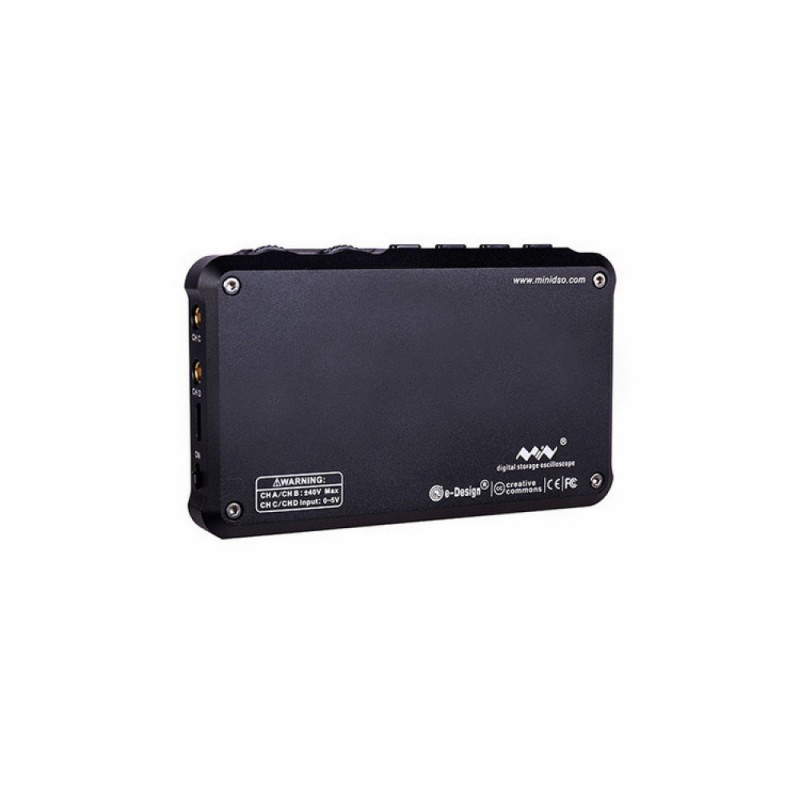

Dimensions (LxWxH)mm	99.5 x 58.5 x 13.5
Certificate	CE, FCC
Horizontal scan time base range	100nS/Div-1S/Div(1-2-5 Step)
Analog channel input sensitivity range	10mV/Div-10V/Div(1-2-5 Step)
Digital channel standard input impedance	100K
Digital channel maximum input voltage	5V
Trigger Type	Edge trigger, Pulse width trigger
Trigger mode	Auto,Normal,Single,Slow
Measurement signal	Signal frequency, period, duty cycle, positive pulse width, negative pulse width, voltage peak-to-peak value, effective value, average value, maximum value, the minimum value
Signal source	0Hz ~ 8MHz square wave, 10Hz ~ 20KHz sine wave/triangle wave / sawtooth wave

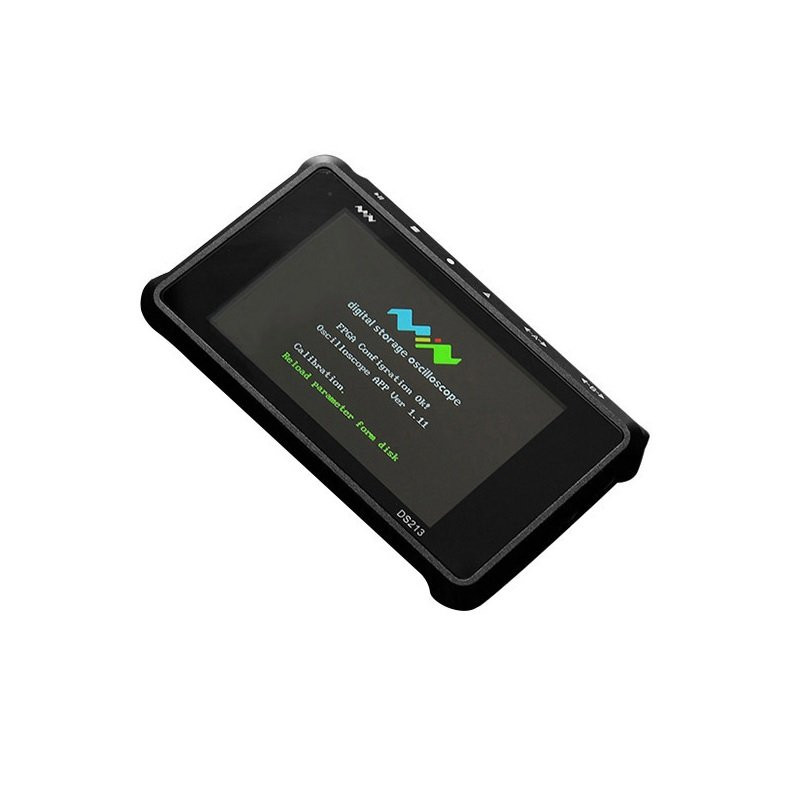

Display	Color TFT LCD display (resolution 240400)
Storage	Built-in U disk storage capacity of 8MB, can store waveform data and waveform images
Shipment Weight	150 gm
