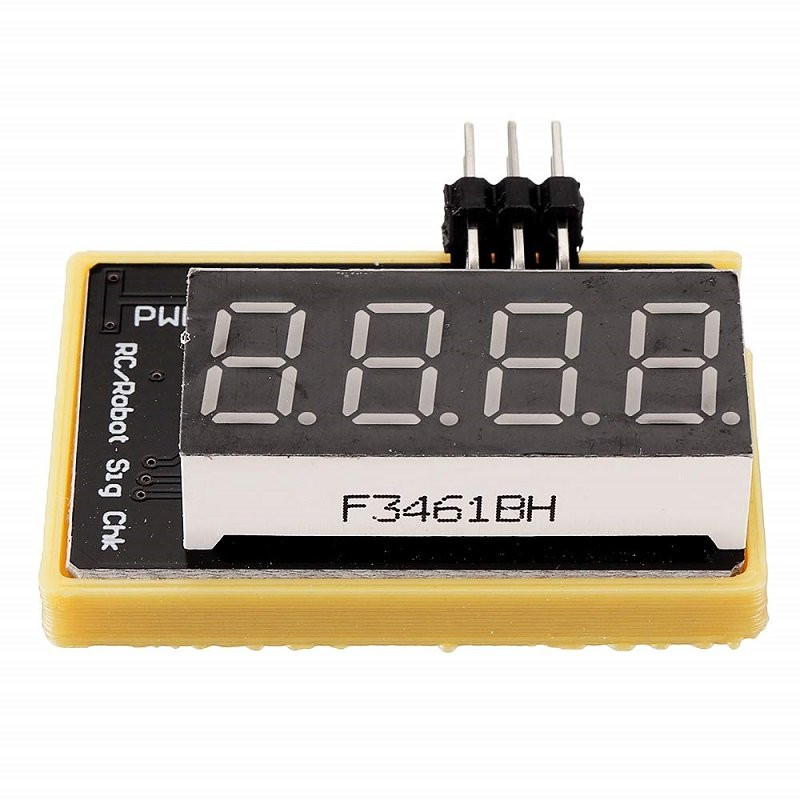

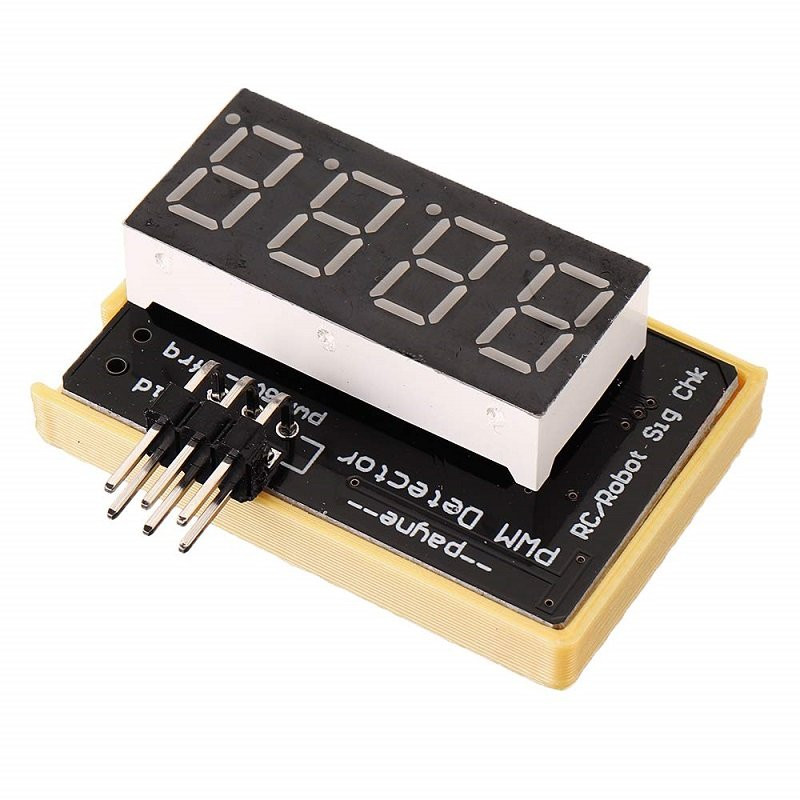

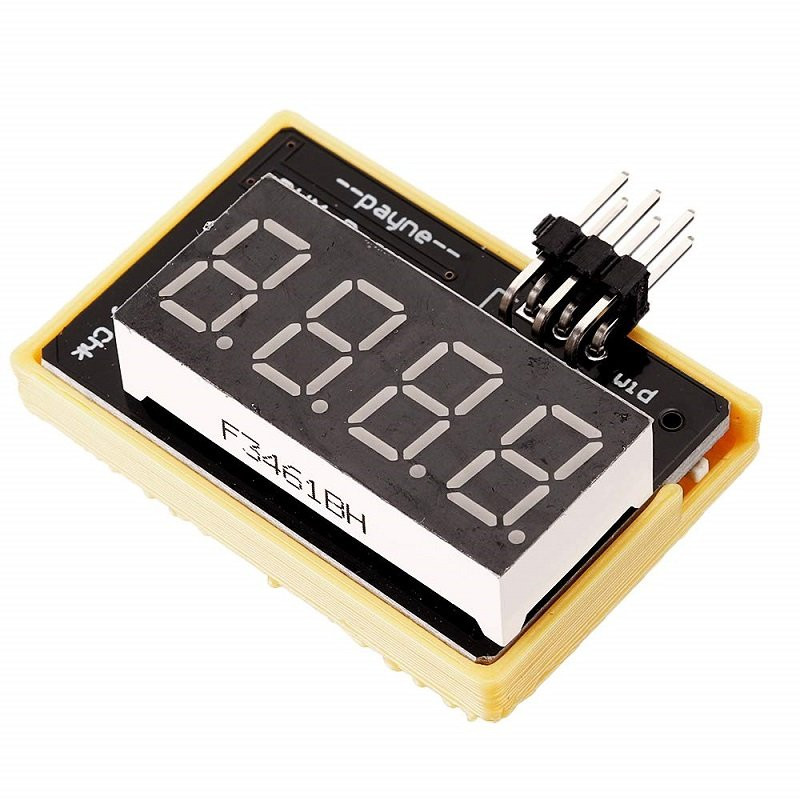

This is a PWM detector, displays the pulse width and frequency of PWM(slide the switch to select), accurate reading, quick display update can analyze the problem of accurate positioning. Range 50-9950us (the pulse width of the remote controller is generally 1000-2000us, and the robots pulse width is 500us-2500us).
Can be used as see-saw testing of remote control( with it you can do it by yourself without others help). DisplayNO when no signal(when it losses thePWM signal more than the 70s, it will be regarded as no signal). With +- for anti-reverse connection.
Features:
- Upgraded PWM tester, smaller and better performance.
- For the testing receiver, fight controller, and servo.
- It Can analyze the problem of accurate positioning.
Package Includes:

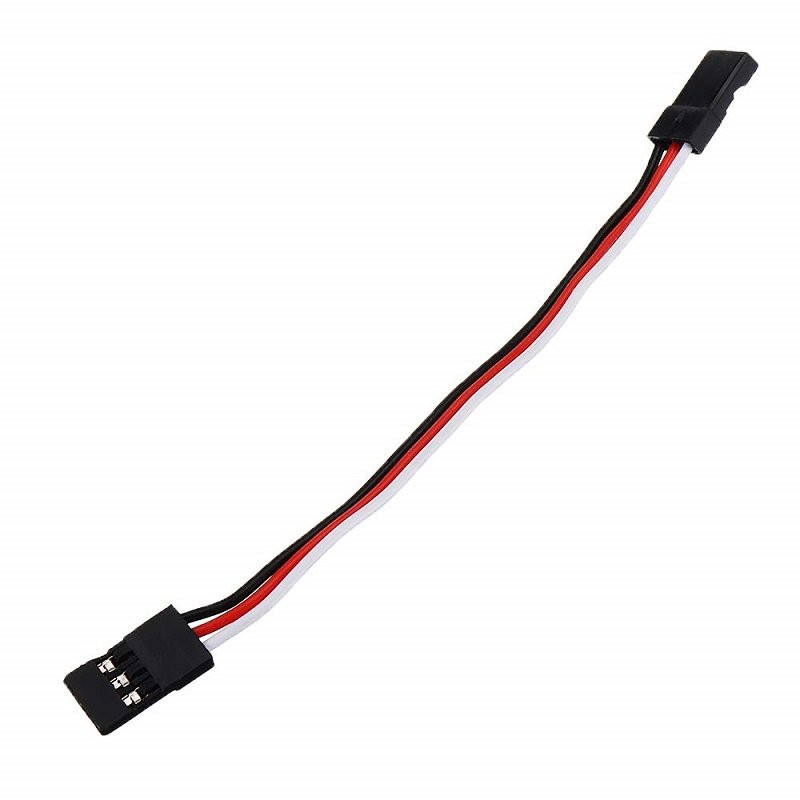

1 x PMW Tester with cable
Specifications :-
| Input Voltage (V) | 3.6 ~ 5.8 |
| Range | 50-9950us |
| Length (mm) | 37 |
| Width (mm) | 24 |
| Height (mm) | 12 |
| Weight (gm) | 20 |
| Shipment Weight | 0.025 kg |
| Shipment Dimensions | 4 3 2 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 470.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

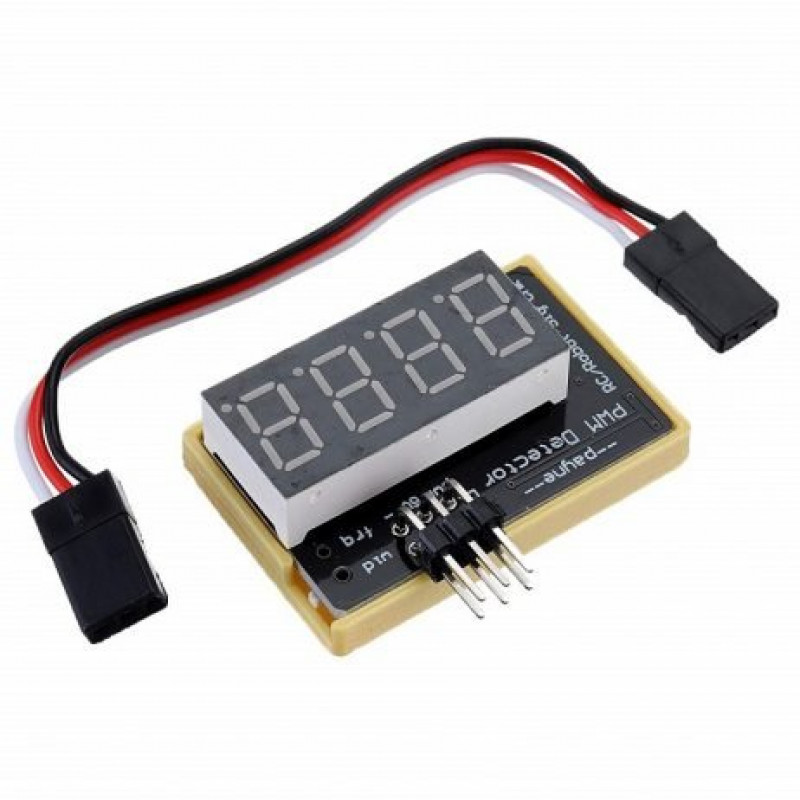

PWM Tester with Cable
- Product Code: EC-7601
- Availability: Out Of Stock
-
Rs.399.00
- (Excluding 18% GST)
