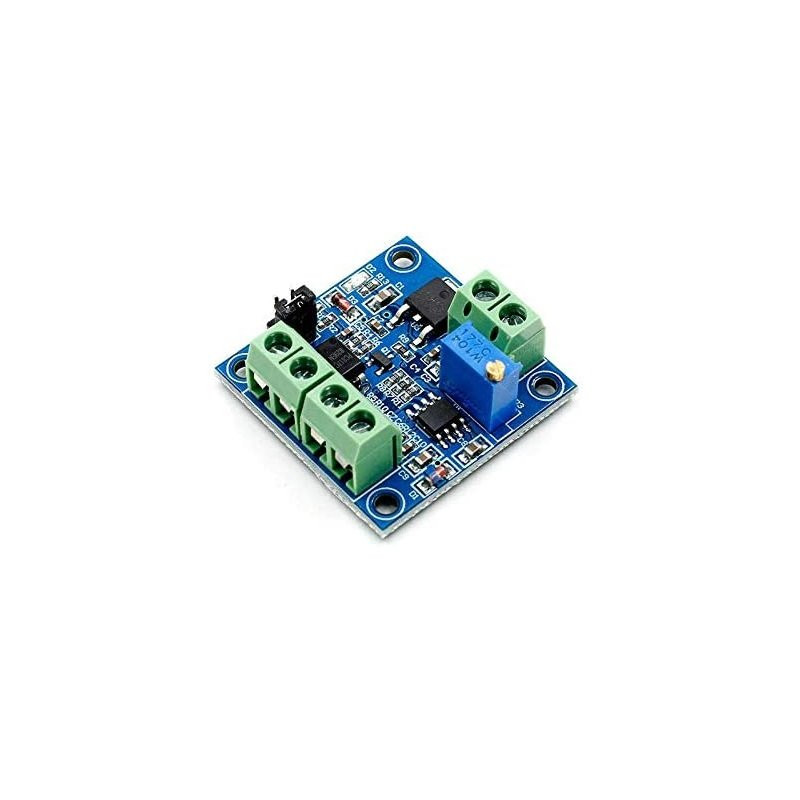

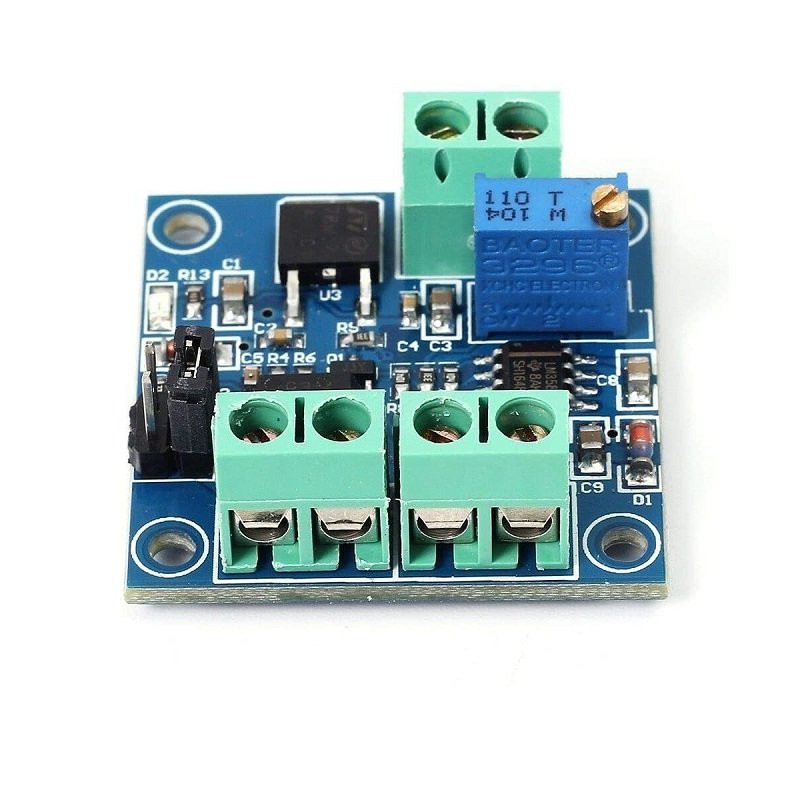

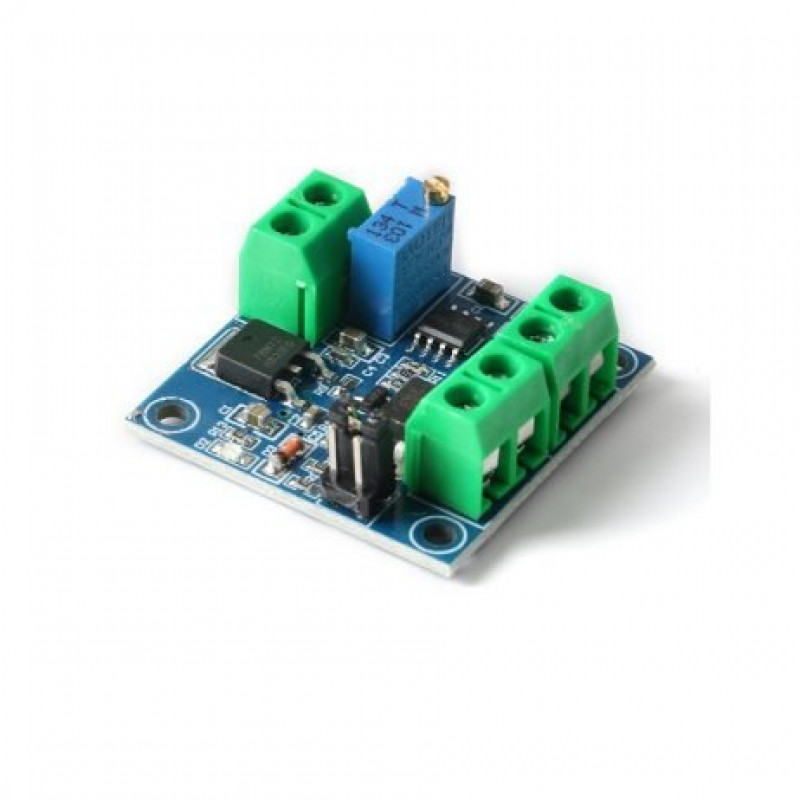

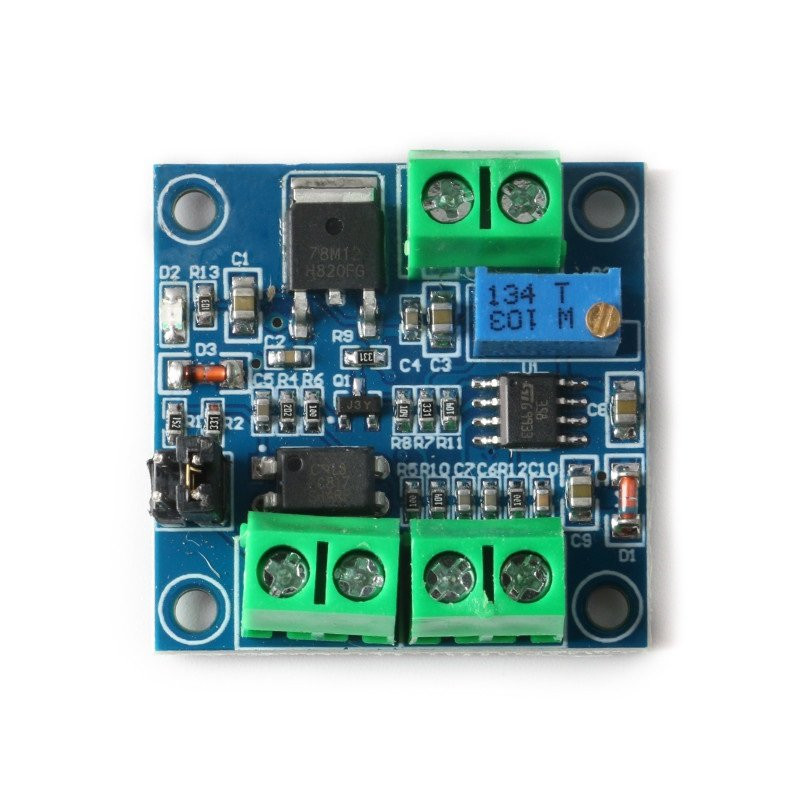

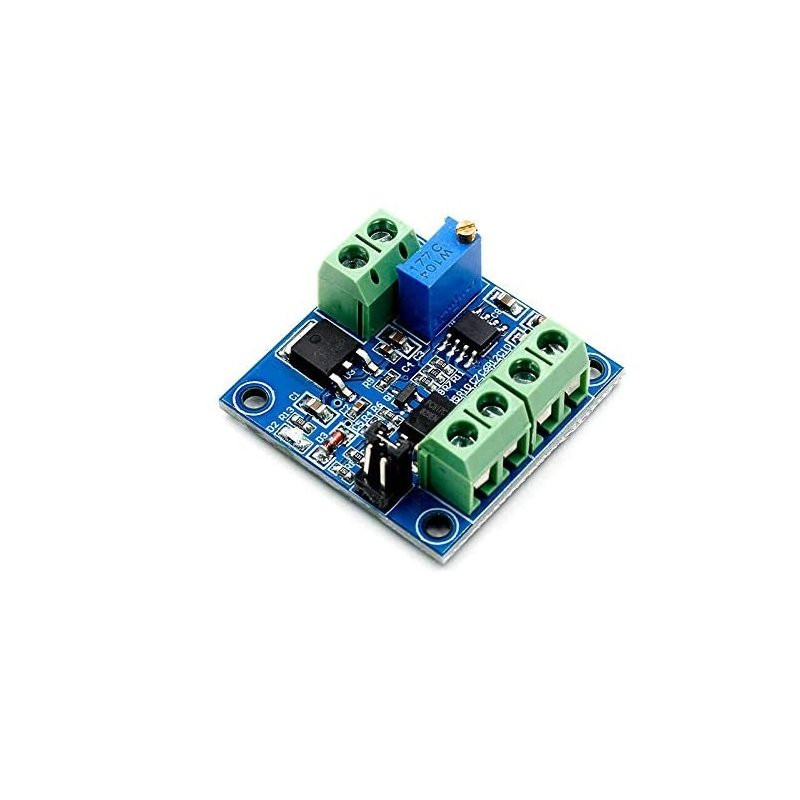

PWM to Voltage 0-100% to-10V Converter Module
This Module can convert PWM digital signals into 0 to 10V analog signals. This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage. Module size is small, easy to apply in different places.

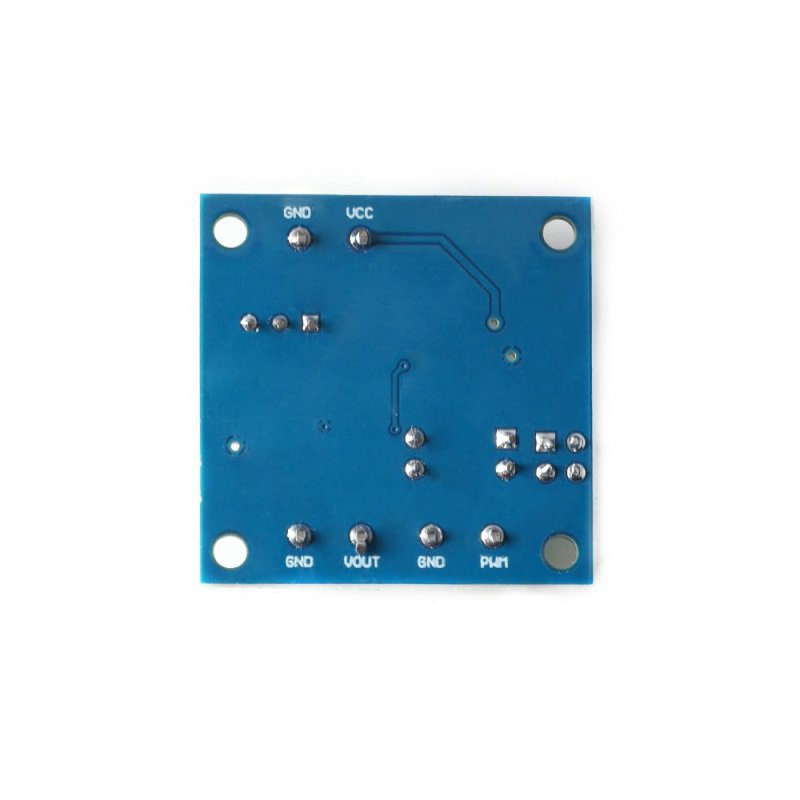

Pin Definition:
- VCC -Working power 12-30V
- GND -Ground
- PWM Input PWM signal positive
- GND -Input voltage ground
- VOUT-Output voltage: 0-10V
- GND Output ground
Application:
- This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage
Features:
- Using single-chip embedded technology
- Easy to operate, can be fine-tuned by potentiometer
- Select the PWM signal input level range through the short cap
- The module is small, easy to carry and use
- PWM signal input level range: The peak of 4.5V to 10V level. The short cap installs in 5V. This level is used for the normal controllers or 5V MCU. Insert jumper in the inner side.
- PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap installs in 24V. This level is used for normal PLC controllers. Insert jumper in the outer side.
Package Includes:
1 x PWM to Voltage 0-100% to-10V Converter Module
Specifications :-
| Conversion range | 0% -100% PWM to 0-10v voltage |
| PWM signal reception frequency range | 1KHz 3KHz |
| Operating voltage | 12V 30V DC |
| Allowable error | 5% |

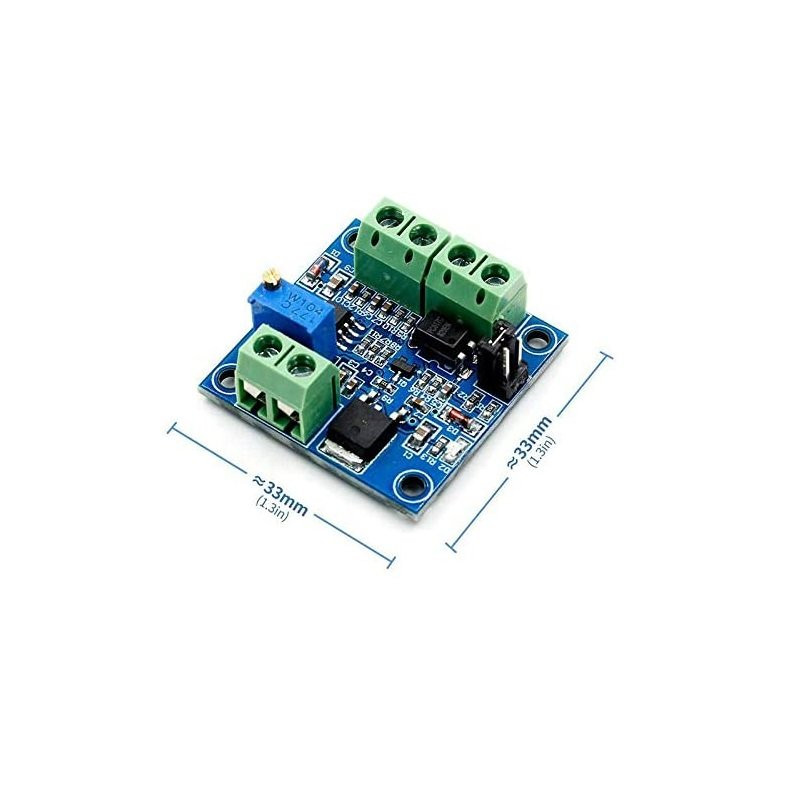

| Length (mm) | 33 |
| Width (mm) | 33 |
| Height (mm) | 20 |
| Weight (gm) | 20 |
| Shipment Weight | 0.025 kg |
| Shipment Dimensions | 4 4 2 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 274.94 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
PWM to Voltage 0-100% to-10V Converter Module
- Product Code: EC-7602
- Availability: 11
-
Rs.233.00
- (Excluding 18% GST)
