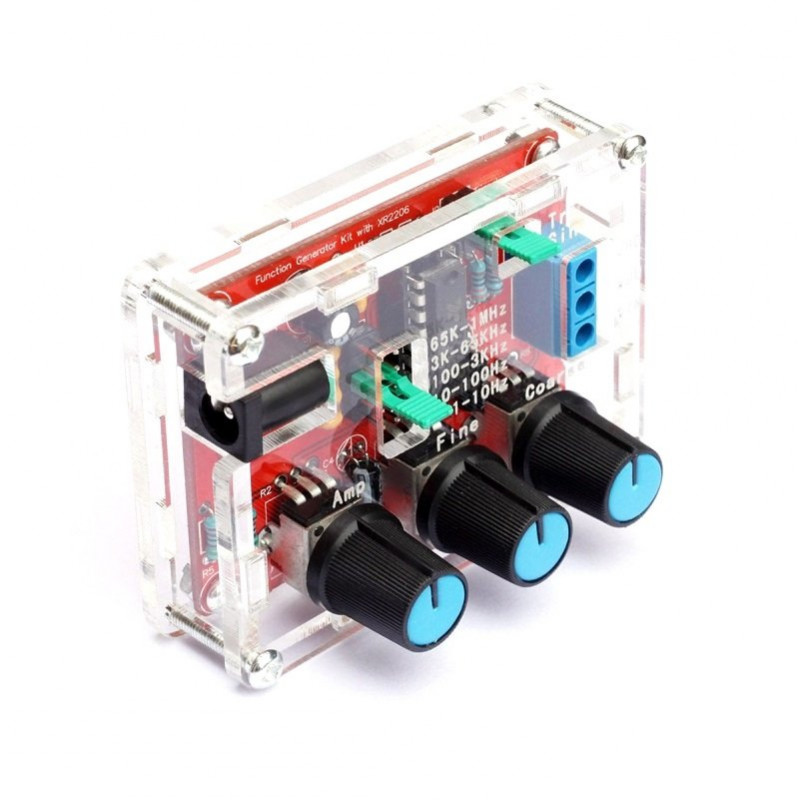

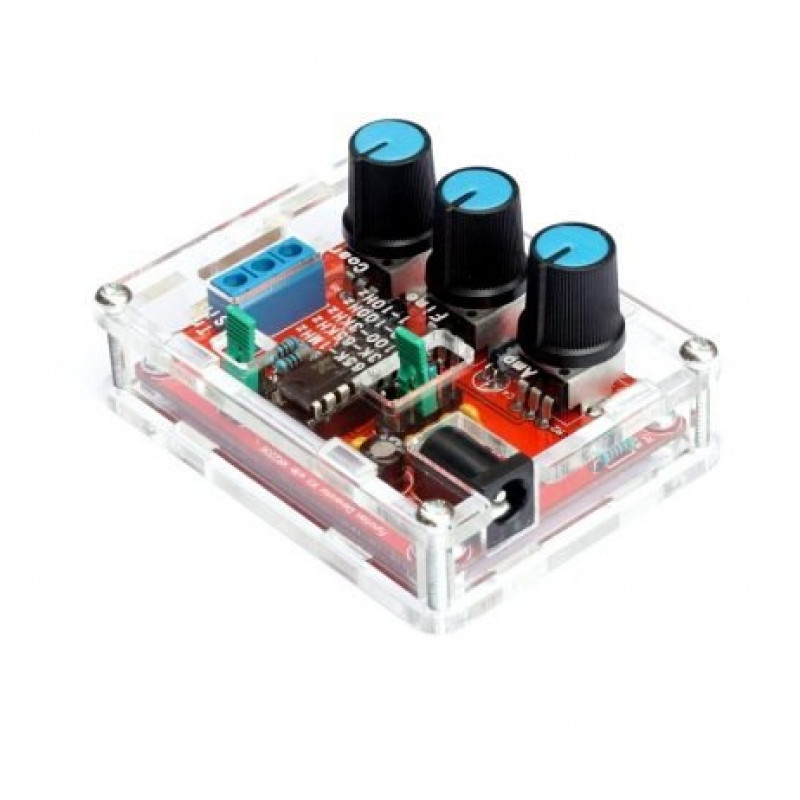

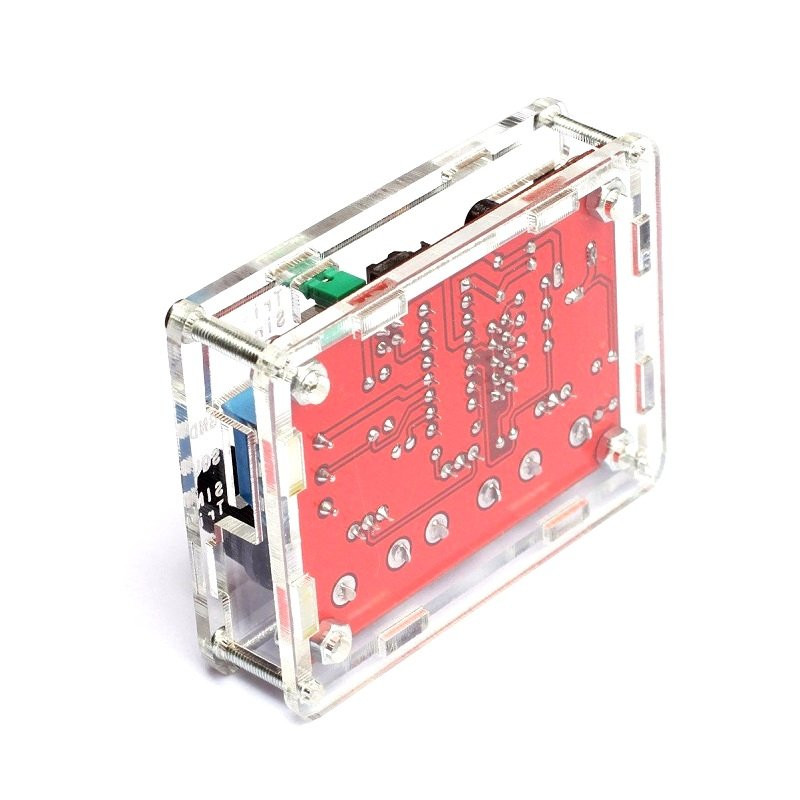

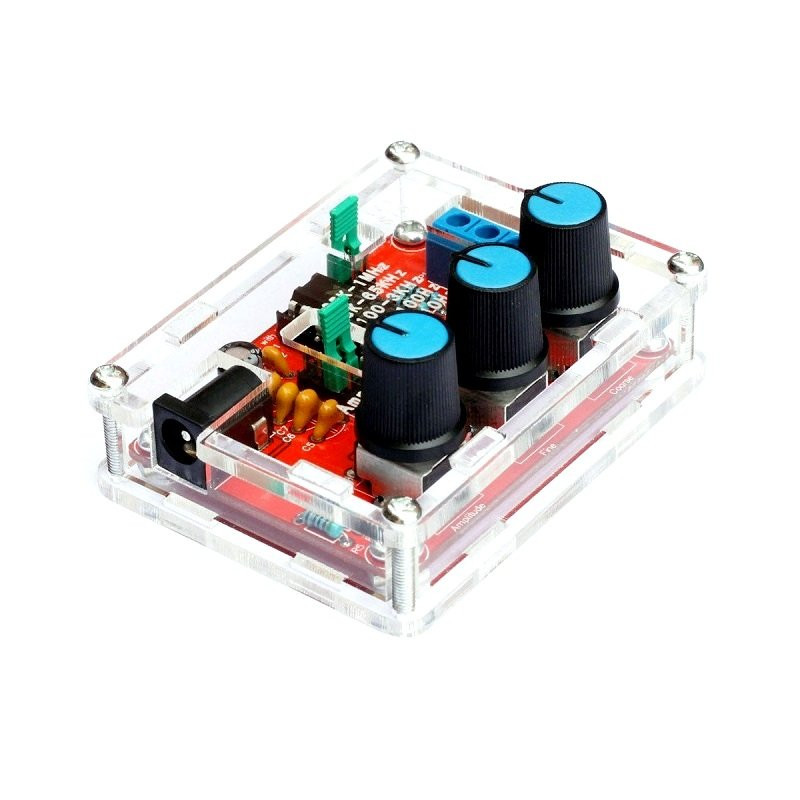

This is a Function Generator Kit that comes pre-soldered and with a compatible case. This function generator works on supply voltage from 9V to 12VDC, it can generate square, sine, and triangle waveform with frequency from 1Hz to 1MHz. The amplitude of the waveforms can be in the range of 0-3VDC.
Features:
- High-Resolution Signal Generator.
- Can Generate Sine/Triangle/Square Waves.
- Adjustable Frequency and Amplitude.
- Frequency Adjustment Supports Coarse and Fine Tuning.
Package Includes:
1 x XR2206 High Precision Signal Generator

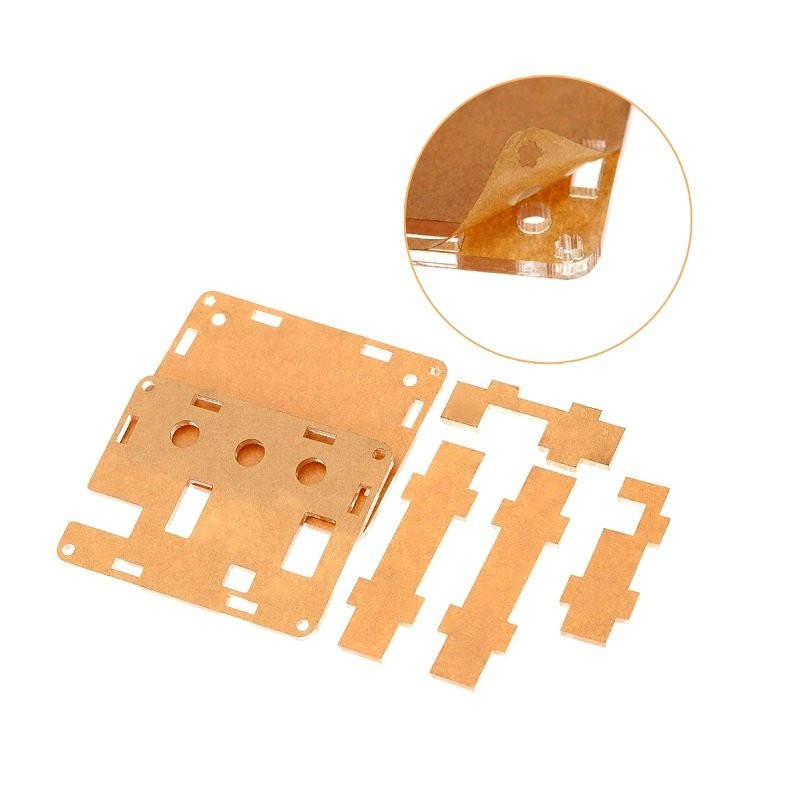

1 x Acrylic Case For Signal Generator
Specifications :-
| Model | XR2206 |
| Operating Voltage (VDC) | 9-12 |
| Operating Frequency | 1Hz-1MHz |

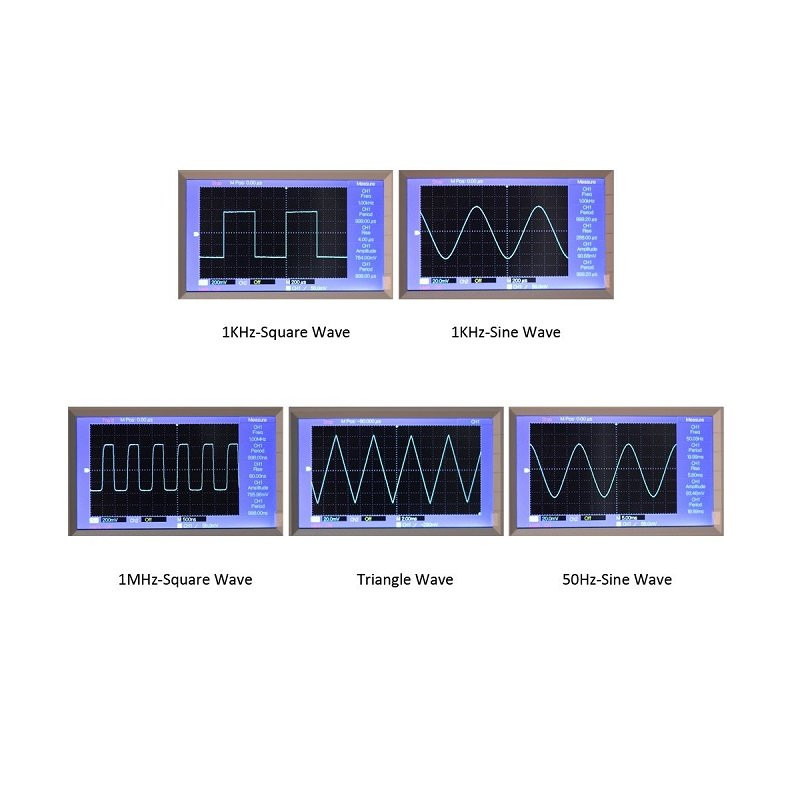

| Supported Waveforms | Sine, Square, Triangle |
| Amplitude of Waveform | 0-3VDC |
| Distortion | Less than 1% |
| Flatness | +0.005dB |
| Shipment Weight | 0.08 kg |
| Shipment Dimensions | 3 2 1 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 636.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
XR2206 High Precision Signal Generator
- Product Code: EC-7614
- Availability: 60
-
Rs.539.00
- (Excluding 18% GST)
