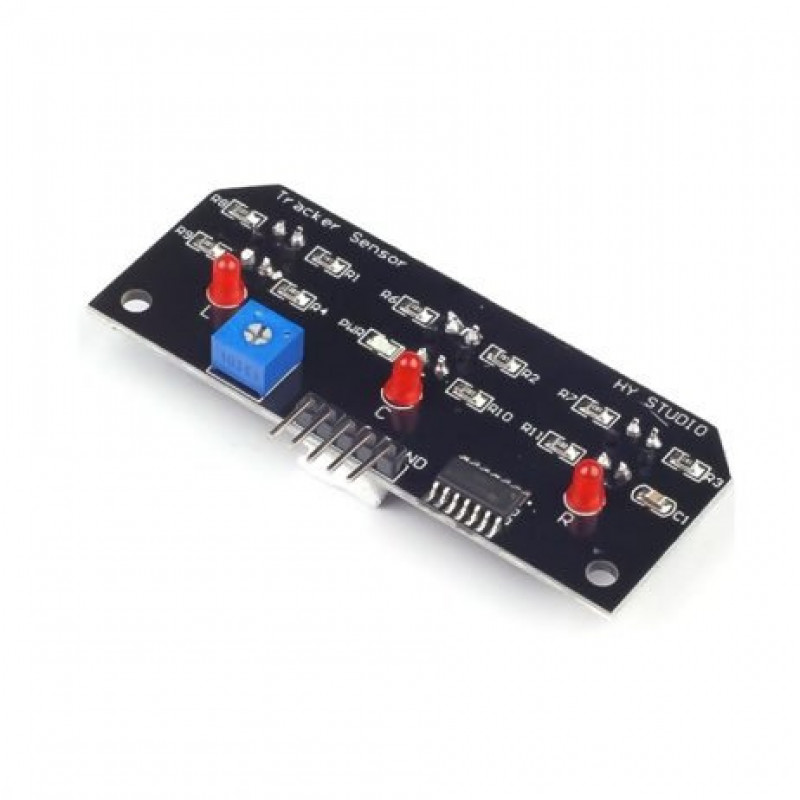

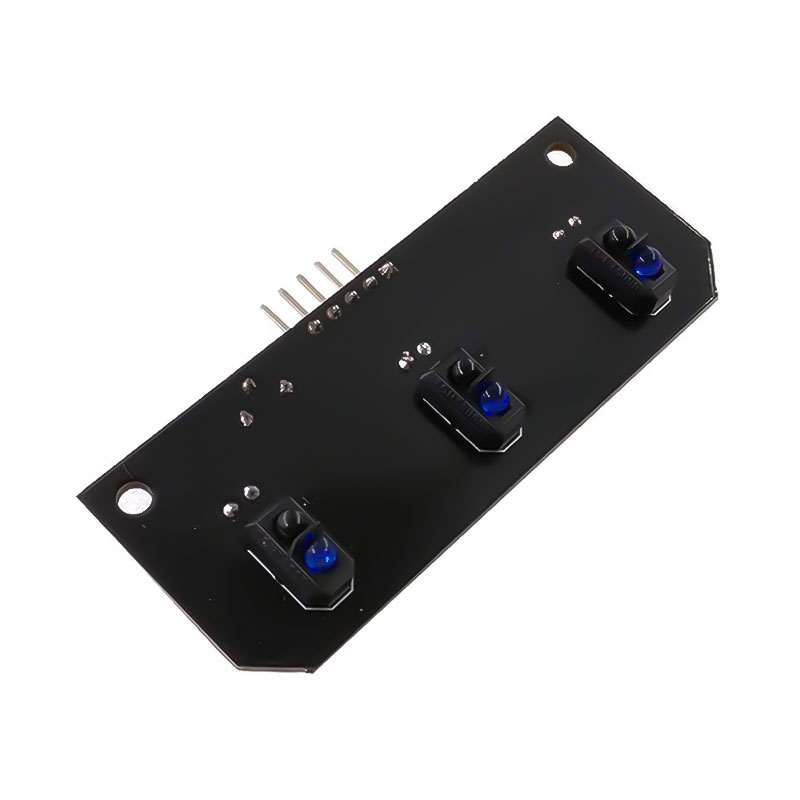

It is a 5V 3 Channel Infrared Line Track Tracking Tracker Sensor Module For Arduino AVR ARM PIC.
Pin Definition:
  1. VCC Voltage Supply ( 5 V)
  2. GND Ground
  3. L Signal from L infrared sensor (high / low)
  4. C Signal from C infrared sensor (high / low)
  5. R Signal from R infrared sensor (high / low)

Features:

  1. 3 channel tracking sensors, must have in your Arduino DIY Robot Projects;
  2. Uses infrared light detection, anti-jamming capability, using CTRT5000 sensor, adjustable sensitivity, stable performance;
  3. Working voltage : 5V
  4. With lights, a fixed bolt hole for easy installation

Package Includes:

1 x 3 Channel Path Tracing Module



Specifications :-

Working Voltage

5V

Length (mm)

68

Width (mm)

33

Height (mm)

8

Weight (gm)

10

Shipment Weight

0.015 kg

Shipment Dimensions

10 6 2 cm

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 194.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

3 Channel Path Tracing Module

  • Product Code: EC-7539
  • Availability: 8
  • Rs.186.00
  • (Excluding 18% GST)
