Features:

  1. Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
  2. Size: in the control panel:42 x 38 x 12mm (length x width x height).
  3. Small forward: 25 x 12 x 12mm (length x width x height).
  4. Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, for the negative power is ground)
  5. The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

Package Includes:

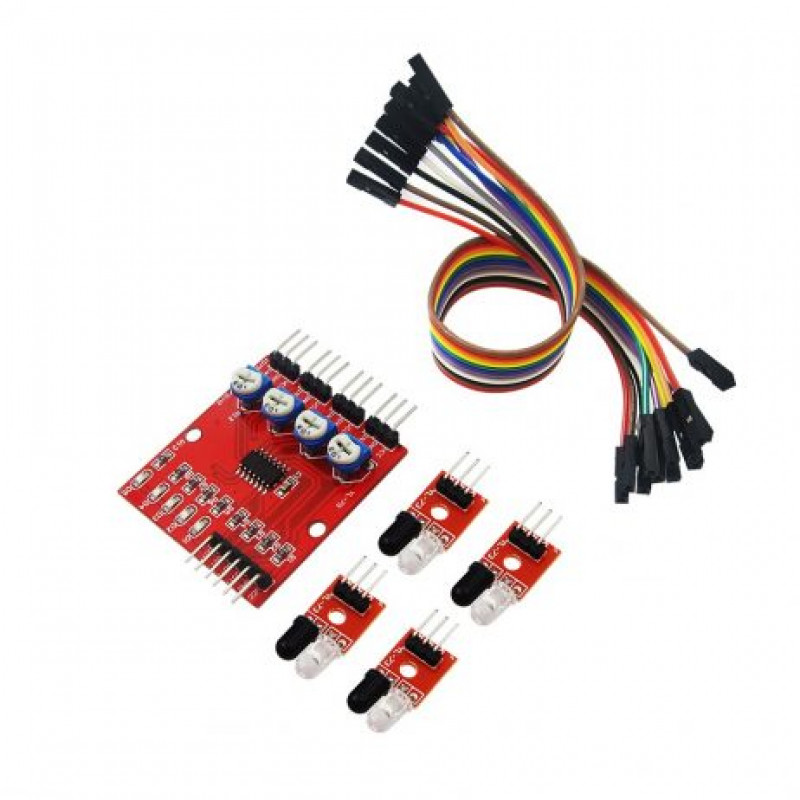

1 x Tracking Module (Hollow Board + Small Plate Forward).

12 X Male to Male Dupont Lines (20 cm long).



Specifications :-

Working voltage (V)

3.3 ~ 5

Working current (A)

Above 1A

Operating Temperature ()

-10 ~ +50

Mounting hole

M3

Detection range

1mm ~ 60 cm adjustable.

Shipment Weight

0.025 kg

Shipment Dimensions

10 8 2 cm

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

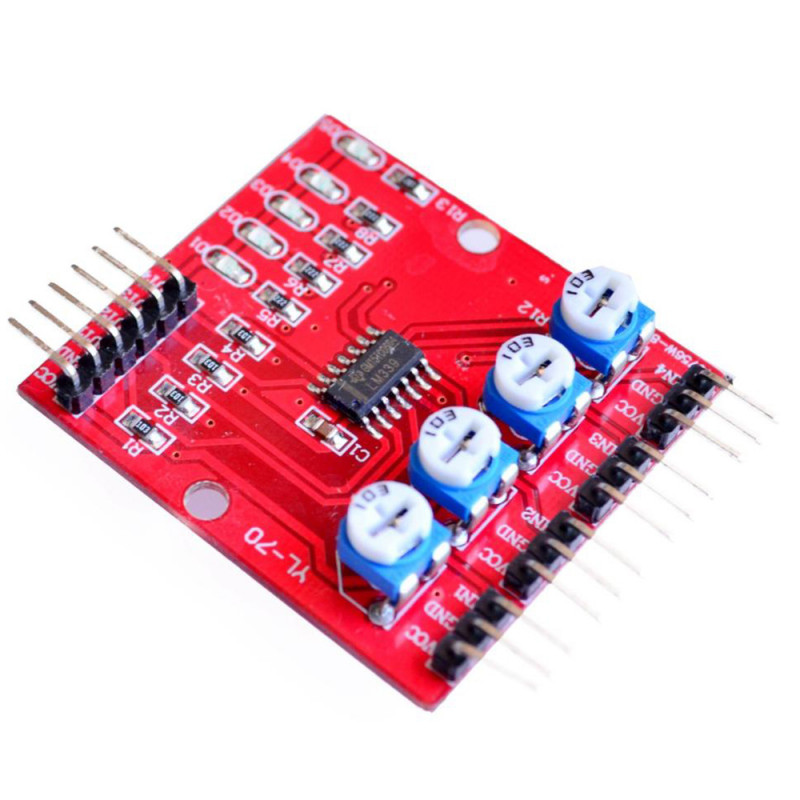

4 Channel Infrared Tracing Module

  • Product Code: EC-7540
  • Availability: 22
  • Rs.123.00
  • (Excluding 18% GST)

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 9 0% 123.0000
    10 - 24 17% Rs.102.00
    25 - 49 19% Rs.100.00
    50 - 99 20% Rs.98.00
    100+ 23% Rs.95.00
