The 50kg Half-bridge Experiments Body Scale Load Cell Sensor is measuring; the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms); and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.
The sensor can be used with the following three methods:-
- Using a sensor with an external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for an external resistor.
- The uses of only two full-bridge sensors measuring range are the range of the two sensors and: 50kgx2 = 100kg.
- The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg.
Features of 50kg Half-bridge Experiments Body Scale Load Cell Sensor:-
- Internal 1000Ohm half-bridge strain gauge load cell, the range is 50kg, half-bridge structure.
- Widely used in hopper scales, platform scales, platform balance, belt scales, and other electronic weighing devices.
- This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends the signal via the red signal wire.
- Alloy Steel wired weighing load cell, high accuracy, simple structure, simple installation.
You can use multiple load sensors simultaneously to increase the capacity range, Parallel use to add additional capacity.
Specifications of 50kg Half-bridge Experiments Body Scale Load Cell Sensor:-
|Output Sensitivity (mv/v)|
|Input Resistance ()|
|Insulation Resistance (M)|
|Cable Length (cm)|
1 x 50kg Half-bridge Experiments Body Scale Load Cell Sensor.
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 86.14 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.

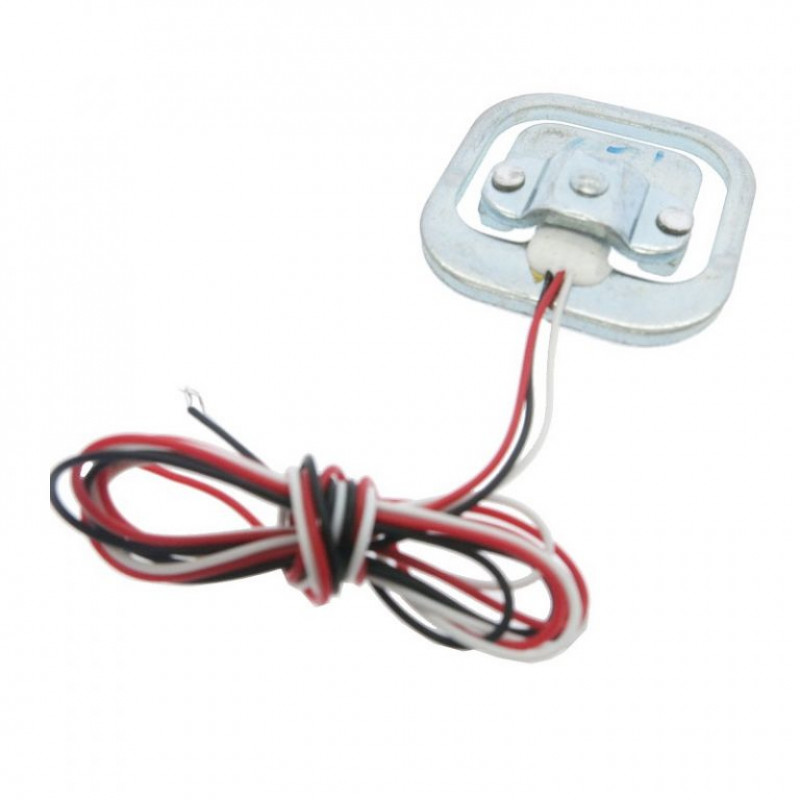

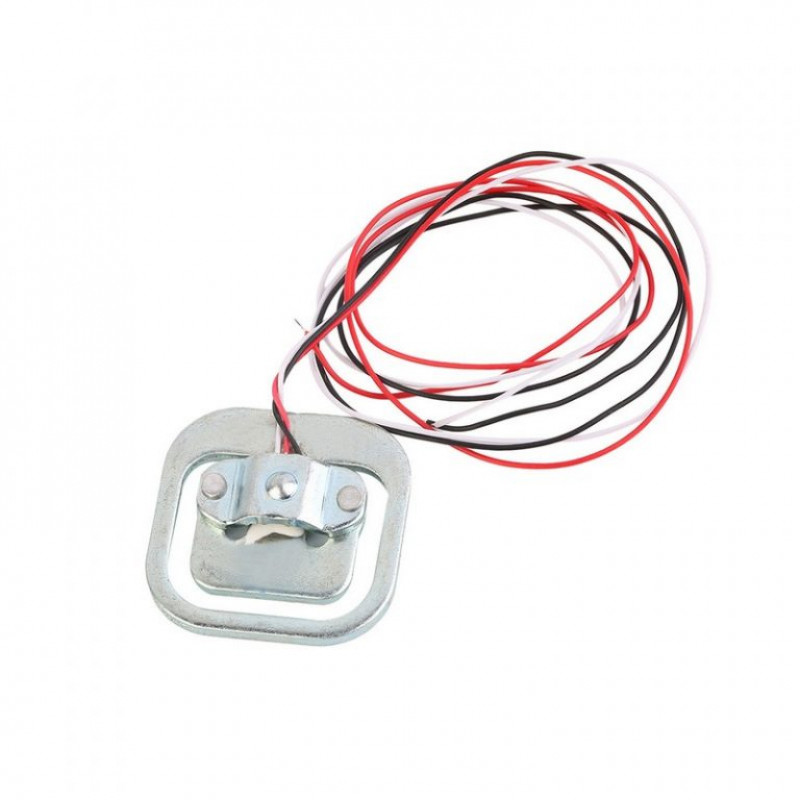

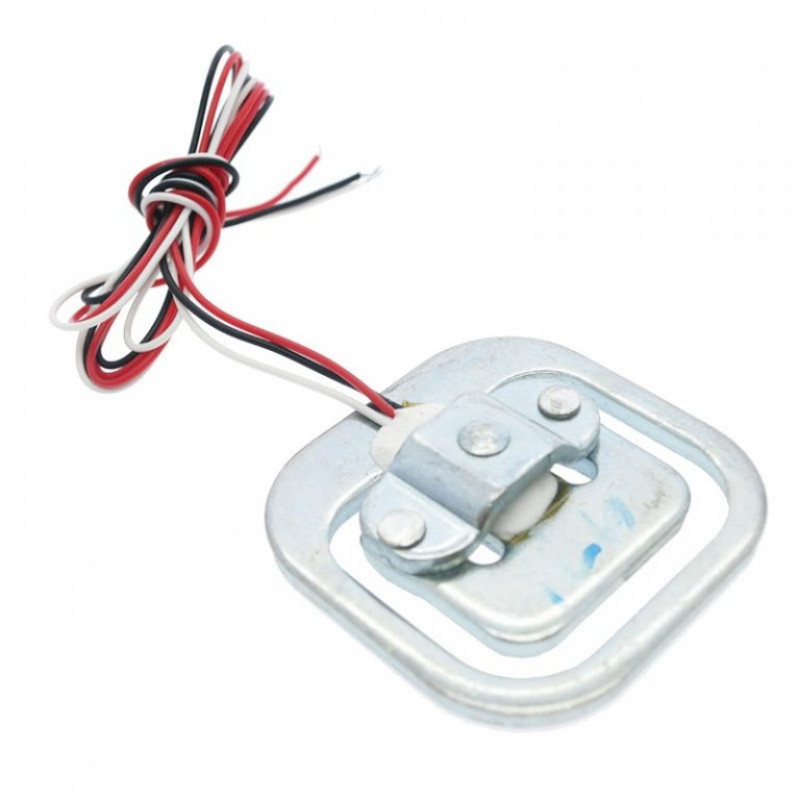

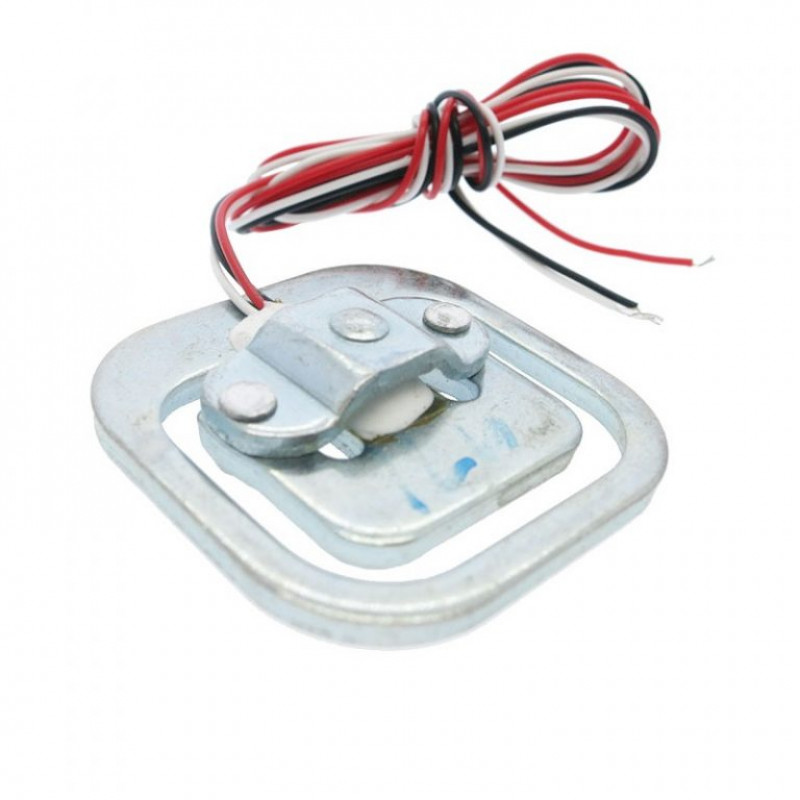

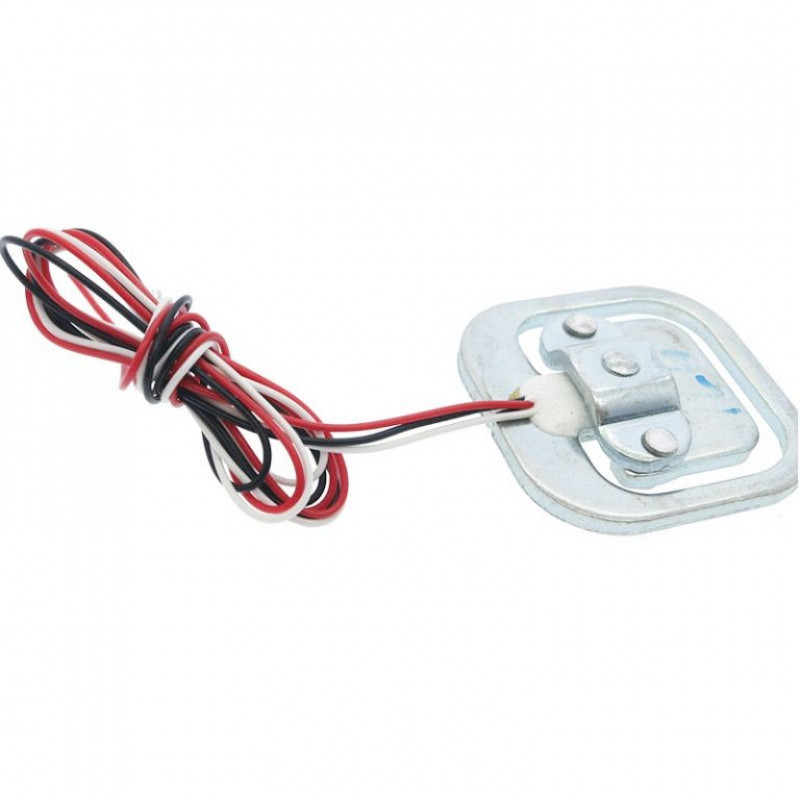

50kg Half-bridge Experiments Body Scale Load Cell Sensor
- Product Code: EC-4746
- Availability: 362
- (Excluding 18% GST)
Select Quantity Discount Price per piece 1 - 9 0% 42.0000 10 - 24 2% Rs.41.00 25 - 49 5% Rs.40.00 50 - 99 7% Rs.39.00 100+ 10% Rs.38.00
