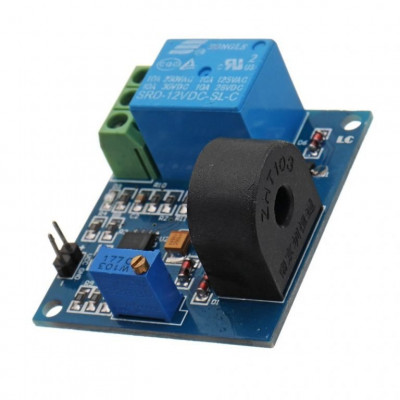

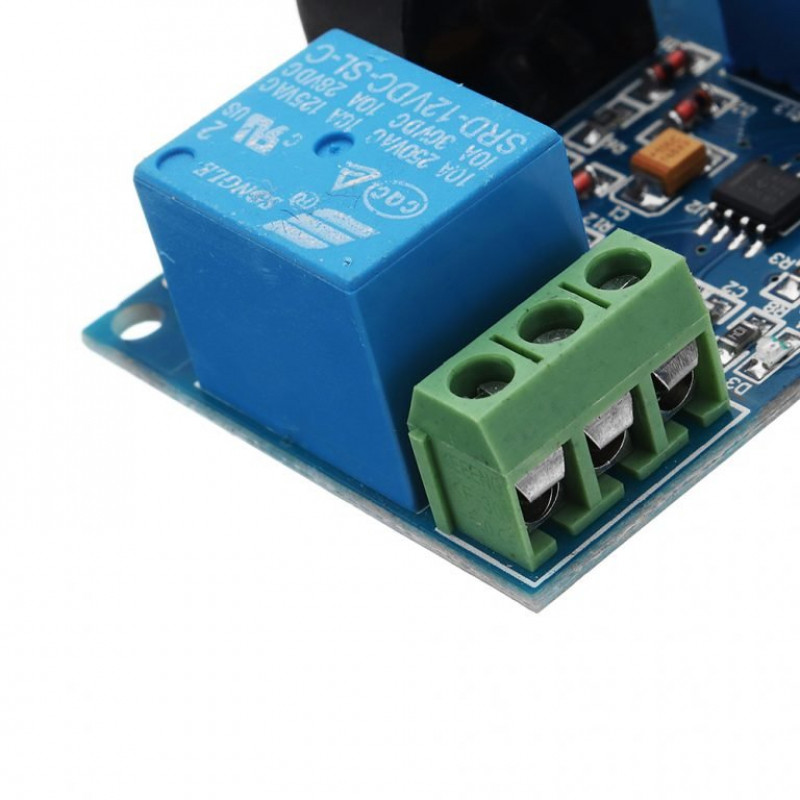

LC 5A 12V Overcurrent Protection AC Current Detection Sensor Module uses a current transformer to collect the AC signal to achieve the relay over-current signal output within 0-5A. Relay pull while over-current, relay released while not over-current. Users can use the relay COM; NC, NO three ports to control the external circuit on and off, in order to achieve over-current protection.


  1. Current detection resolution can change the parameter of resistance parameters;
  2. Output over-current switching signal output;
  3. The over-current signal setting critical point adjustable.

Using Instructions:

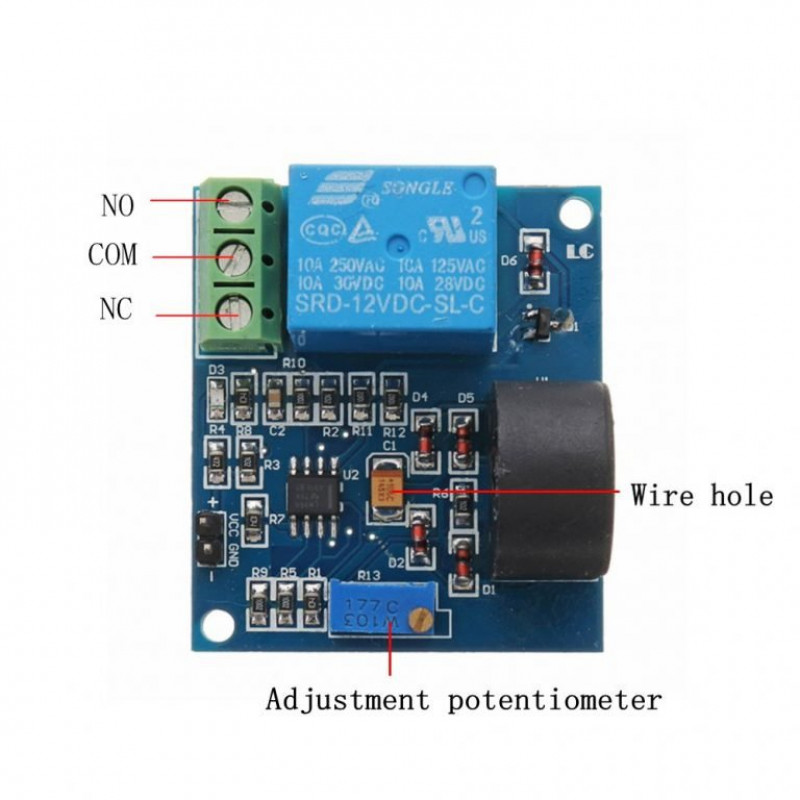

By setting the potentiometer to set the overcurrent protection point, the clockwise adjustment reduces the detection current.
As bellows:
  1. Measured the wire through the current transformer, connect VCC and GND to the DC12V power supply;
  2. Adjust the potentiometer, when you hear the sound of the relay pull (can be measured with a multimeter COM and NO whether was turned on; is connected to the relay means activated), then reduce or cut off the current flowing that through the tested wire; if the relay release at this time that over-current protection point has been identified (available to multimeter COM and NC measurement whether is connected; is connected to the relay means it release);
  3. When reduce or cut off the current flowing through the wire; the relay is not released, will still need to continue to adjust the potentiometer to find the over-current protection point.

Package Includes:

1 x 5A 12V Overcurrent Protection AC Current Detection Sensor Module.

Specifications :-

Operating voltage


Operating current


Operating frequency range

20Hz ~ 400Hz

Output mode

Switch signal output

Maximum detection wire diameter


Mounting hole: hole diameter is 3mm, hole distance


Operating environment

-40 ??~ +85 ??/span>

The current detection range


Dimensions (LxWxH)mm

38 * 44 x 12



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 430.7 (Inclusive of all Taxes)
