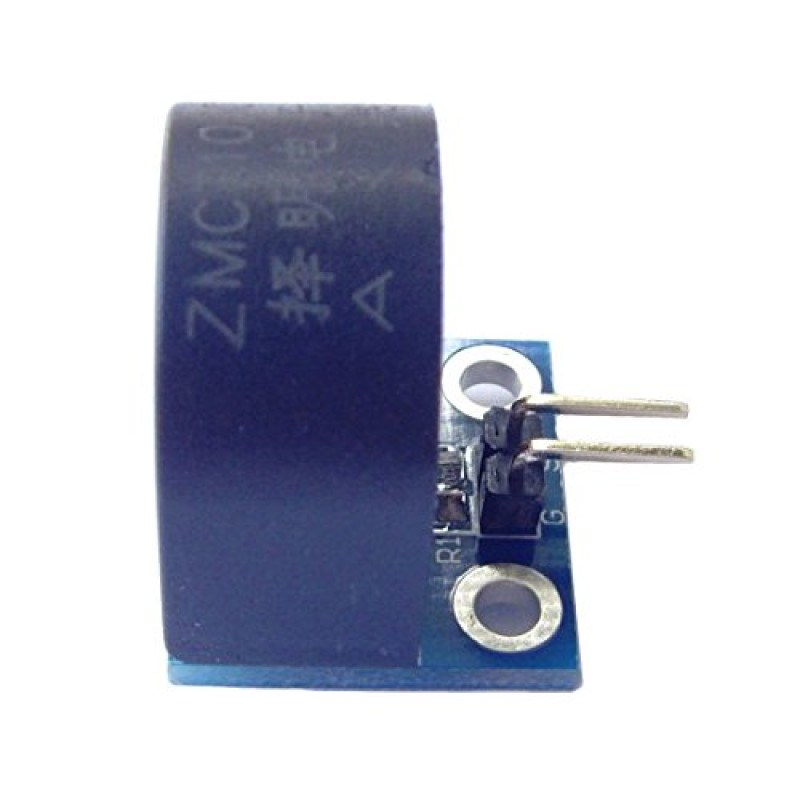

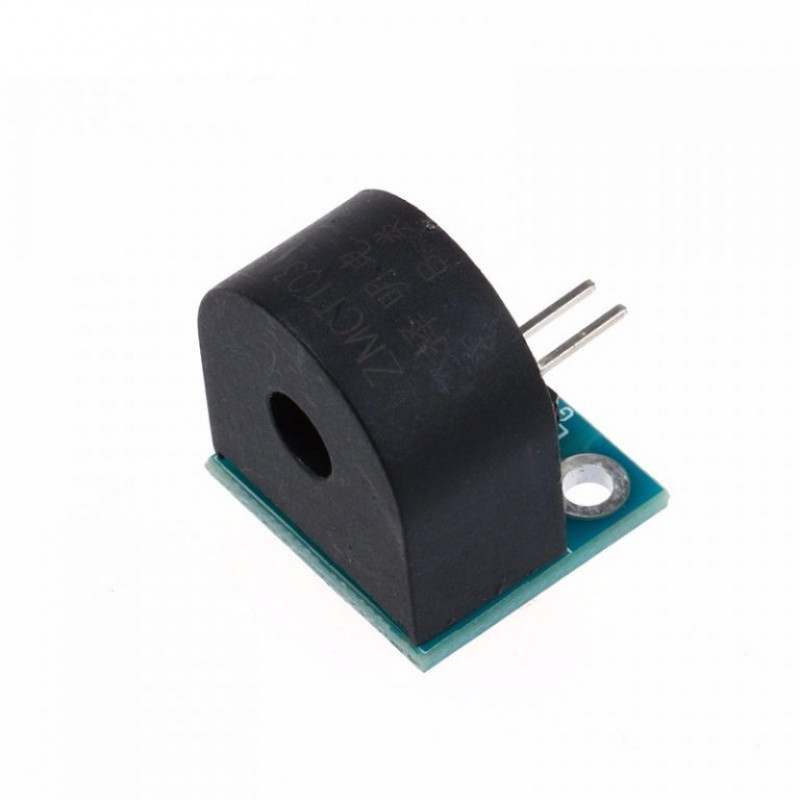

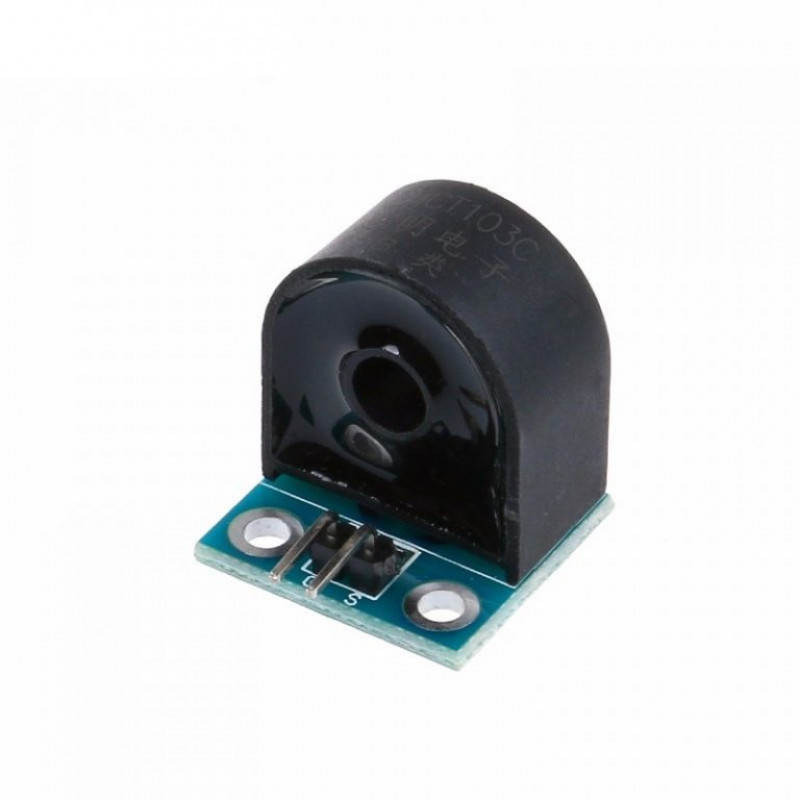

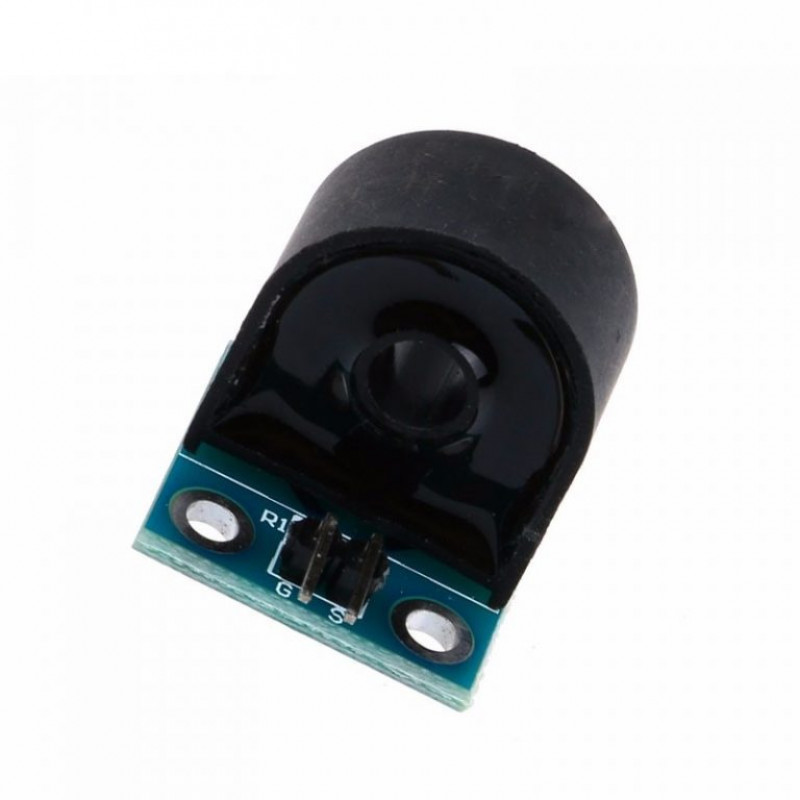

5A range of single-phase ac current sensor module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
It has Onboard sampling resistor and precision micro current transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted.
Features :

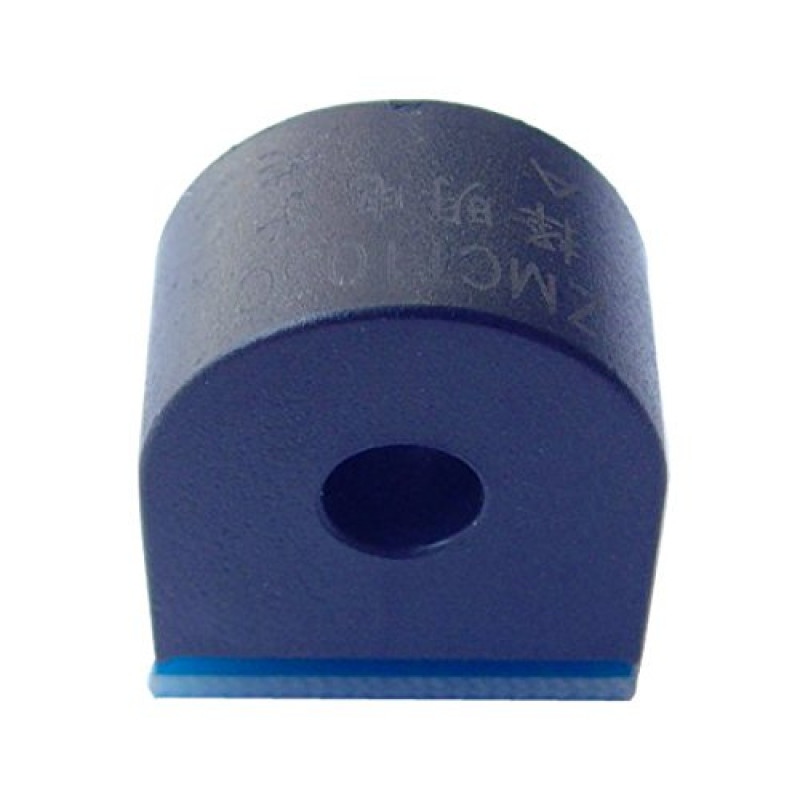

- Onboard precision microcurrent transformer.
- Onboard sampling resistor.
- The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
Specifications:-
| Rated Input Current (A) | 5 |
| Rated Output Current (mA) | 5 |
| The linear range | 0 ~ 10A (100 ohms) |
| Change | 1000: 1 |
| Linearity | 0.2% |
| Precision Rating | 0.2 |
| Sealing material | Epoxy Resin |
| Operating Temperature (C) | -40 to +90 |
| Length (mm) | 18 |
| Width (mm) | 19 |
| Height (mm) | 22 |
| Weight (gm) | 8 |
Package Includes :
1 x5A range of single-phase ac current sensor module.
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 93.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
5A Single Phase AC Current Sensor Module
- Product Code: EC-4745
- Availability: 56
-
Rs.44.00
- (Excluding 18% GST)
