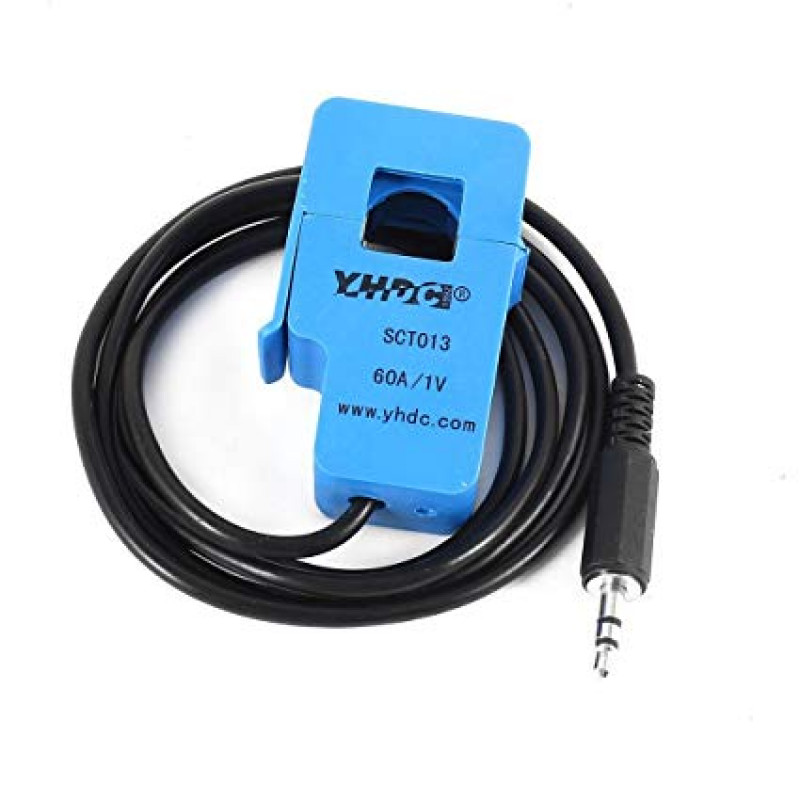

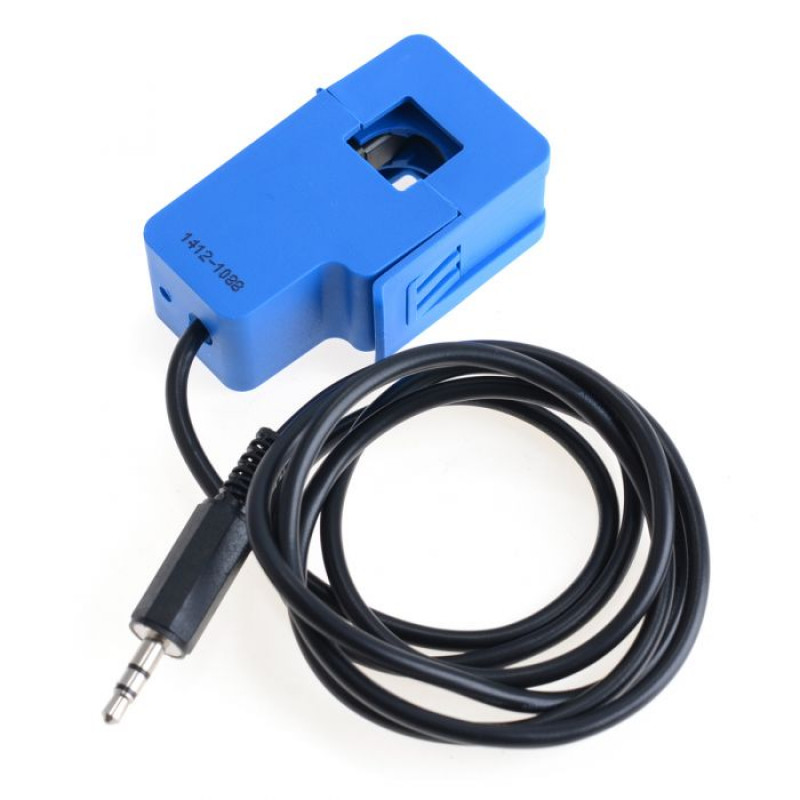

The SCT-013-060 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc.
Applications
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Features :
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor).
Dimensional diagram:
Package Includes:
1 x SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A.
Specifications :-
| Model | SCT 03-013-060 |
| Rated Input (rms) (A) | 60 |
| Max. Input (A) | 75 |
| Rated output (V) | 1 |
| Linearity | <0.2% |
| Accuracy | 1% |
| Work voltage (V) | 660 |
| Frequency range | 50Hz 1KHz |
| Dielectric strength | 3.5KV 50Hz 1min |
| Operating Temperature (C) | -25 ~ 70 |
| Connecting cable length (m) | 1 |
| Length (mm) | 57.5 |
| Width (mm) | 34 |
| Height (mm) | 21 |
| Weight (gm) | 64 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SCT-013-060 60A Non-invasive AC Current Sensor Clamp Sensor
- Product Code: EC-5307
- Availability: 3
-
Rs.572.30
