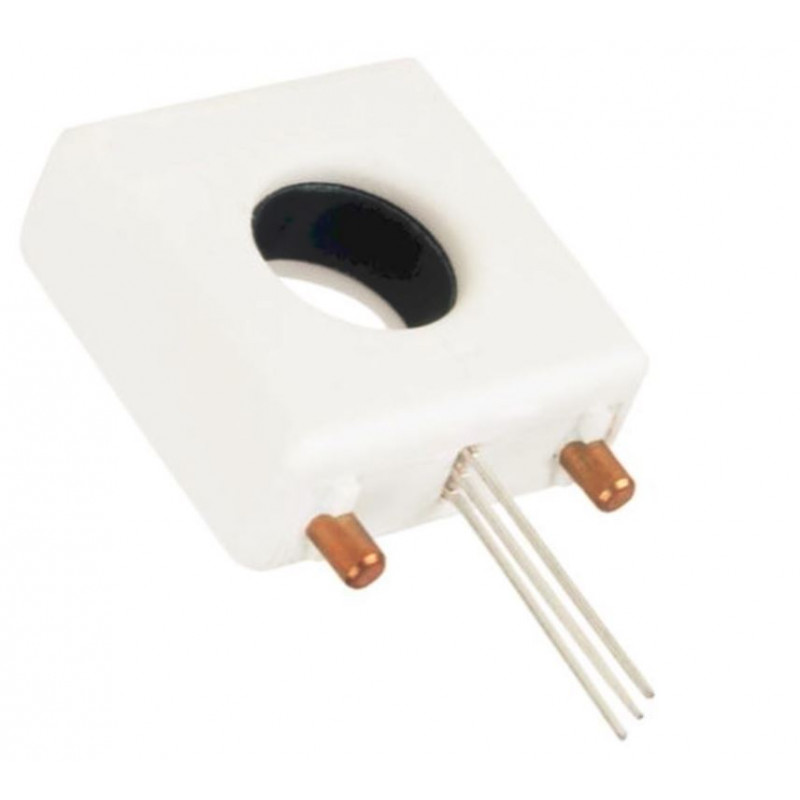

  • WCS1700 - 70A Hall Effect Base Linear Current Sensor

The WCS1700 consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system’s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any current path without breaking or changing original system layout at all. Any current flowing through this hole will generate a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.


Specifications:-

  • Supply Current : 3.5~6.0 mA
  • Supply Voltage : 3.0 ~12 V
  • Bandwidth : 23kHz
  • Conductor Through Hole : 9.0mm2
  • Sensitivity : 33mV/A
  • Temperature Drift : +/-0.5mV/C
  • Operating Temperature : -20~125C
  • Zero Current Volt: 2.5V


Package Includes:-

1 x WCS1700 - 70A Hall Effect Base Linear Current Sensor

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 306.8 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

WCS1700 - 70A Hall Effect Base Linear Current Sensor

  • Product Code: EC-1986
  • Availability: 284
  • Rs.225.00
  • (Excluding 18% GST)
