Flex Sensors are commonly used in Robotic Gloves and other Robotic Control application. It can be used to analyze how much a material is being bent. This flex sensor is 2.2 inch long and has two output leads which acts like a variable resistor. That is the resistance between two pins change based on how much the sensor is bent.  It is commonly used along with another resistor to build a voltage divider circuit and then obtain a variable voltage based on the change in resistance of the sensor.


Features:-

  • Angle Displacement Measurement
  • Bends and Flexes physically with motion device
  • Simple Construction


Applications:-

  • Angle Displacement Measurement
  • Bends and Flexes physically with motion device
  • Possible Uses
  • Robotics
  • Gaming (Virtual Motion)
  • Medical Devices
  • Computer Peripherals
  • Musical Instruments
  • Physical Therapy
  • Simple Construction
  • Low Profile


Specifications:-

  • Flat Resistance: 25K Ohms
  • Life Cycle: >1 million
  • Flex Length : 2.2 inch
  • Temperature Range: -35°C to +80°C
  • Resistance Tolerance: ±30%
  • Bend Resistance Range: 45K to 125K Ohms (depending on bend radius)
  • Power Rating : 0.50 Watts continuous, 1 Watt Peak


Package Includes:-

1 x Flex Sensor - 2.2 inch

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 737.5 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

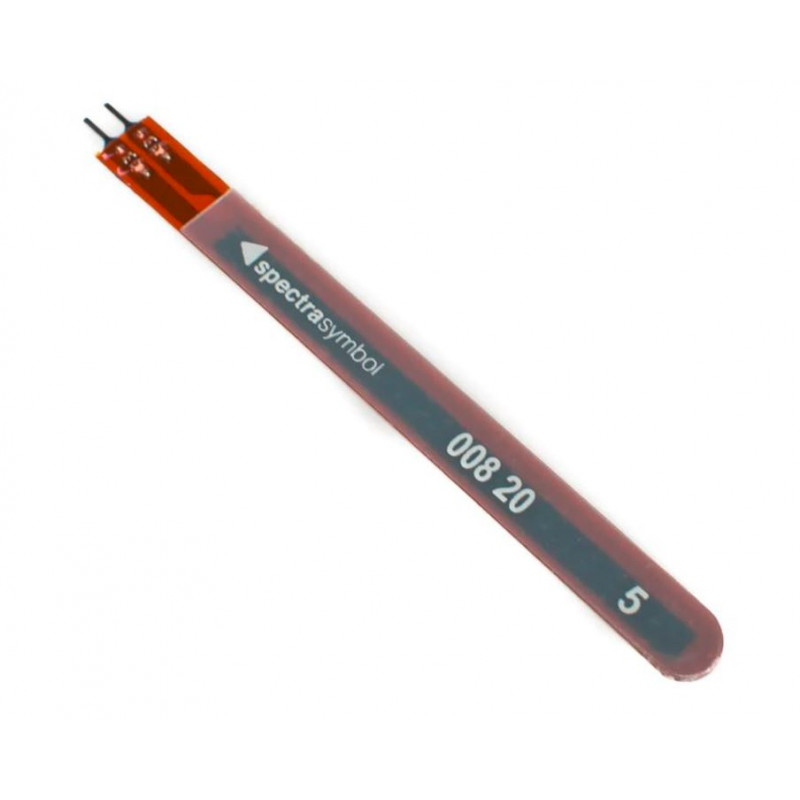

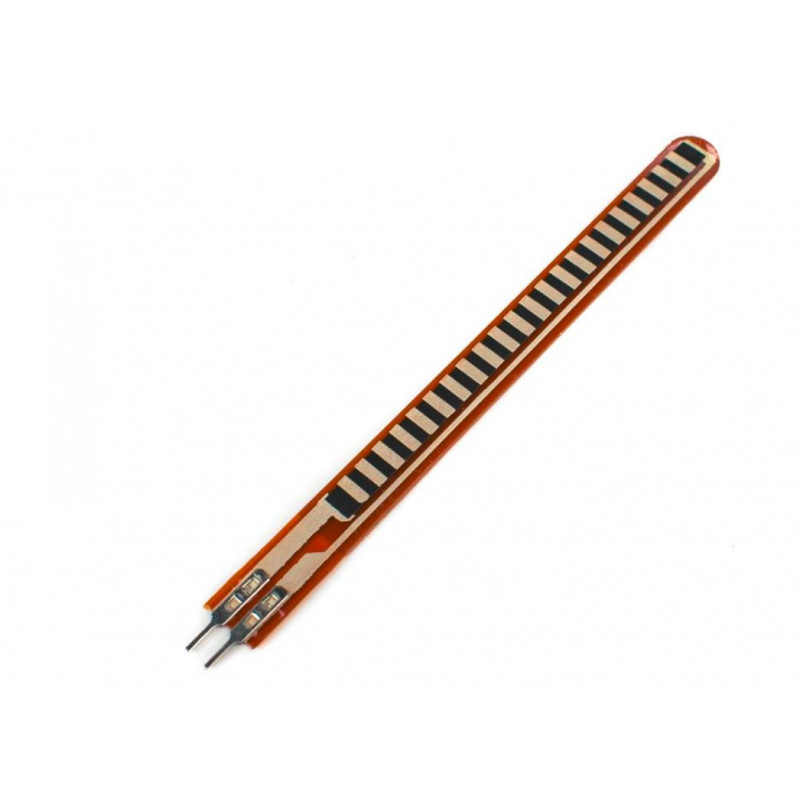

Flex Sensor - 2.2 inch

  • Product Code: EC-0570
  • Availability: 689
  • Rs.285.00
  • (Excluding 18% GST)
