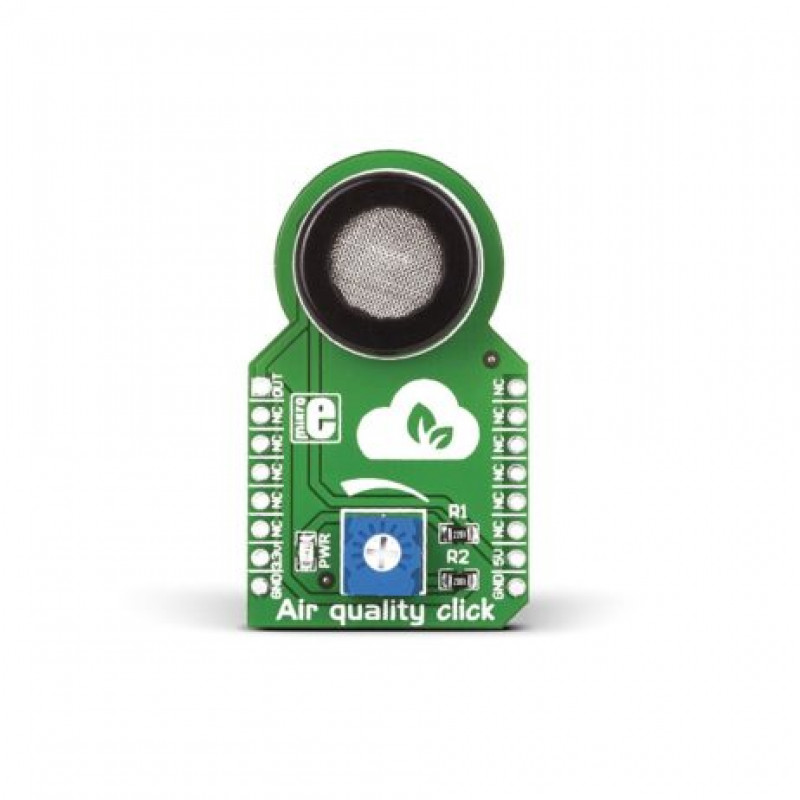

Air quality click is a simple solution for adding a high sensitivity sensor for detecting a variety of gases that impact air quality in homes and offices. Itcarries an MQ-135sensor. The click is designed to run on a 5V power supply. It communicates with the target microcontroller over the AN pin on the mikroBUS line.
Detecting gases
Air quality click is suitable for detecting ammonia (NH3), nitrogen oxides (NOx) benzene, smoke, CO2, and other harmful or poisonous gases that impact air quality. The MQ-135 sensor unit has a sensor layer made of tin dioxide (SnO2), an inorganic compound that has lower conductivity in clean air than when polluting gases are present.
Calibration potentiometer
To calibrate Air quality click for optimum performance, use the onboard potentiometer to adjust the load resistance on the sensor circuit.
Applications Air quality detection for homes and offices.
Specification and Features:
- Type Air Quality, Gas
- MQ-135 sensor
- SnO2 gas sensing layer
- Interface: AN
- 5V power supply
- On-board modules MQ-135 sensor
- Key Features Potentiometer for calibration
- Interface Analog

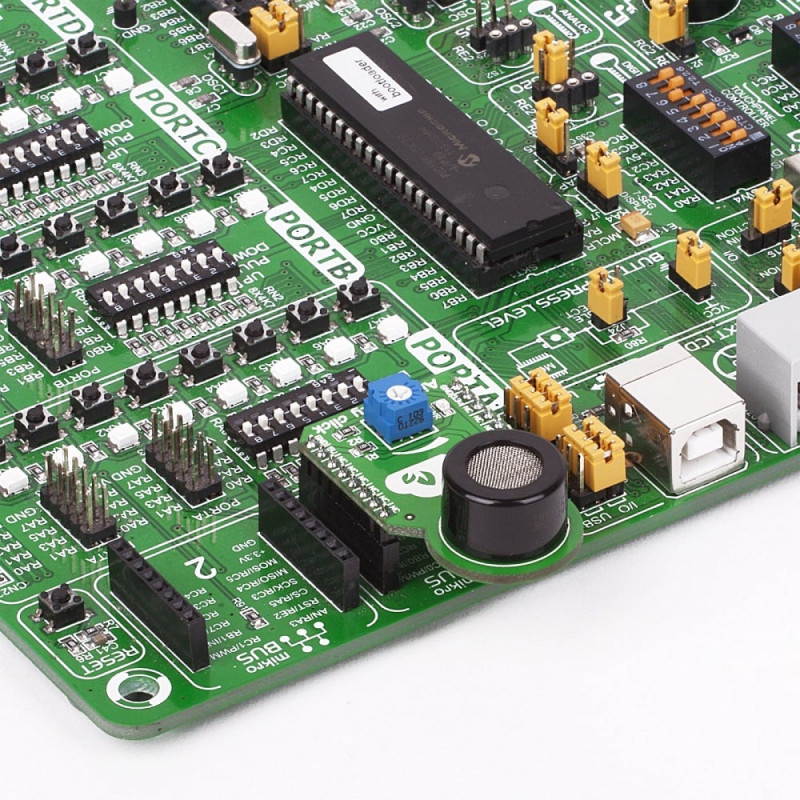

- Compatibility mikroBUS

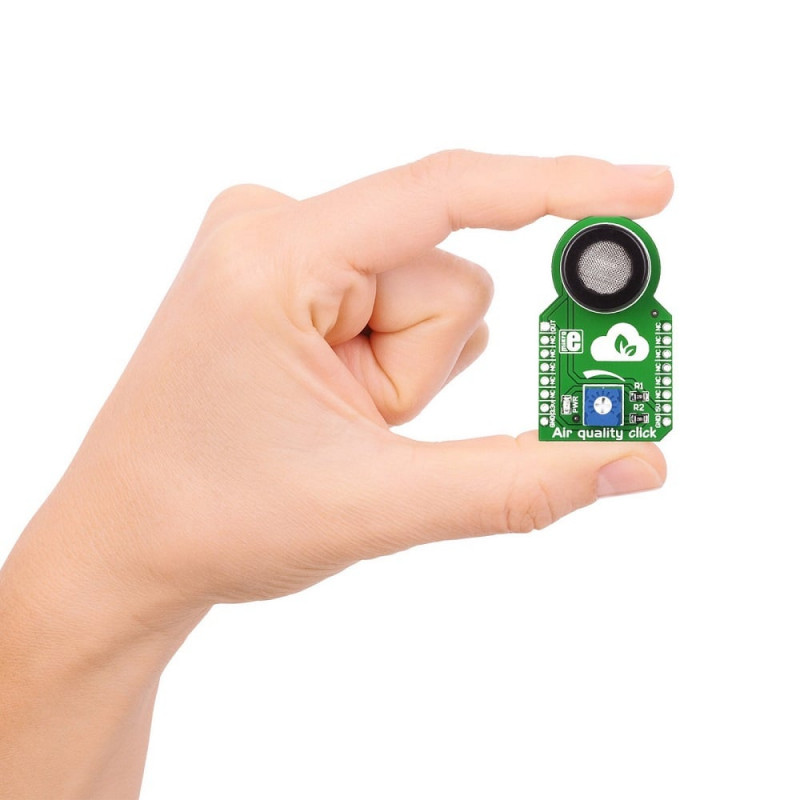

- Click board size M (42.9 x 25.4 mm)
- Input Voltage 3.3V, 5V
Package Includes:
1 x Mikroe Air quality Click
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1929.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Mikroe Air quality Click
- Product Code: EC-18068
- Availability: 2
-
Rs.1439.00
- (Excluding 18% GST)
