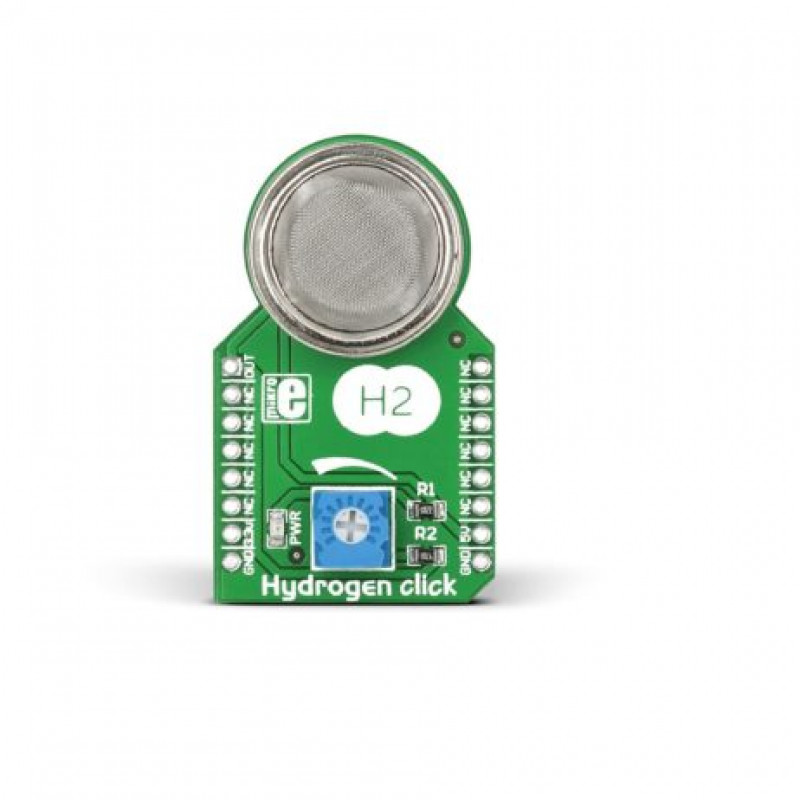

Hydrogen click carries an MQ-8 sensor for hydrogen (H2). The gas sensing layer on the sensor unit is made of tin dioxide (SnO2), which has lower conductivity in clean air. The conductivity increases as the levels of hydrogen rise. The detection range of the sensor is 100-10000ppm of hydrogen.
To calibrate the sensor for the environment youll be using it in, Hydrogen click has a small potentiometer that allows you to adjust the load resistance of the sensor circuit. For precise calibration, the sensor needs to preheat (once powered up, it takes over 24h to reach the right temperature). Hydrogen click communicates with the target board through AN (OUT) mikroBUS line. Its designed to use a 5V power supply only.
Applications: Hydrogen detection, gas leakage
Specifications and Features:
- Type Hydrogen Gas Sensor
- Interface: Analog
- Compatibility: mikroBUS
- Click board size: (42.9 x 25.4 mm)
- Input Voltage 3.3V,5V
- Potentiometer for calibration
- On-board modules MQ-8 sensor for hydrogen (H2)
Package Includes:
1 x Mikroe HYDROGEN Click
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1754.66 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Mikroe HYDROGEN Click
- Product Code: EC-18089
- Availability: 1
-
Rs.1309.00
- (Excluding 18% GST)
