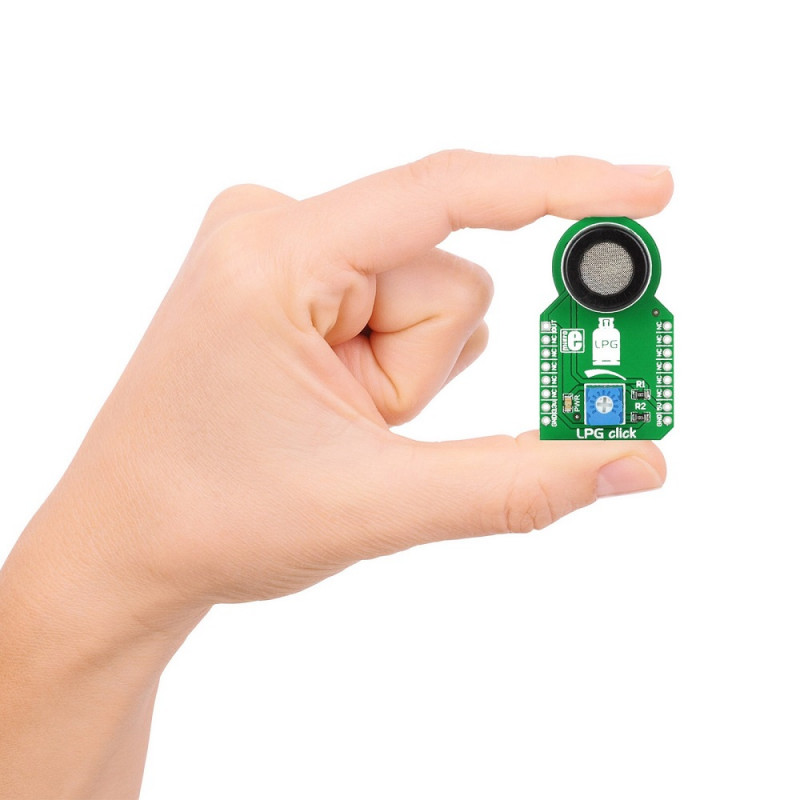

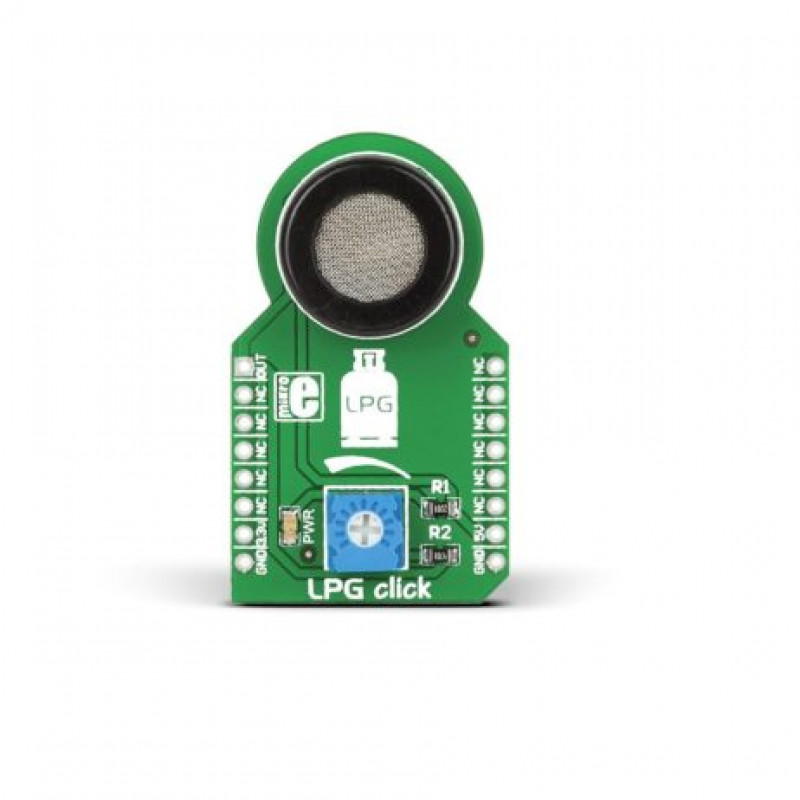

LPG click carries an MQ-5 sensor for detecting liquefied petroleum gas leakage. The gas sensing layer on the sensor unit is made of Tin dioxide (SnO2), which has lower conductivity in clean air. The conductivity increases as the levels of LPG rise. The detection range of the sensor is 200-10000 ppm of LPG.

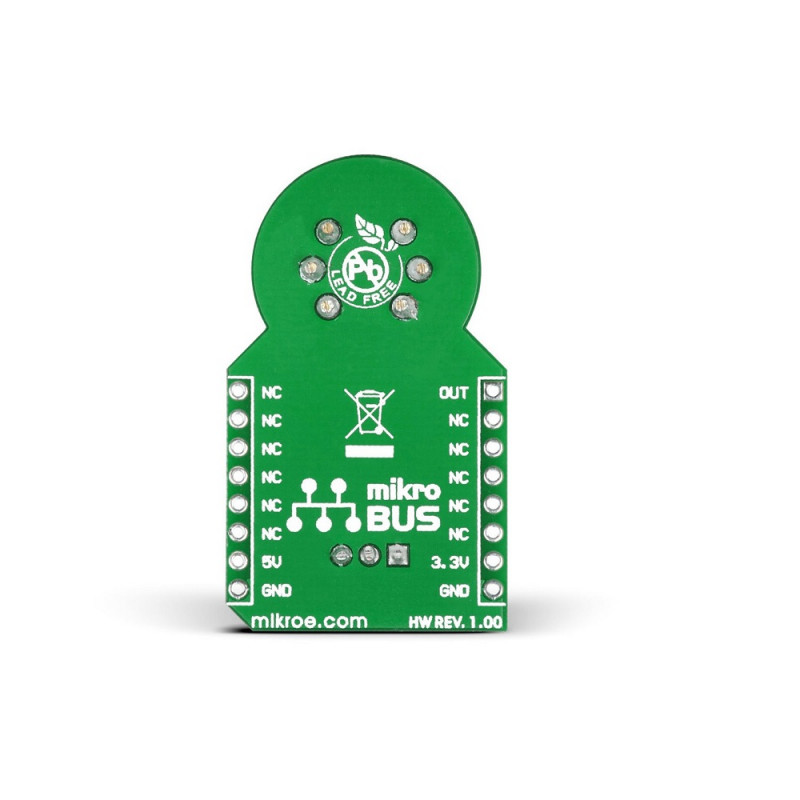

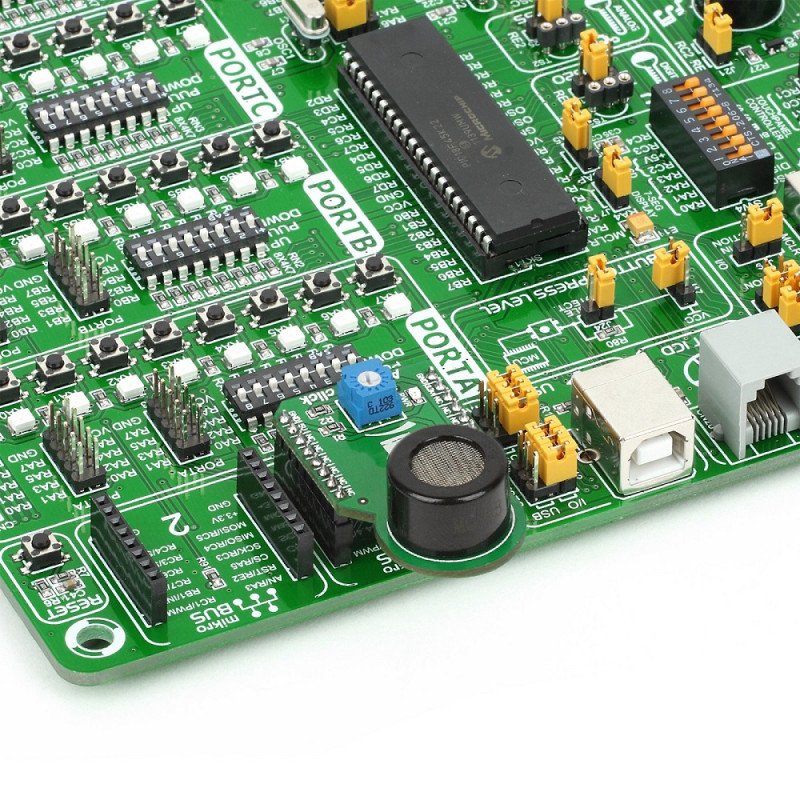

To calibrate the sensor for the environment youll be using it in, LPG click has a small potentiometer that allows you to adjust the Load Resistance of the sensor circuit. For precise calibration, the sensor needs to preheat (once powered up, it takes 24h to reach the right temperature). LPG click communicates with the target board through AN (OUT) mikroBUS line. Its designed to use a 5V power supply only.
Applications: Measuring gas leakage, designing safety alarms
Specifications and Features:
- Type: LPG Gas Sensor
- Interface: Analog
- Compatibility mikroBUS
- Click board size: 42.9 x 25.4 mm
- Input Voltage: 3.3V,5V
- On-board modules MQ-5 sensor
- Potentiometer for calibration
Package Includes:
1 x Mikroe LPG Click
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1754.66 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Mikroe LPG Click
- Product Code: EC-18067
- Availability: 2
-
Rs.1309.00
- (Excluding 18% GST)
