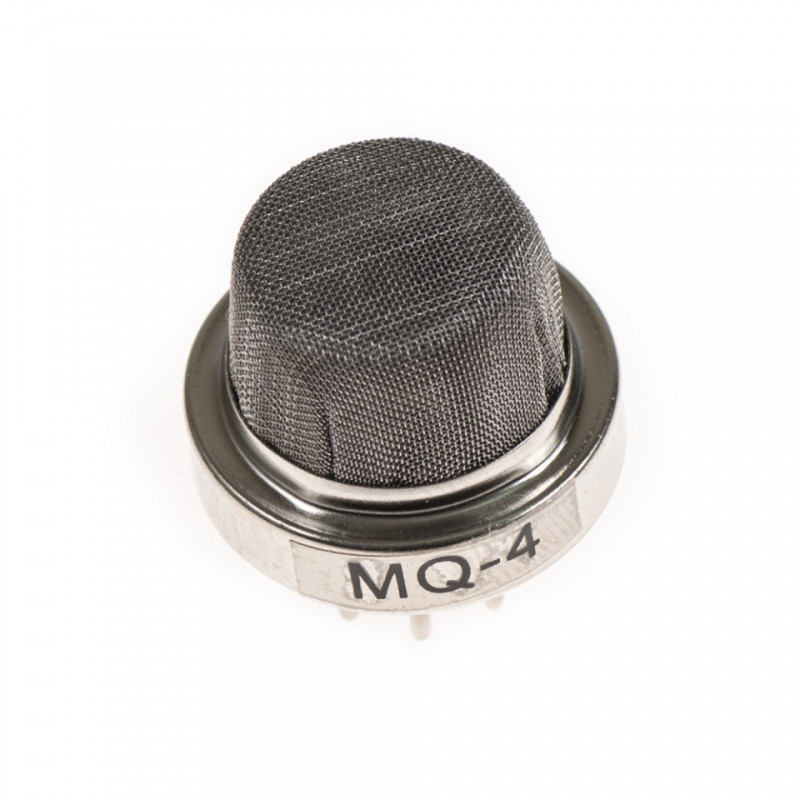

MQ4 GAS Sensor is suitable for sensing natural gas, Methane (CH4). MQ4 gas sensor is composed of micro AL2O3 ceramic tube, Tin Dioxide (SnO2) sensitive layer, measuring electrode and heater are fixed into a crust made by plastic and stainless steel net. The heater provides necessary work conditions for work of sensitive components. The enveloped MQ - 4 has 6 pin, 4 of them are used to fetch signals, and other 2 are used for providing heating current. This MQ4 Gas sensor is suitable for detecting Natural Gas concentration. It has a high sensitivity and fast response time. Sensor provides an analog resistive output based on Natural Gas concentration.
Features of MQ4 GAS Sensor:-
High sensitivity to Methane(CH4), Natural Gas.
Fast response and High sensitivity
Stable and long life.
Simple drive circuit.
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 143.96 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.
MQ4 - Methane Natural Gas Sensor
- Product Code: EC-1269
- Availability: 1127
- (Excluding 18% GST)
