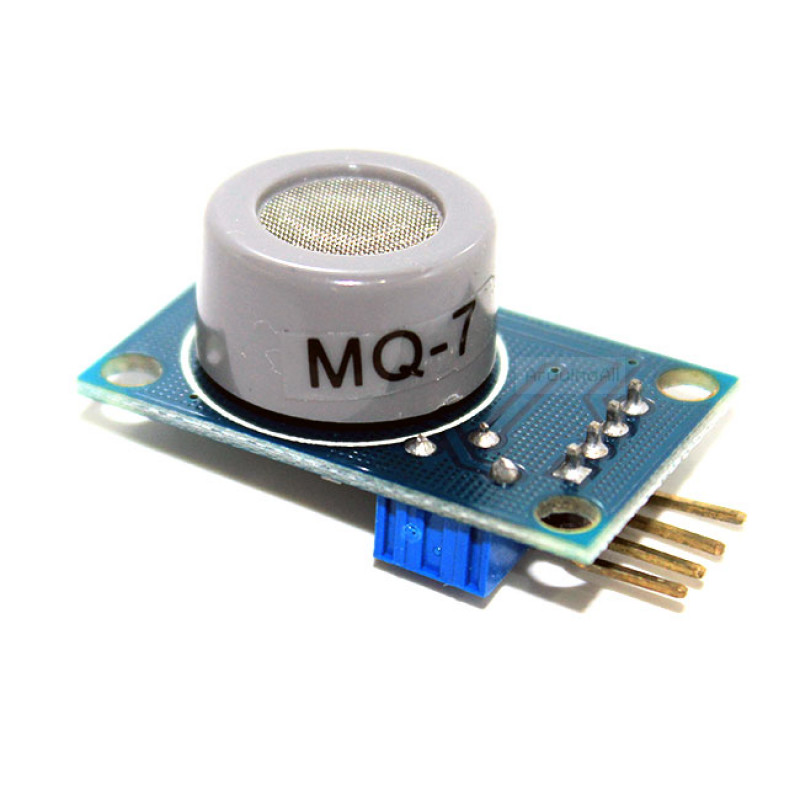

  • MQ7 - Carbon Monoxide Gas Sensor Module

This Carbon Monoxide (CO) gas sensor detects the concentrations of CO in the air and ouputs its reading as an analog voltage. The sensor can measure concentrations of 10 to 10,000 ppm.The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5V.


Specifications of MQ7 Gas Sensor:-

  • Size: 35mm × 22mm × 18mm
  • Detection of gas: carbon gas
  • Heating voltage: 5 ± 0.2V (AC · DC)
  • Working current: 140mA
  • Loop voltage: 10V (maximum DC 15V)
  • Load resistance: 10K (adjustable)
  • Detection concentration range: 10-1000ppm
  • Clean air voltage: ≤1.5V
  • Sensitivity: ≥3%
  • Response time: ≤1S (preheat 3-5 minutes)
  • Response time: ≤30S
  • Element power: ≤0.7W
  • Working temperature: -10 ~ 50 ℃ (nominal temperature 20 ℃)
  • Humidity: 95% RH (nominal humidity 65% RH)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 128.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

MQ7 - Carbon Monoxide Gas Sensor Module

  • Product Code: EC-0452
  • Availability: 2649
  • Rs.98.00
  • (Excluding 18% GST)
