The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.

The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm 80cm.

Connection

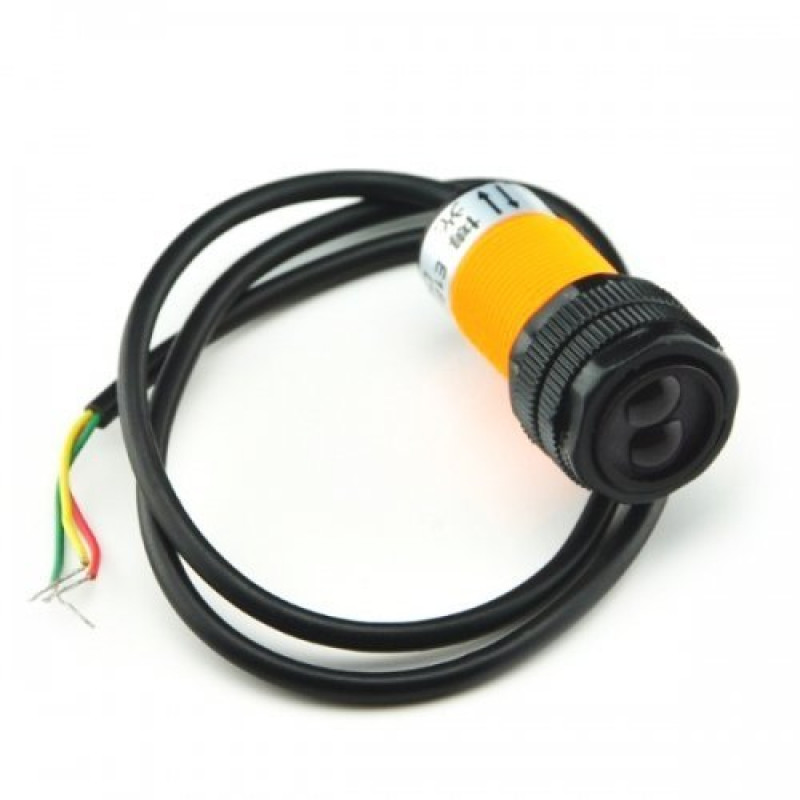

Red wire: +3 to 36V
Green wire: GND
Yellow wire: Digital output

OR

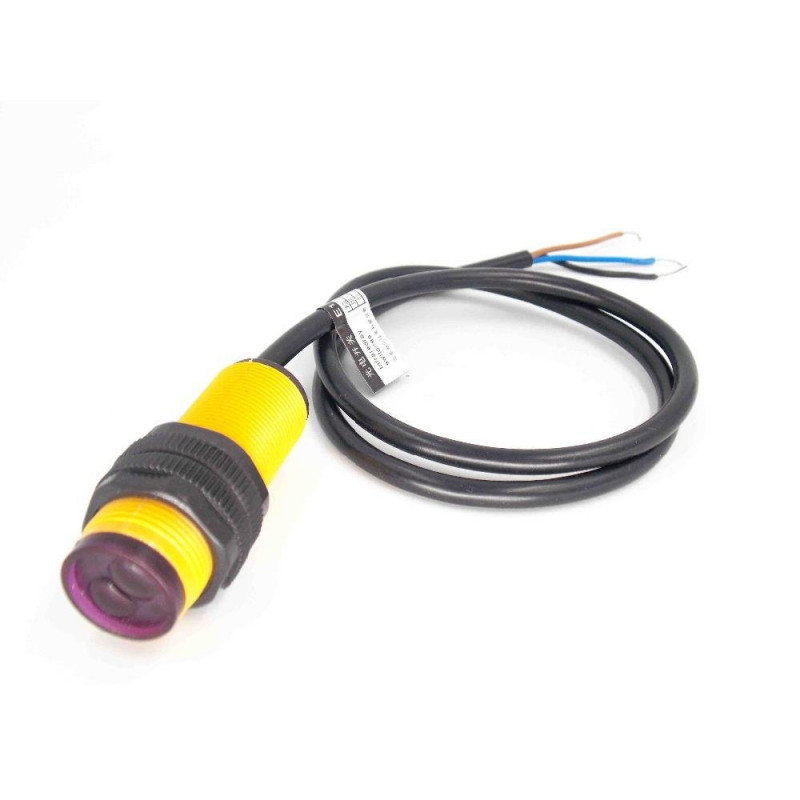

Brown wire: +3 to 36V
Blue wire: GND
Black wire: Digital output.

Features :

1. Diffuse reflective type.
2. Digital output.
3. Adjustable detection distance.
4. Low consumption.
5. Compact size.

Package Includes :

1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.

Specifications :-

Light source	Infrared
Sensing Range	3cm to 80cm
Input Voltage (V)	3 ~ 36
Current Consumption	300mA
