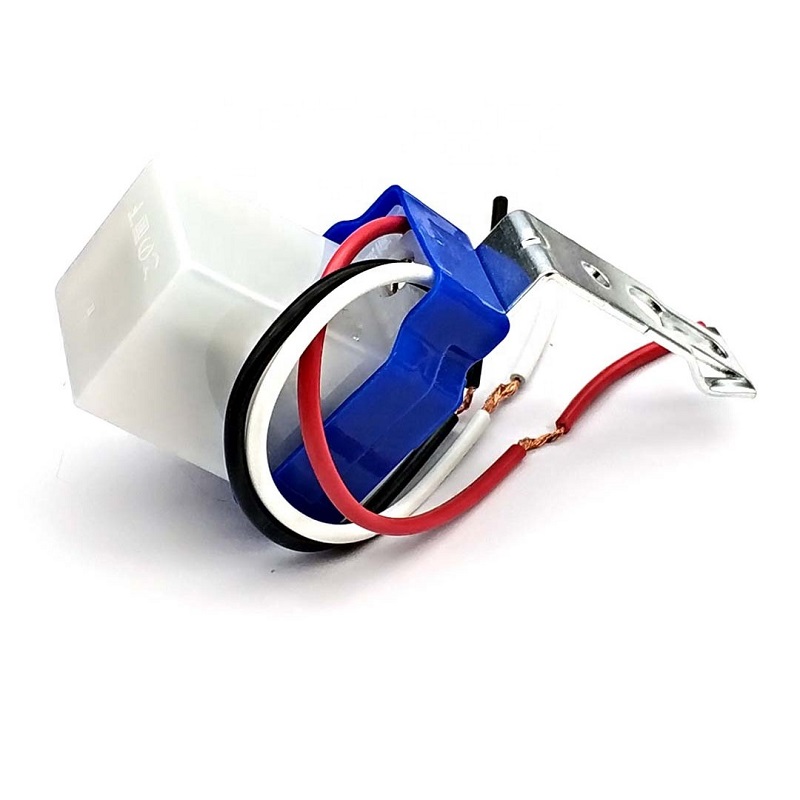

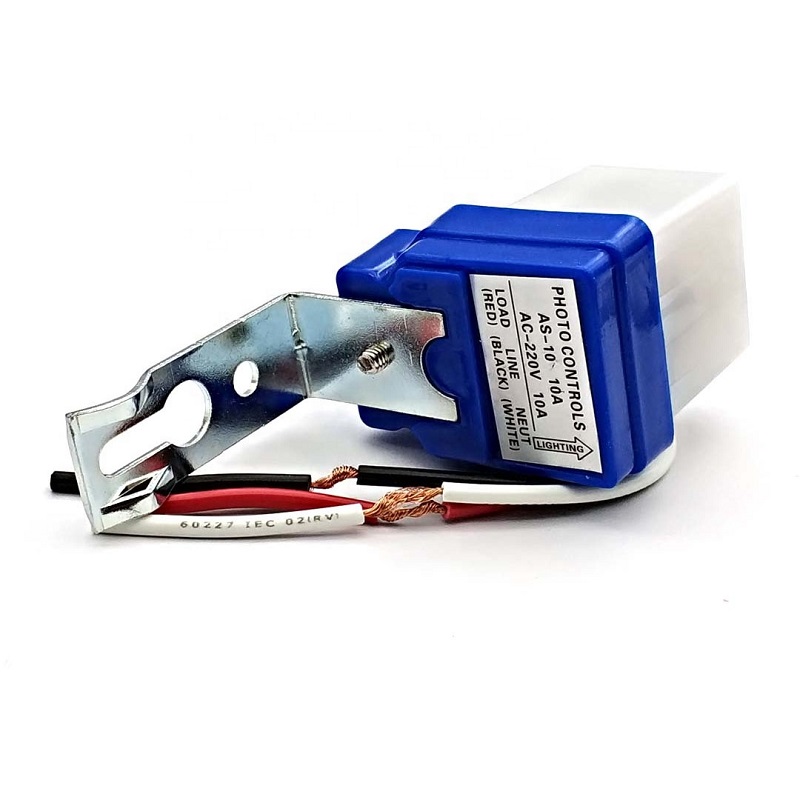

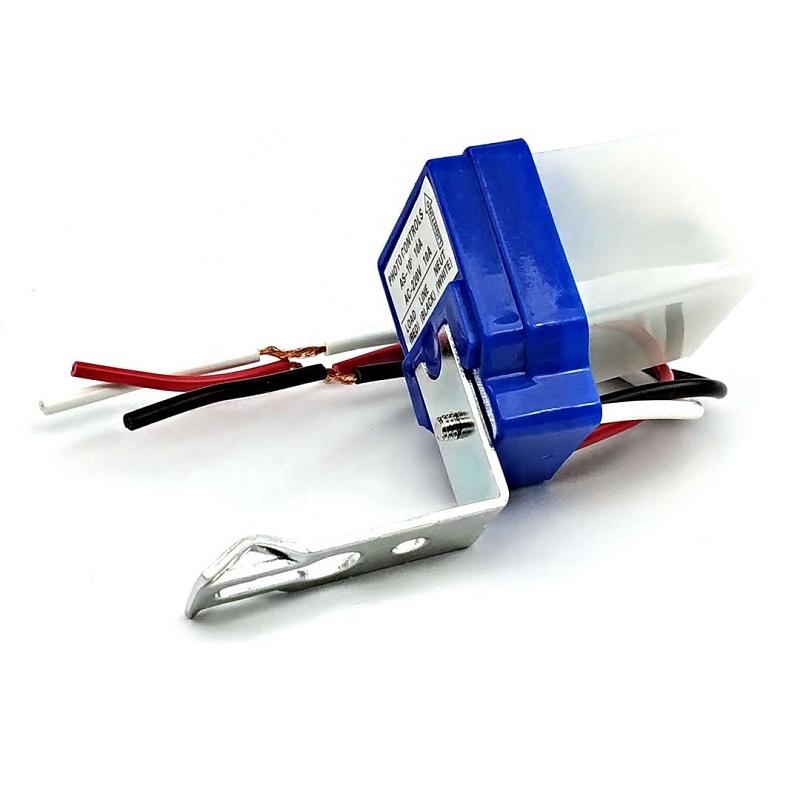

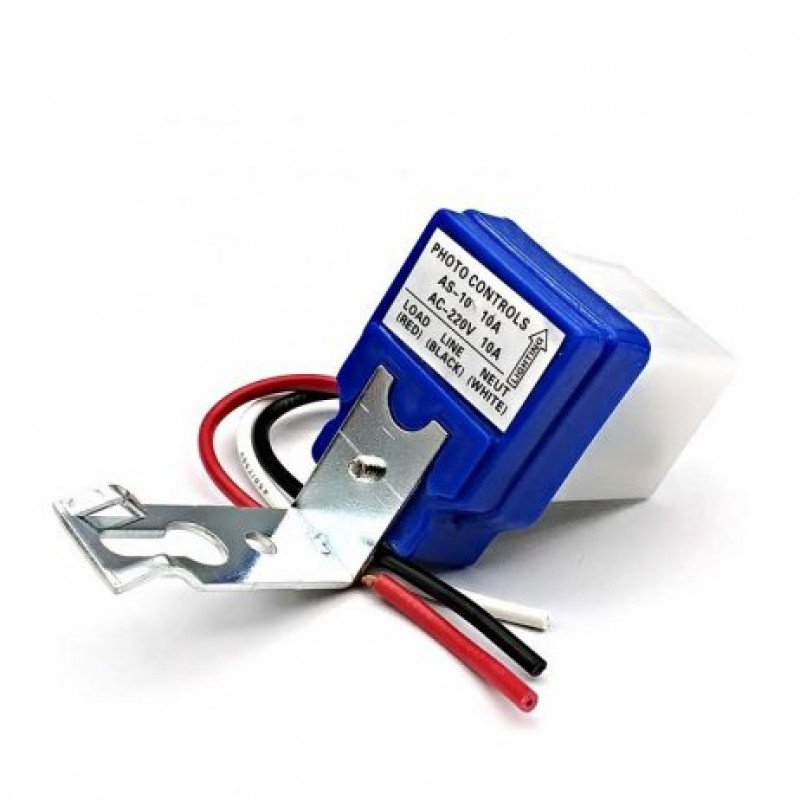

AS-10 type electric lamp automatic switch is based on a novel photoelectric switch photoelectric semiconductor element to design characteristics. It is mainly composed of a photoresistor sealed by CDs and an integrated circuit.
- The interior is equipped with environmental illumination automatic detection circuit, automatically shut down during the day, at night automatically opens.
- Using the three-wire system, compatible with the resistive, inductive, and capacitive load of a variety of lamps.
- Control object for LED lamp, energy-saving lamp, fluorescent lamp, incandescent lamp(1000W), exhaust fan, etc.
- With the environmental conditions, change the delay function.
- Model: AS-10
- Input Voltage :DC/AC 24V 220V
- Max Load Current: 10A
- Frequency: 50-60HZ
- Dimensions: 10 x 4.2cm
- Weight: 48g
1 x AS-10 24V 10A Optical Switch
