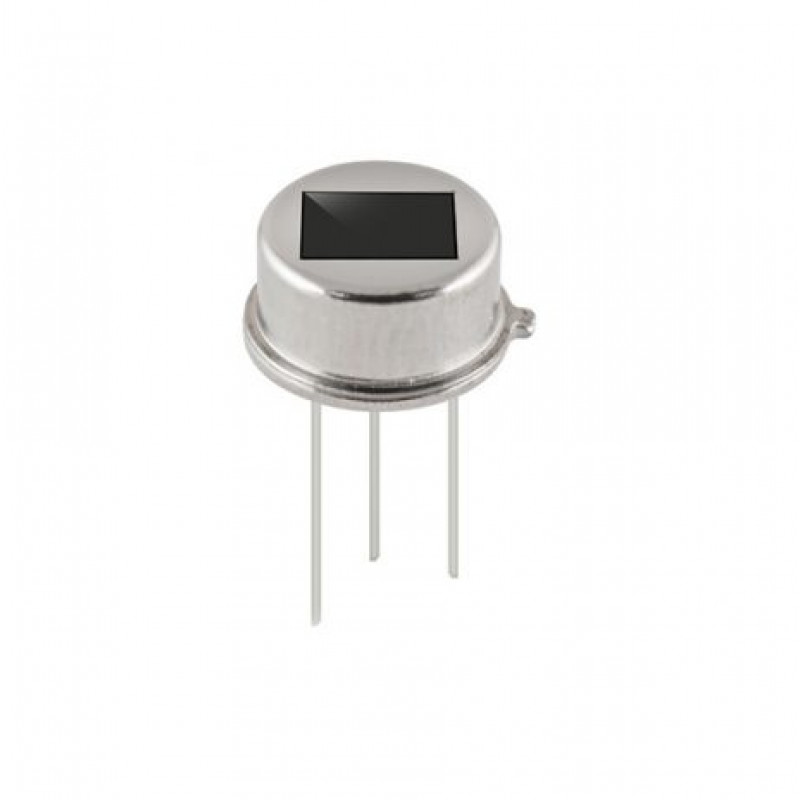

D204S 2 Elements Pyroelectric Infrared Analog PIR sensor comes standard with enhanced immunity to EMI (Electro-Magnetic Interference). It widely used in the security system.
Features:
- Anti-interference
- Custom design is available
- Higher in cost-performance
- Low power consumption
Applications:
- Intelligent security- burglar alarm
- Wireless infrared detection alarm uses advanced signal analysis and processing technology. When the intruder enters through the detection area, it sends an alarm signal to the control panel.
- The PIR sensor is suitable for home, residential area, factory, shopping mall, warehouse, and offices.
Package Includes:
1 x D204S 2 Elements Pyroelectric Infrared Analog PIR Sensor
Specifications :-
| Encapsulation Type | TO-5 |
| IR Receiving Electrode | 21mm, 2 elements |
| Window Size | 43mm |
| Spectral Response | 514m |
| Transmittance | 75% |
| Output Signal[Vp-p] | 3500mV |
| Sensitivity | 3300V/W |
| Detectivity (D*) | 1.4 108 cmHz1/2/W |
| Noise[Vp-p] | <70mV |
| Output Balance | <10% |
| Offset Voltage | 0.31.2V |
| Supply Voltage | 315V |
| Operating Temp | -3070C |
| Weight | 20 gm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 68.44 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
D204S 2 Elements Pyroelectric Infrared Analog PIR Sensor
- Product Code: EC-7550
- Availability: 3
-
Rs.65.00
- (Excluding 18% GST)
