D 205 B Analog PIR sensor is widely used for ceiling lamps and has a large detection angle. The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature.
Features:
- Low power consumption
- Wide-angle
- Slight movement can be detectable
Applications:
- Ceiling Lamps
- Home security systems
- Home Alarm System. As its ability to sense warm, moving objects such as people walking into a room is coupled with simplicity and cost-effectiveness.
Package Includes:
1 x D 205 B Analog PIR sensor
Specifications :-
| Encapsulation Type | TO-5 |
| IR Receiving Electrode | 0.72.4mm, 4 elements |
| Window Size | 4.94.9mm |
| Spectral Response | 514m |
| Transmittance | 75% |
| Output Signal[Vp-p] | 5000mV |
| Sensitivity | 4300V/W |
| Detectivity (D*) | 1.6 108 cmHz1/2/W |
| Noise[Vp-p] | <70mV |
| Output Balance | <10% |
| Offset Voltage | 0.31.2V |
| Supply Voltage | 315V |
| Operating Temp | -3070C |
| Storage Temp | -4080C |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 4 2 1 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 102.66 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

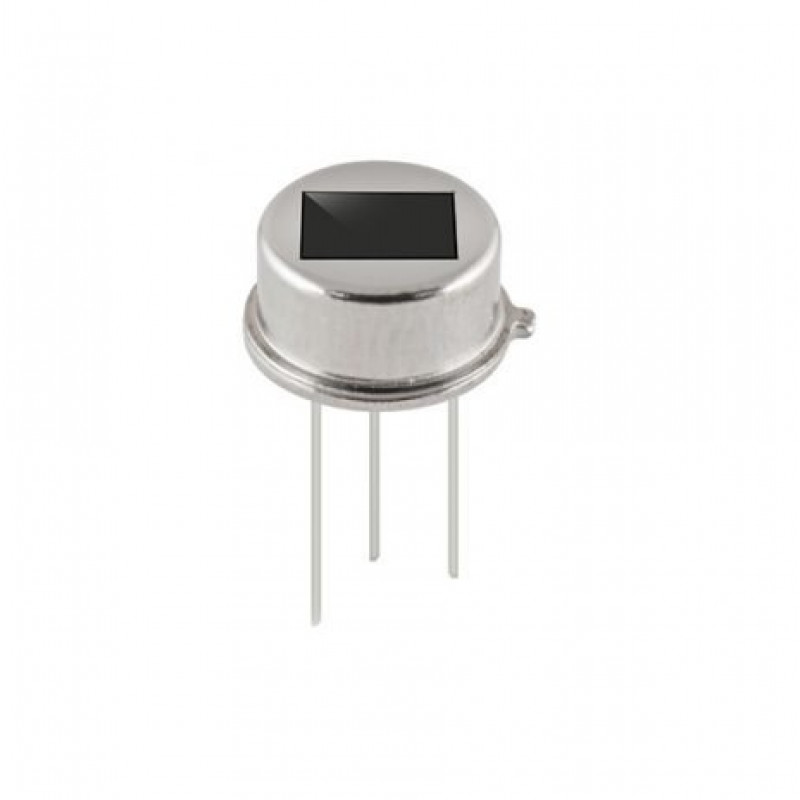

D205B Analog PIR sensor for Security Alarms and Automatic Lighting Applications
- Product Code: EC-7547
- Availability: 7
-
Rs.98.00
- (Excluding 18% GST)
