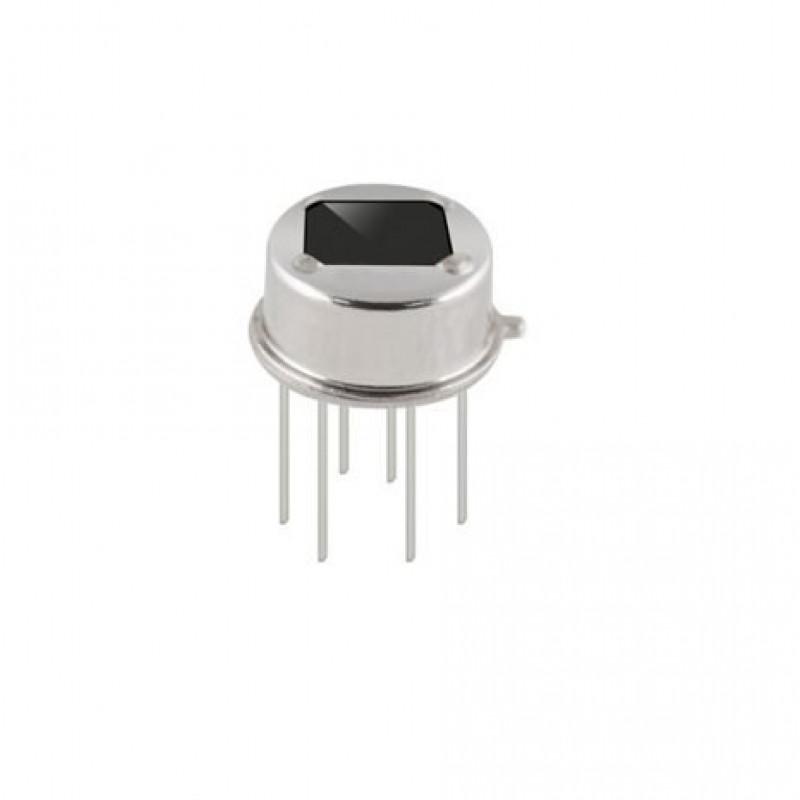

HM 612 Digital 6Pins Long Range Human Motion Detector PIR Sensor is the newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution, with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions that can include ambient light level and sensitivity adjustments.
Applications:
- Smart Lighting
- Infrared automatic PIR sensor light
- Using battery power supply, PIR sensors are easily used in entrance, bathroom, corridor, and other temporary lighting places.
- Compared to sound-control lights, the pyroelectric sensor has a better anti-jamming effect.
- Only sensitive to human body temperature. To light, when a person comes and lights off when a person leaves.
Note: For All technical Details Please go through Datasheet in Attachments
Features:
- Easy Installation
- A Low Current Consumption
Package Includes:
1 x HM 612 Digital 6Pins Long Range Human Motion Detector PIR Sensor
Specifications :-
| Supply Voltage (VDD) | 2.2 to 3.7 V @ IR=0.5mA |
| Working Current (IDD) | 9 to 11 A |
| Sensitivity threshold value | 80 V |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 6 3 1 cm |
Attachments :
Download
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 110.92 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HM 612 Digital 6Pins Long Range Human Motion Detector PIR Sensor for Smart Light Switch
- Product Code: EC-7555
- Availability: Out Of Stock
-
Rs.94.00
- (Excluding 18% GST)
