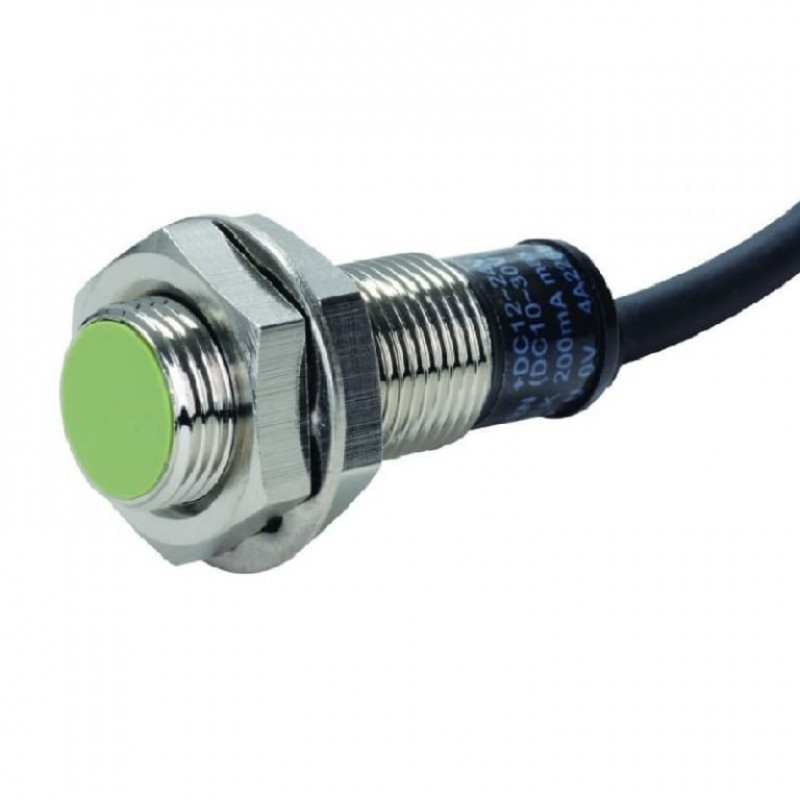

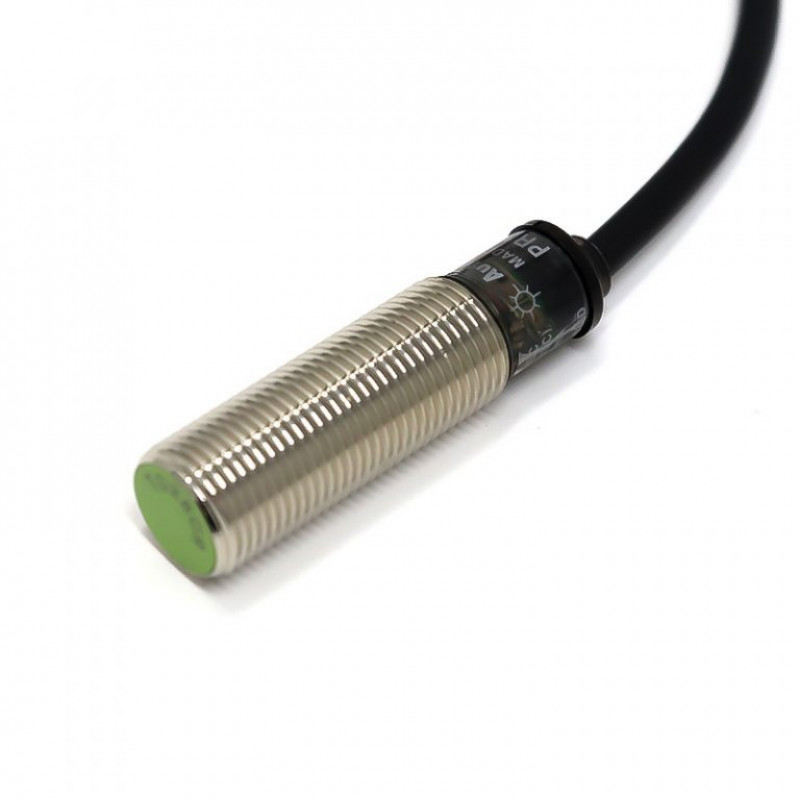

This is Autonics PR12-2DN DC 10-30V 2mm M12 Inductive Proximity Sensor NPN-NO (Shielded) Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of a diverse range of line-ups in terms of size and sensing distance.

This inductive proximity sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection. Inductive sensors use a magnetic field to detect objects. Capacitive sensors use an electric field. In order to be sensed by an inductive sensor, an object must be conductive.

This limits suitable targets to metal objects (for the most part). In order to be sensed by a capacitive sensor, the target doesnt need to be conductive. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.

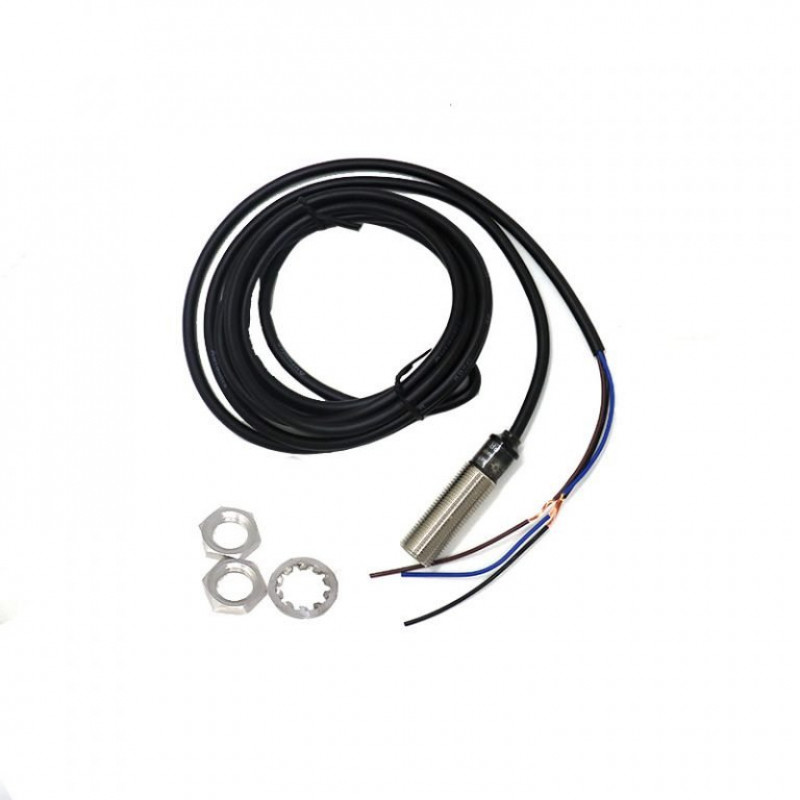

Note: This package does not include 2 washers as shown in the image (Package Includes only one washer).


Features:

  1. Improved the noise resistance with a dedicated IC.
  2. Built-in reverse polarity protection circuit (DC 3-wire type).
  3. The built-in surge protection circuit.
  4. Built-in overcurrent protection circuit (DC type).
  5. Long life cycle and high reliability, and simple operation.
  6. IP67 protection structure (IEC standard).
  7. Replaceable for micro switches and limit switches.


Package Includes:

1 x Autonics PR12-2DN DC 10-30V 2mm M12 Inductive Proximity Sensor NPN-NO (Shielded).


Specifications :-

Model

Autonics M12 NPN-NO

Operating Voltage (VDC)

10 ~ 30

Detection Distance (mm)

2

Outer Thread Size

M12

Object Type

Inductive

Output Type

NPN Normally Open Three-line

Installation Type

Flush (Shielded)

Max Output Current (mA)

200

Setting Distance (mm)

0 ~ 1.4

Insulation Resistance (M)

50

Operating Temperature (C)

-25 to 70

Response Frequency

1.5 kHz

Storage condition ()

-30 to 80

Cable Diamensions

4, 3-Wire, 2 Meter

Weight (gm)

85


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 725.7 (Inclusive of all Taxes)
