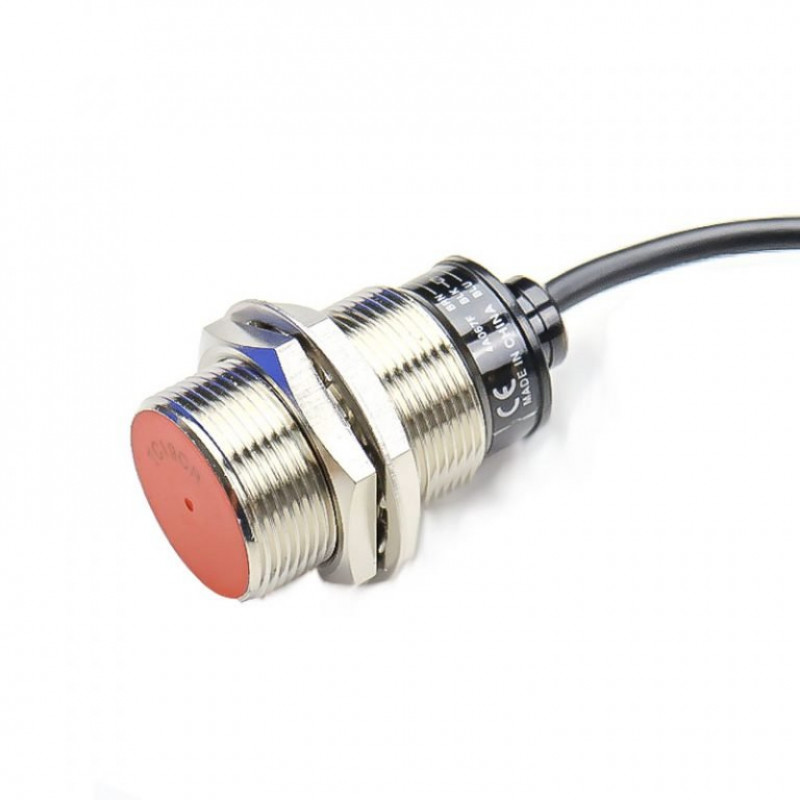

This is Autonics PR30-10DP DC 10-30V 10mm M30 Inductive Proximity Sensor PNP-NO (Shielded) Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of a diverse range of line-ups in terms of size and sensing distance.
This inductive proximity sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection. Inductive sensors use a magnetic field to detect objects. Capacitive sensors use an electric field. In order to be sensed by an inductive sensor, an object must be conductive.
This limits suitable targets to metal objects (for the most part). In order to be sensed by a capacitive sensor, the target doesnt need to be conductive. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.
Features:
- Improved the noise resistance with a dedicated IC.
- Built-in reverse polarity protection circuit (DC 3-wire type).
- The built-in surge protection circuit.
- Built-in overcurrent protection circuit (DC type).
- Long life cycle and high reliability, and simple operation.
- IP67 protection structure (IEC standard).
- Replaceable for micro switches and limit switches.
Package Includes:

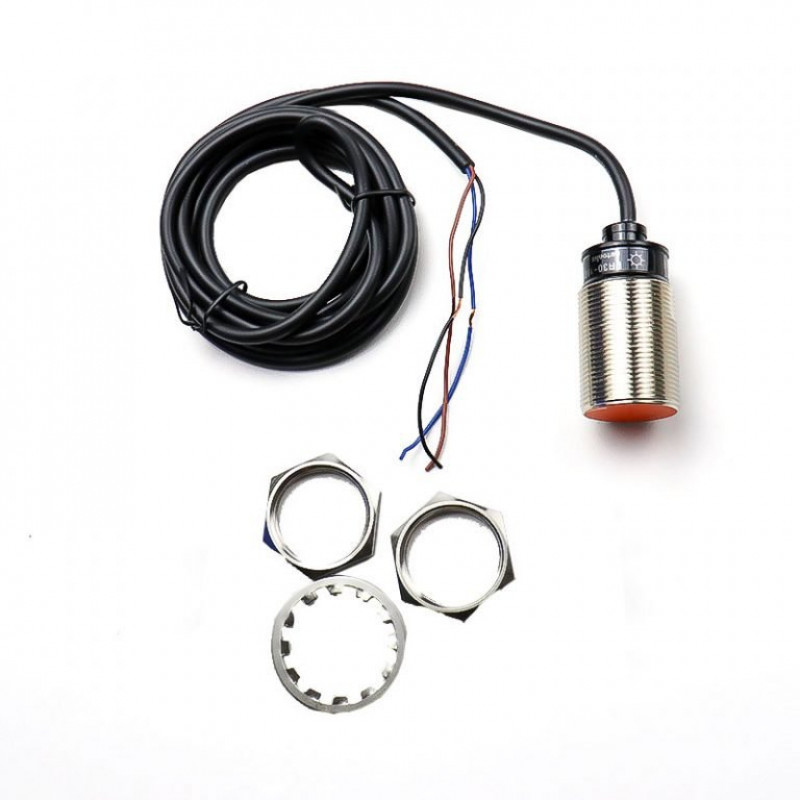

1 x Autonics PR30-10DP DC 10-30V 10mm M30 Inductive Proximity Sensor PNP-NO (Shielded).
Specifications :-
| Model | Autonics PR30-10DP PNP-NO |
| Operating Voltage (VDC) | 10 ~ 30 |
| Detection Distance (mm) | 10 |
| Outer Thread Size | M30 |
| Object Type | Inductive |
| Output Type | PNP Normally Open Three-line |
| Installation Type | Flush (Shielded) |
| Max Output Current (mA) | 200 |
| Setting Distance (mm) | 0 ~ 7 |
| Insulation Resistance (M) | 50 |
| Operating Temperature (C) | -25 to 70 |
| Storage condition () | -30 to 80 |
| Cable Diamensions | 5, 3-Wire, 2 Meter |
| Response Frequency | 400Hz |
| Weight (gm) | 150 |
| Shipment Weight | 0.2 kg |
| Shipment Dimensions | 11 8 9 cm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Autonics PR30-10DP DC 10-30V 10mm M30 Inductive Proximity Sensor PNP-NO (Shielded)
- Product Code: EC-5291
- Availability: Out Of Stock
-
Rs.1339.30
