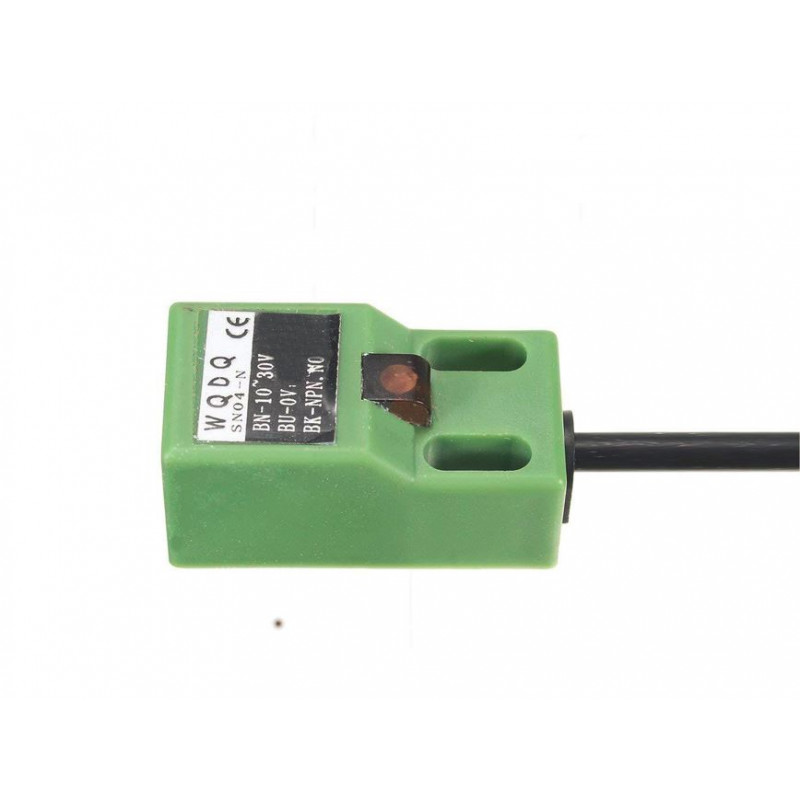

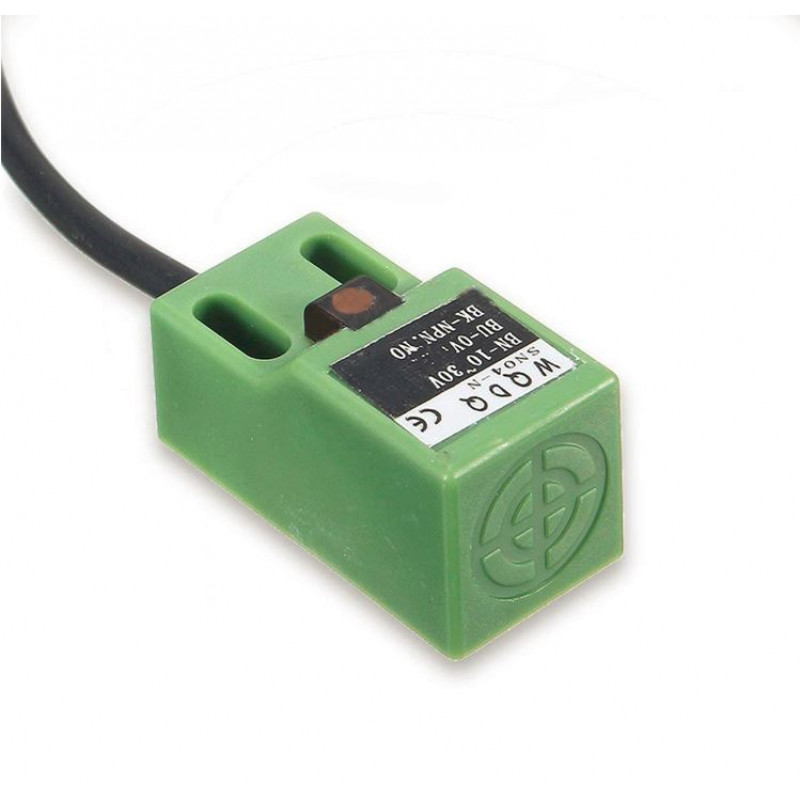

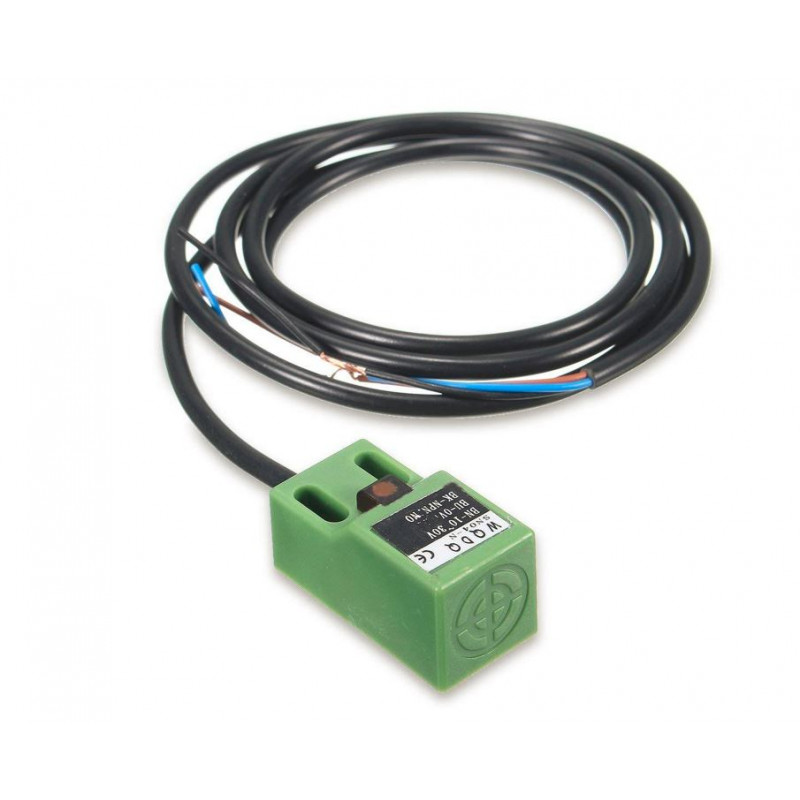

Green SN04-N NPN DC10-30V Distance Detector Proximity Sensor Switch Module will detect the presence of a metallic object within 4mm of the surface of the sensor. The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered and increases in brightness when an object is detected.
- Brown wire: 10 ~ 30 VDC (+Ve).
- Blue wire: 0 V (GND).
- Black wire: signal.
- Red LED checks the state of the proximity sensor
- High repeated positioning accuracy
- High switching frequency
- Wide voltage range
- Antivibration, dust, water, and oil prevention
- Reverse power protection, short circuit protection, directly connecting with PLC
- It can replace small switches and limit switches.
- Model: SN04-N
- Operating Voltage(V): 10 ~30
- Current Consumption Max: 5 mA
- Detection distance(mm): 5 mm.
- Cable Length: 150 cm.
- Response Frequency: 500Hz Max.
- Protection class: IP 67
1 x Green SN04-N NPN DC10-30V Inductive Proximity Sensor Switch
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 234.82 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.
Green SN04-N NPN DC10-30V Inductive Proximity Sensor Switch
- Product Code: EC-10644
- Availability: 136
- (Excluding 18% GST)
