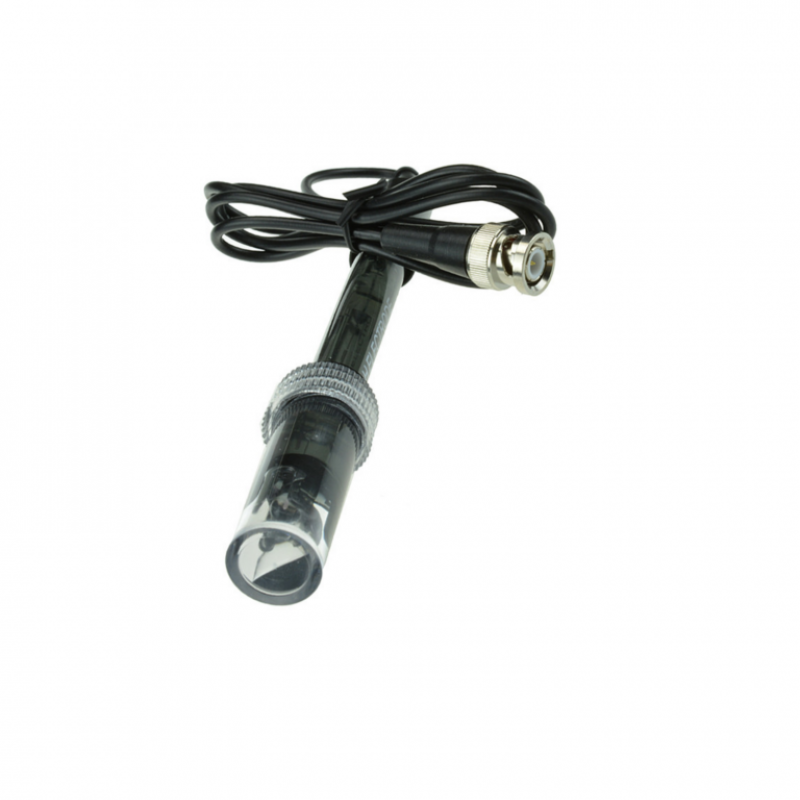

This is Electrode Probe for Liquid pH Value Detection Sensor Module. Need to measure water quality and other parameters but havent got any low-cost pH meter? Find it difficult to use with Arduino?
Here, we have Liquid pH Value Detection Sensor. This probe can be used with this pH sensor module.
The electrode is made of a pH glass electrode and a reference electrode combined composite electrode, which is pH meter measuring sensor for measuring the concentration of an aqueous solution of H (pH value), it is widely used in various fields to be detected in the pH.
The PH electrode has a single cylinder that allows direct connection to the input terminal of a PH meter, controller, or any PH device which has a BNC input terminal. The PH electrode probe is accurate and reliable that can give almost instantaneous readings.
Features :
- BNC Connector is suitable for most PH meter and controller.
- Suitable for a wide range of application: Aquariums, Hydroponics, Laboratory, etc.
Package Includes :
1 x Electrode Probe for Liquid pH Value Detection Sensor Module.
Specifications :-
| pH Range | 0-14 pH |
| Operating Temperature (C) | 0 to 80 |
| Zero Point | 70.5 pH |
| Alkali Error | 0.2 pH |
| Theoretical Percentage Slope | 98.5% |
| Internal Resistance | 250M |
| Response Time | 1min |
| Terminal Blocks | BNC plug |
| Total Probe Length (m) | Approx 1m |
| Weight (gm) | 56 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Electrode Probe for Liquid pH Value Detection Sensor Module
- Product Code: EC-5328
- Availability: 19
-
Rs.765.82
