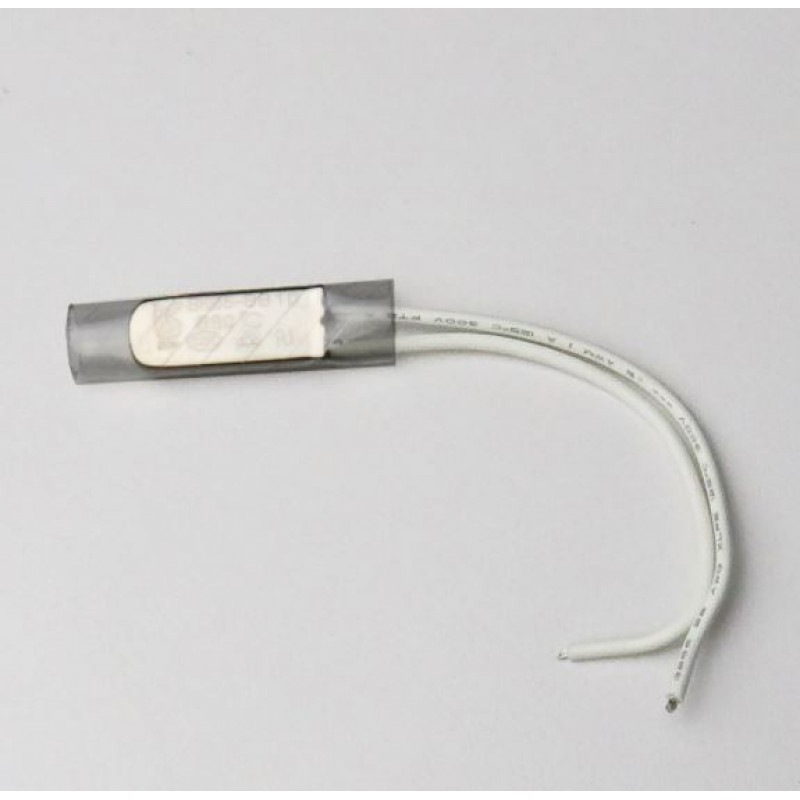

  • BK05 250V 5A 80 Degree C Plastic Thermostatic Temperature Switch NC

The BK05 250V 5A 80C Plastic Thermostatic Temperature Switch NC is a kind of thermostat that adapts the bimetal disc as the temperature sensing element.

The bimetal disc is in the free state and the contacts are closed when the electrical appliance is working in normal condition.

When the ambient temperature rises to the preset operating temperature, the contacts open as the bimetal disc deforms to jump when being heated, then the circuit is cut off to control the temperature. Then the contacts will close automatically to cut on the circuit when the electrical appliance is cooled down to the reset temperature.

Widely used in home appliances and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc.


Features :

  1. Mechanical making and breaking of electrical circuits.
  2. Easy to use, small and handy module.
  3. Useful in a variety of applications.
  4. Acts as temperature operated circuit breaker.


Package Includes :

1 x BK05 250V 5A 80C Plastic Thermostatic Temperature Switch NC.


Specifications :-

Model

KSD9700

Rated Voltage(V)

250

Operating Current (A)

5

Operating Temperature (C)

80

Cable Length (cm)

7

Head Dimensions(mm)

20x8x4

Weight (gm)

3

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 115.64 (Inclusive of all Taxes)
