Using high-quality HR202 humidity sensor. The comparator output signal is clean, good waveform, driving ability, more than 15mA

The humidity sensor module is sensitive to environmental humidity, generally used to detect ambient humidity by adjusting the potentiometer, for detecting the humidity can change the threshold ( i.e. the humidity control), such as the need to control the ambient humidity of 60% ,then the corresponding module is transferred to the green light and humidity environment , DO high power output when flat, humidity values below this setting, high output, the green light does not shine

DO output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the humidity changes in the environment.

DO output of the relay module can directly drive the shop, which can form a humidity switch, control-related equipment to work in the right environment.

Small plates AO analog output modules can be connected OUR AD through the AD converter, you can get a more accurate numerical ambient humidity With the screw holes of 3mm, easy fixed installation.


Specifications and Specifications:

  1. Adjustable Sensitivity, External GND.
  2. Detect Ambient Humidity.
  3. Provided with Fixed Bolt Hole, Convenient to Install.
  4. Power Indicator Light & Digital Output Indication Lamp.
  5. Using LM393 Chip for Stable Work.
  6. DO Small Digital Outputs Interface (0 & 1).
  7. Adjustable trigger level from preset.
  8. LEDs indicating output and power.


Package Includes:

1 x HR202 Humidity Detection Sensor Module.


Specifications :-

IC Chip

HL-01

Operating voltage (v)

3.3 ~ 5V DC

Operating Current

15mA

Humidity Range

20 ~ 95%RH

Output Digital

0V or 5V,

Length (mm)

51

Width (mm)

15

Height (mm)

7

Weight (gm)

5


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 100.3 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

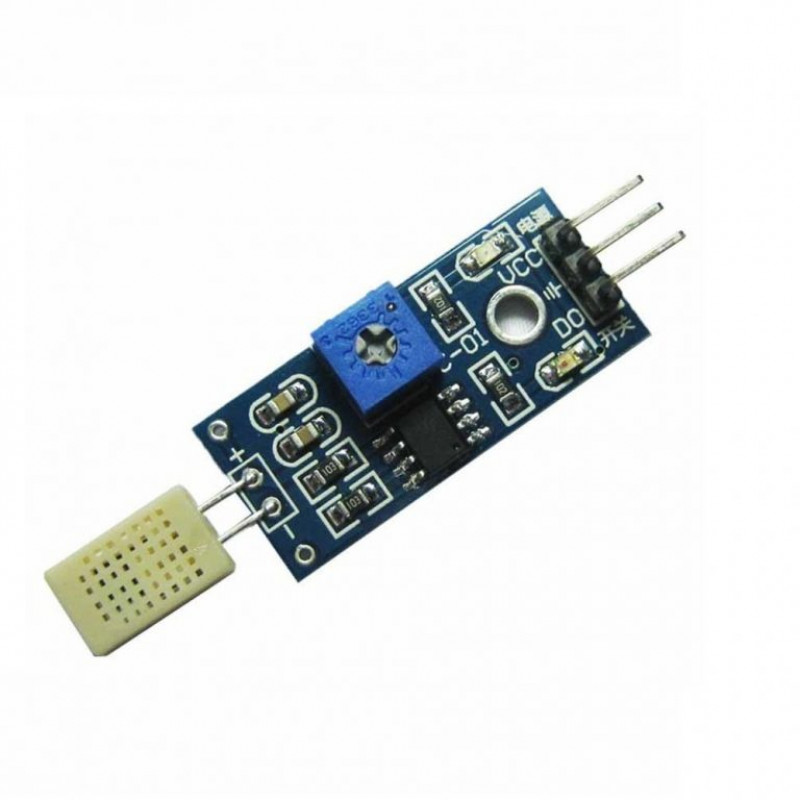

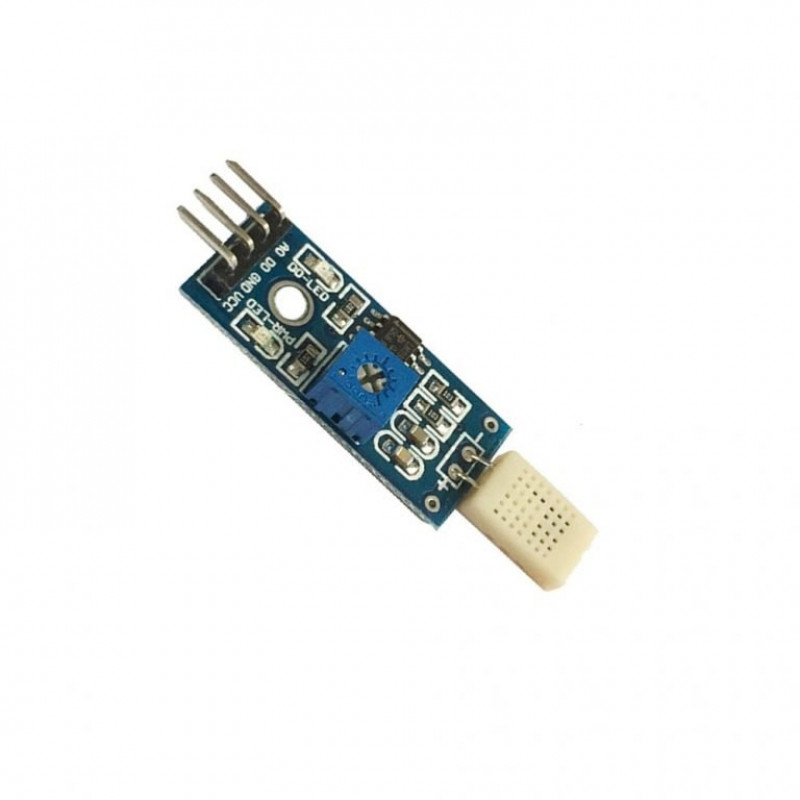

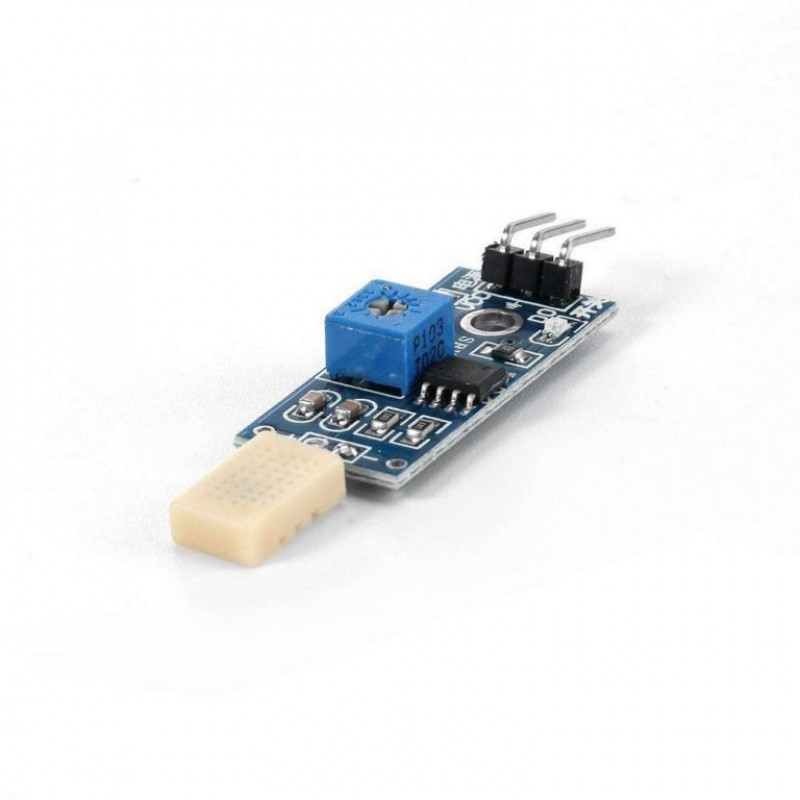

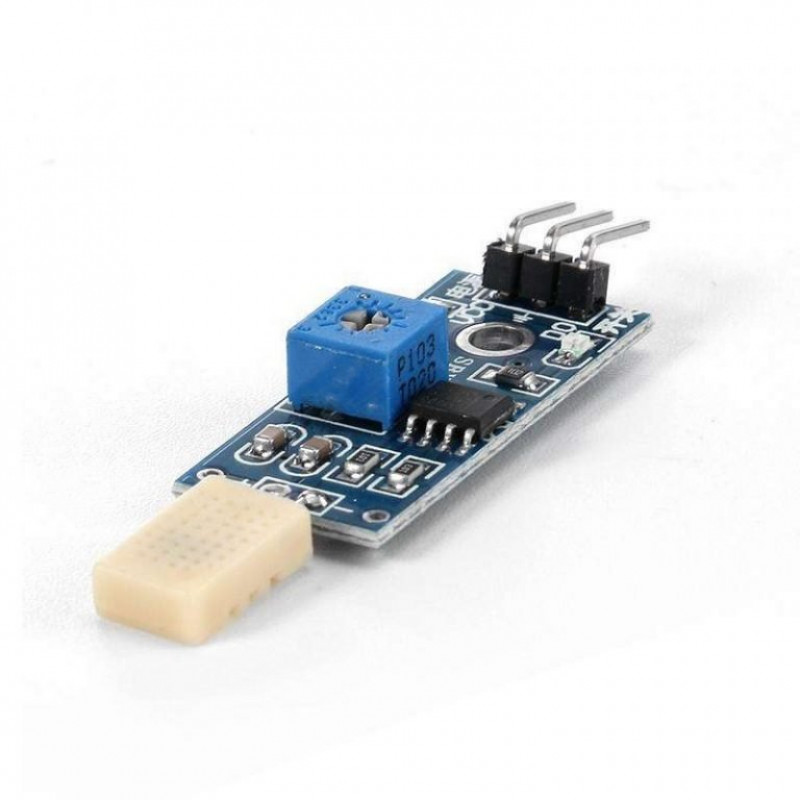

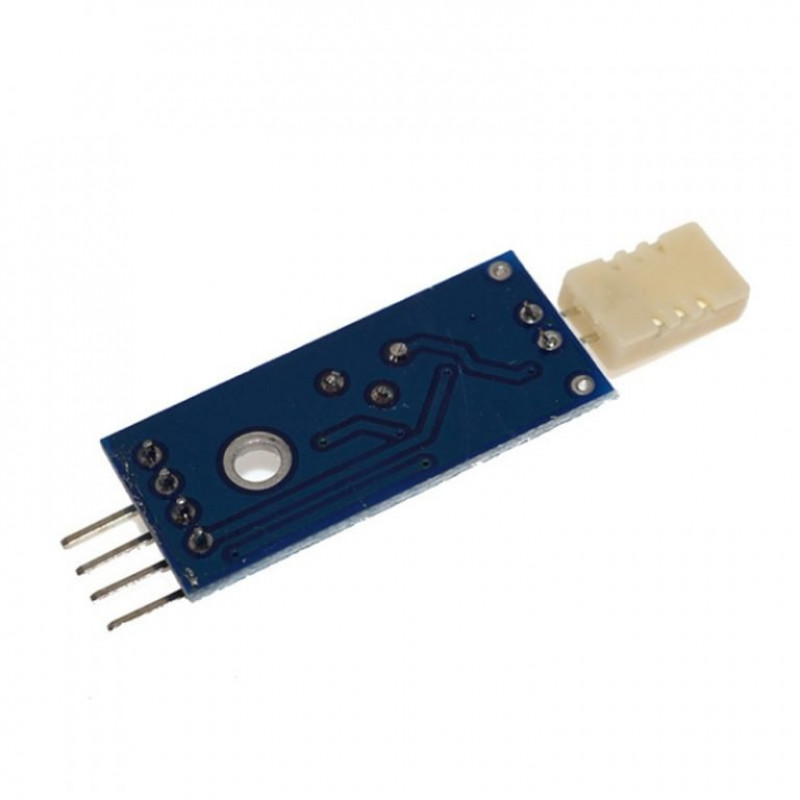

HR202 Humidity Detection Sensor Module
