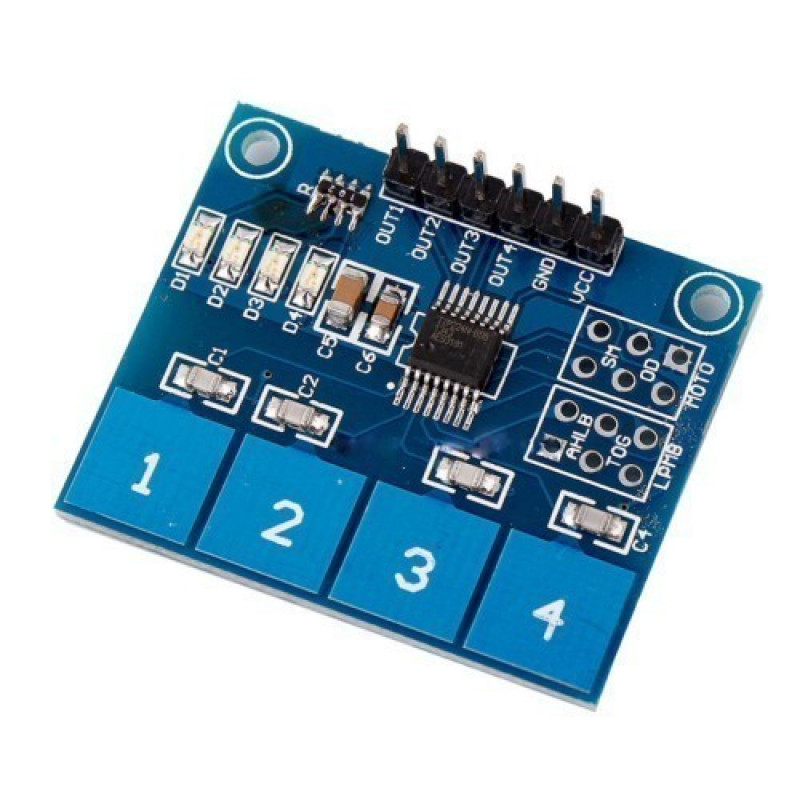

  • TTP224 - 4 Channel Capacitive Touch Sensor Module

4 Channel Capacitive Touch Sesnor Module uses the touch-sensing IC TTP224 to sense the touch input thus making it easy to add capacitive touch input to your project. The touching detection IC is designed for replacing traditional direct button key with diverse pad size. The module has 4 touch pads. Power the module with 2.4 ~ 5.5V DC and the touch pad is all active to sense the input.

Four Channel Capacitive Touch Sensor Module is easy to interface. It can be used along with a microcontroller or an arduino or even without one. When a capacitive load (such as a human hand) is in close proximity to the sense-pad, the sensor detects the change in capacitance and activates the switch. Custom sense-pads can be made from nearly any conductive material and these sensors can detect touch through thin layers of non-conductive materials such as glass, plastic, fabric or even wood.

Thus, the 4 Channel Capacitive Touch Sensor Module can be hidden in wall or other places, a perfect alternative to get rid of the conventional push-button troubles. A total of 4 pads are available on this module. The sense-pads can also be extended with a wire or almost any conductive material.


4 Channel Capacitive Touch Sensor Module Specifications:-

  • Onboard TTP224 capacitive touch sensor IC
  • 4 board-level status indicator
  • Working voltage: 2.4V - 5.5V
  • Advanced Pins breakout, so that the output mode and working mode selectable.
  • Low power selection
  • PCB board size: 35 (mm) x 29 (mm)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 77.88 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

TTP224 - 4 Channel Capacitive Touch Sensor Module

  • Product Code: EC-1273
  • Availability: 439
  • Rs.56.00
  • (Excluding 18% GST)
