Features of the weather-resistant MB7560, SCXL-MaxSonar-WR, include reduced impact of condensation and frost when ran continuously in closed or high-moisture environments, millimeter resolution, short to long distance detection, range information from 300mm to 5000mm for the nearest detectable target, a 0.6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

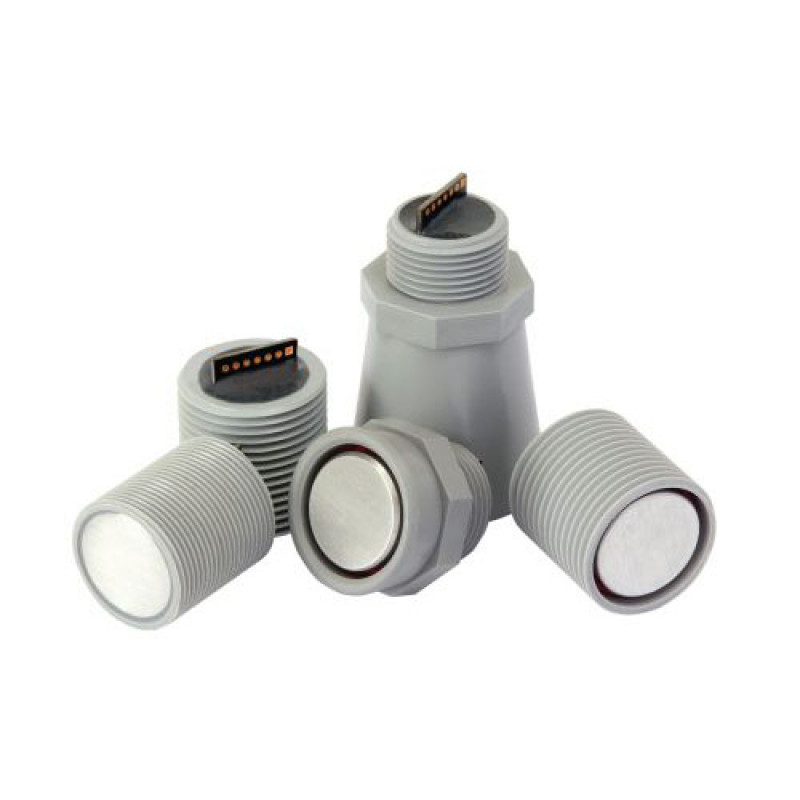

The MB7560 from the SCXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4inch PVC pipe fittings (this product has multiple housing options available).

TheSCXL-MaxSonar-WRsensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

Applications:

1. Tank level measurement
2. Bin level measurement
3. Proximity zone detection
4. Environments with acoustic and electrical noise
5. Distance measuring
6. Long-range object detection

Features:

1. RoHS Compliant
2. Small, lightweight module
3. Designed for easy integration into your project or product
4. Long-range, narrow detection z
5. Real-time automatic calibration (voltage, humidity, ambient noise)
6. Firmware filtering for better noise tolerance and clutter rejection
7. 20+ Years Mean Time Between Failure
8. Our longest-range outdoor, weather-resistant, ultrasonic sensor
9. Analog envelope output for easy troubleshooting and signal processing

Note: For more info refer to Datasheet

Packages Includes:

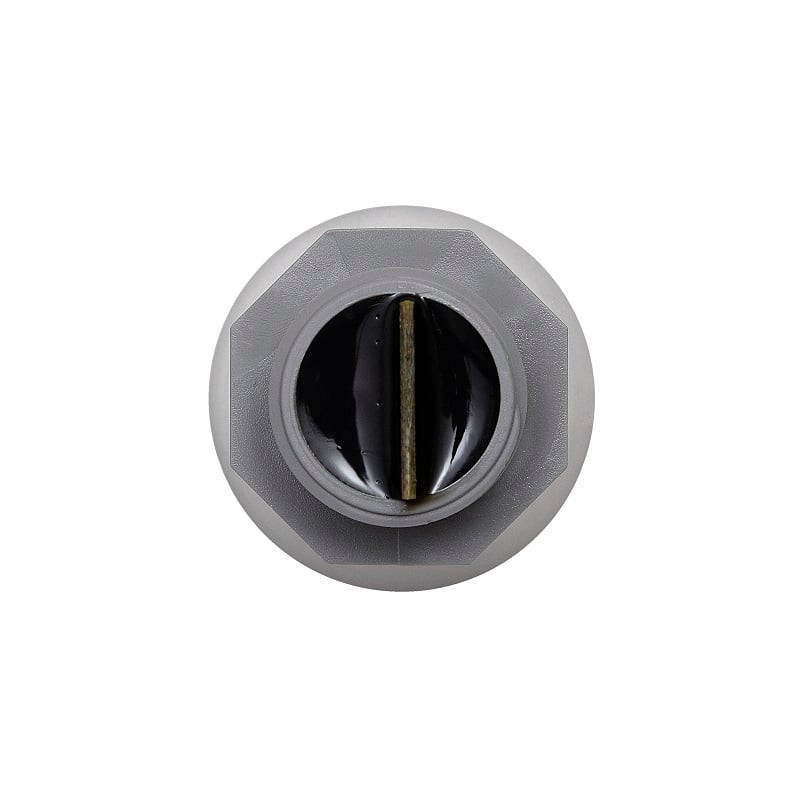

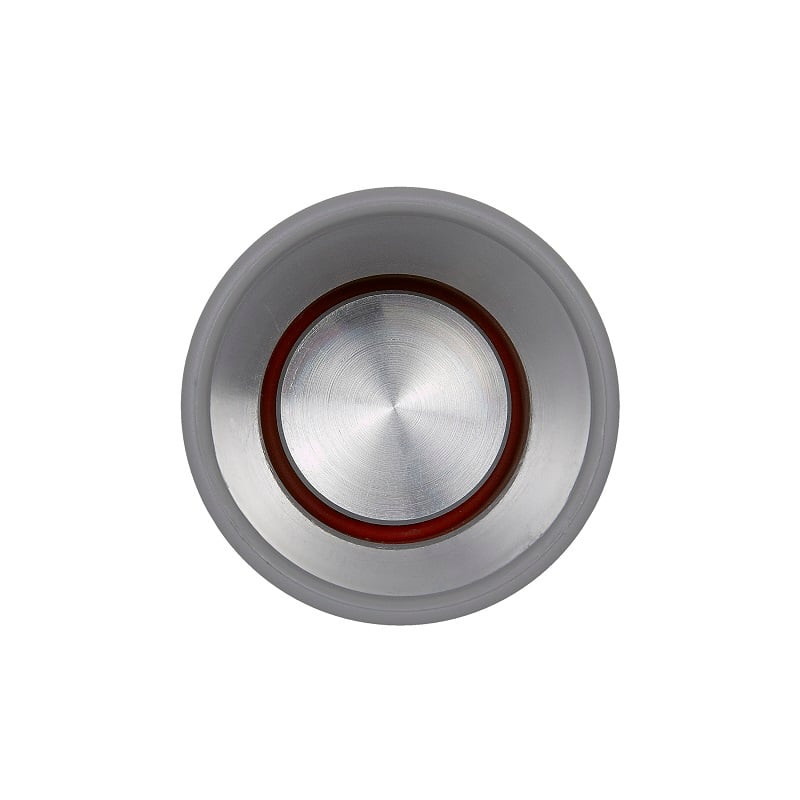

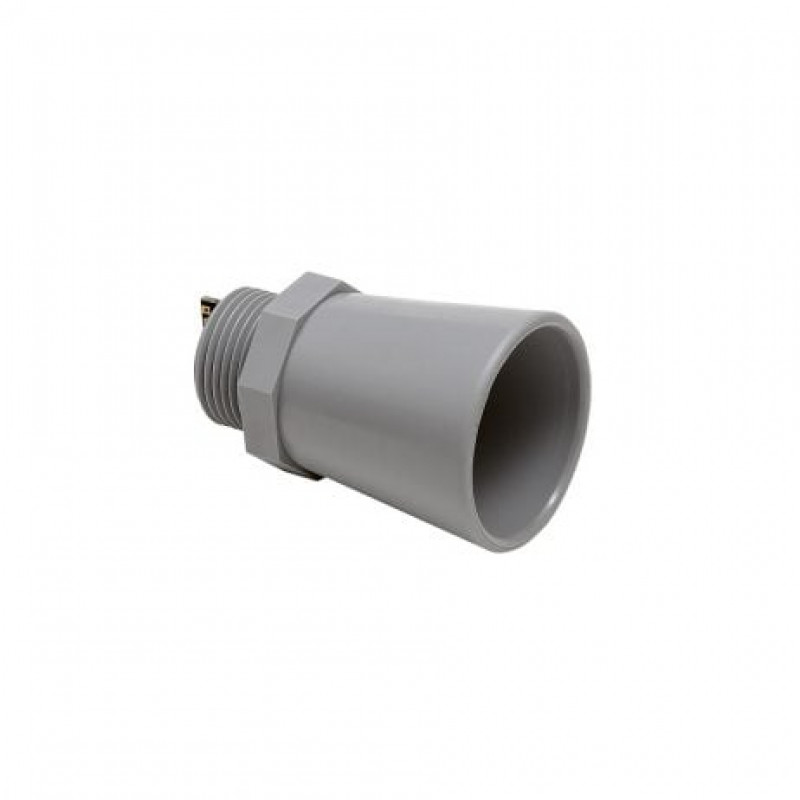

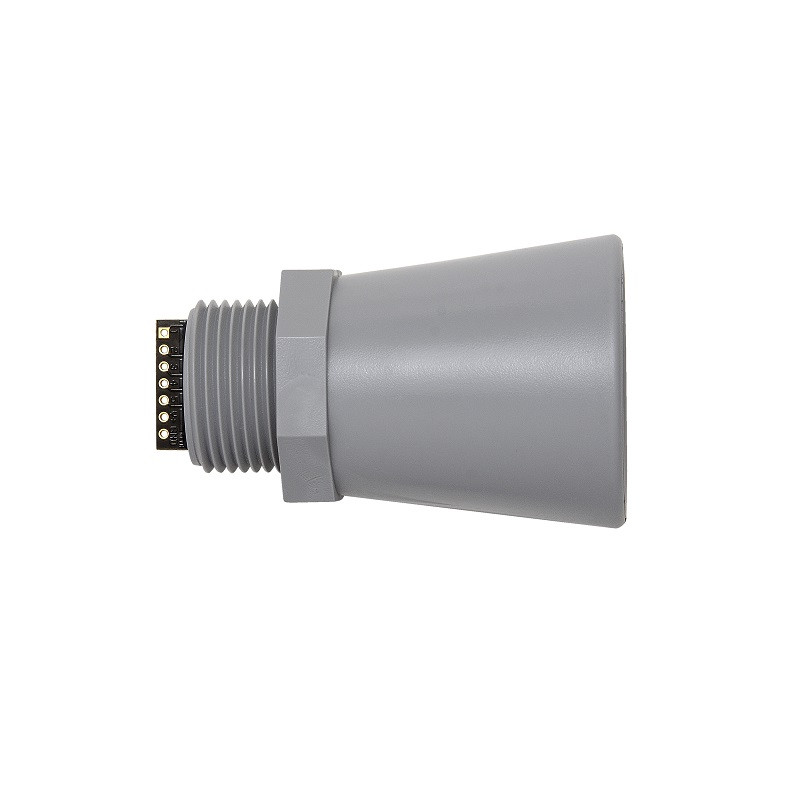

1 x MaxBotix MB7560 SCXL-MaxSonar-WR Ultrasonic Sensor
