This Normally open vibration sensor module is for a variety of vibration trigger function, reported theft alarm, smart car, electronic building blocks and so on. Please note that Normally open vibration sensor module in the induction of a small vibration when the trigger time is very short, not enough to drive the relay, some of the information display can be directly connected to the relay module, the actual use of ineffective.

When the product does not shake, the vibration switch is held in off state, the output is high and the green light does not shine and when the product vibrates, the vibration switch goes in momentary conduction mode, the output end of the output goes low and the green indicator light-up.

Output can be directly connected to the microcontroller through the microcontroller to detect high and low levels, thus to detect whether there is a vibration of the environment, play an alarming role.


Connection:-

VCC: Connect the positive power supply
GND: Connect to the negative power supply
DO: The digital signal output


Features :

  1. Using the company's high-sensitivity vibration switch, the default with SW-18015P vibration sensor.
  2. The comparator output, the signal clean, good waveform, driving ability, more than 15mA
  3. With a fixed bolt hole, easy to install.
  4. The use of wide voltage LM393 comparator.


Package Includes :

1 x Normally open vibration sensor module.


Specifications :-

Operating Voltage (VDC)

3.3 ~ 5

PCB Size ( L x W ) mm

32 x 14

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 57.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

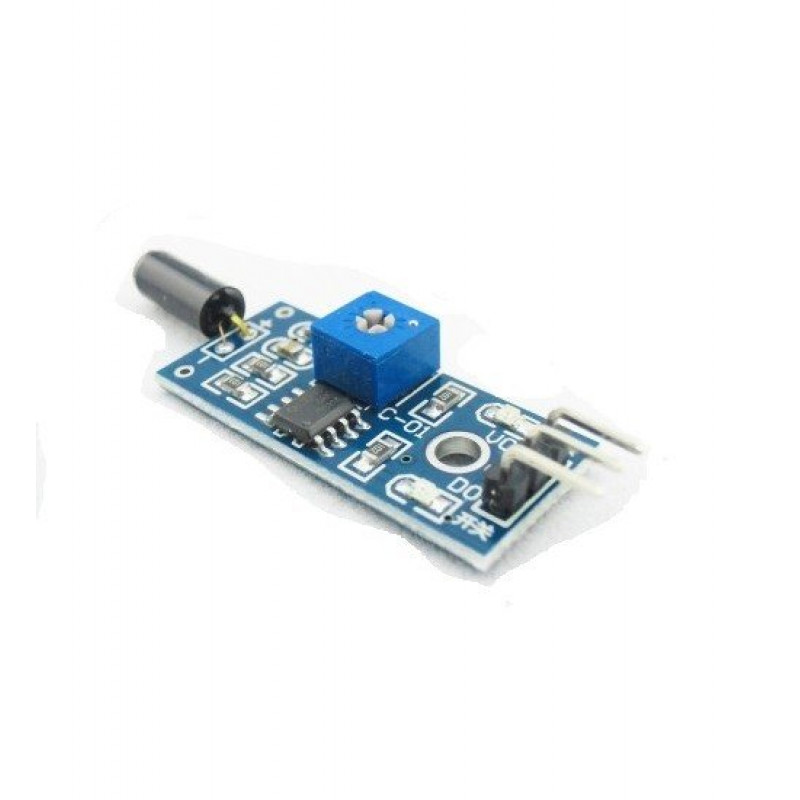

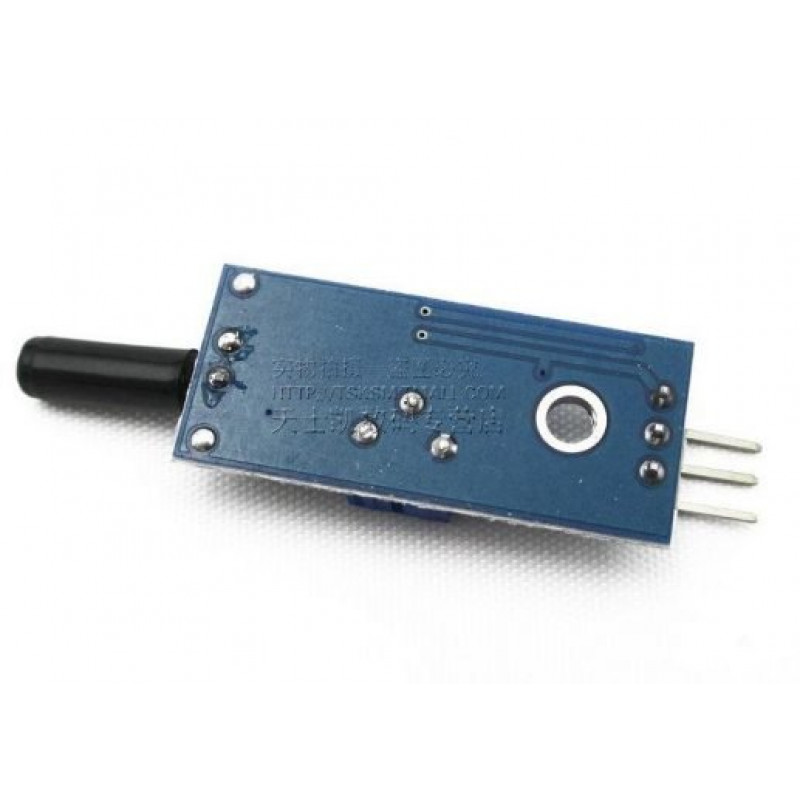

Normally open vibration sensor module
