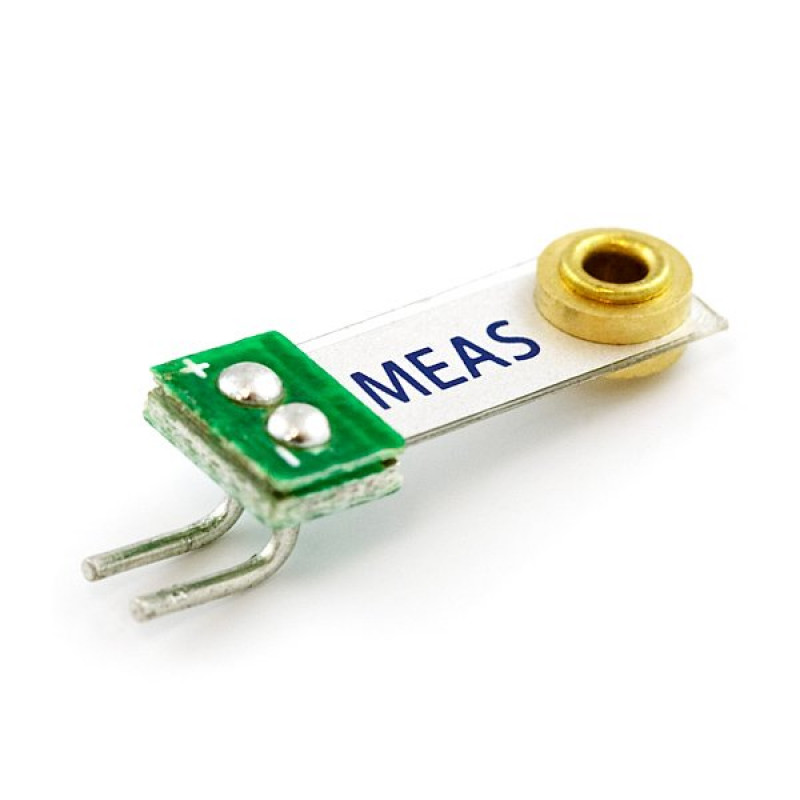

The Piezo Vibration Sensor Small Vertical from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and tap inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. It can also be used for impact sensing or a flexible switch.
It comes with solder pins that allow for vertical mounting.
Applications:
- Washing Machine Load Imbalance
- Vehicle Motion Sensor
- Anti-Theft Devices
- Vital Signs Monitoring
- Tamper Detection
- Impact Sensing
Features:
- Flexible PVDF Piezo Polymer Film.
- Wide dynamic range.
- Laminated for higher voltage output.
- Breadboard friendly leads.
Package Includes:
1 x Piezo Vibration Sensor Small Vertical.
Specifications :-
| Voltage Sensitivity (V/g) | 6 (open-circuit, at resonance) |
| Charge Sensitivity (pC/g) | 260 |
| Resonance Frequency (Hz) | 75 |
| Upper Limiting Frequency (+3 dB) (Hz) | 42 |
| Linearity (%) | 1 |
| Dissipation Factor | 0.018 |
| Storage Temperature (C) | -40 ~ +80 |
| Operating Temperature (C) | -20 ~ +60 |
| Length (mm) | 18 |
| Width (mm) | 7 |
| Height (mm) | 6 |
| Weight (gm) | 2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 624.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Piezo Vibration Sensor - Small Vertical
- Product Code: EC-5337
- Availability: 5
-
Rs.983.00
- (Excluding 18% GST)
