This switch at rest is open (off) state when it subjected to an external force touch with an appropriate shaking force, or its movement speed reaches appropriate centrifugal force (eccentric) heart, conductive pins will be in instantaneous conduction state to change the electrical characteristics, and when the external force disappears, electrical characteristics recovery to be open (off) state.

This switch by default is in an OFF resting state. When an external force is applied to achieve a proper vibration, the conductive pin will momentarily conduct and change to ON status, make changes in electric property, and disappear when the external force is withdrawn. Its omnidirectional in nature meaning any angle can trigger the sensor.

Pin Connection

Pin GND, connect to GND of the Arduino
Middle Pin +5 v, connect to Arduino +5
Pin S signal, connect to Arduino pin 10


Features :

  1. No direction, any angle can trigger the work.
  2. Sensitivity switches can be selected for the trigger sensitivity according to circuit requirements.
  3. This switch is suitable for the trigger of the small current circuit.


Package Includes :

1 x Vibration Switch Module


Specifications :-

Component Type

SW-18015P

Maximum Voltage(V)

12

Rated Heating Current(mA)

20

PCB Size ( L x W ) mm

20 x 15

Height (mm)

18

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 83.78 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

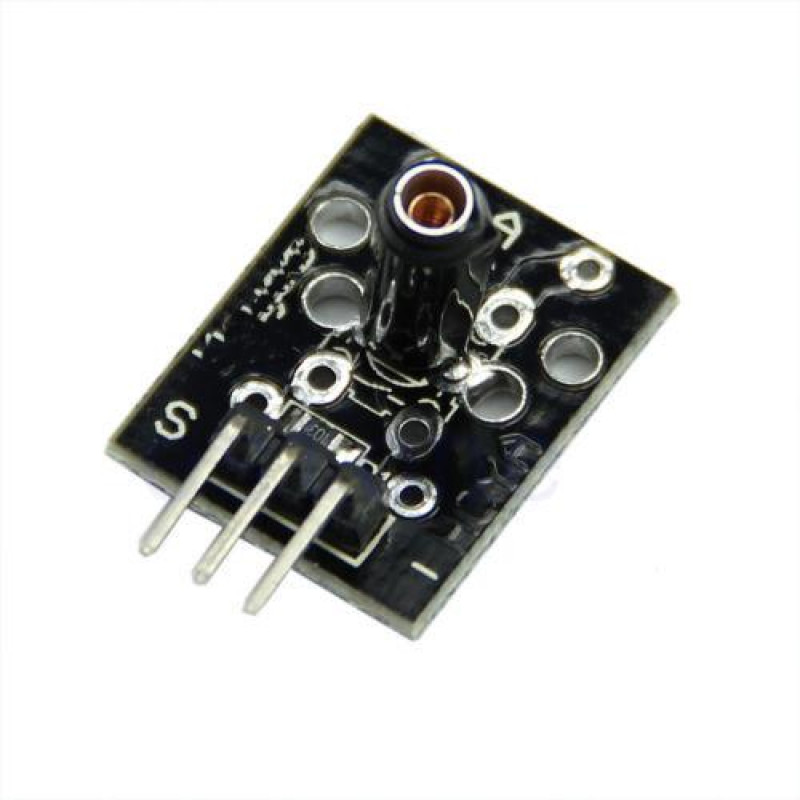

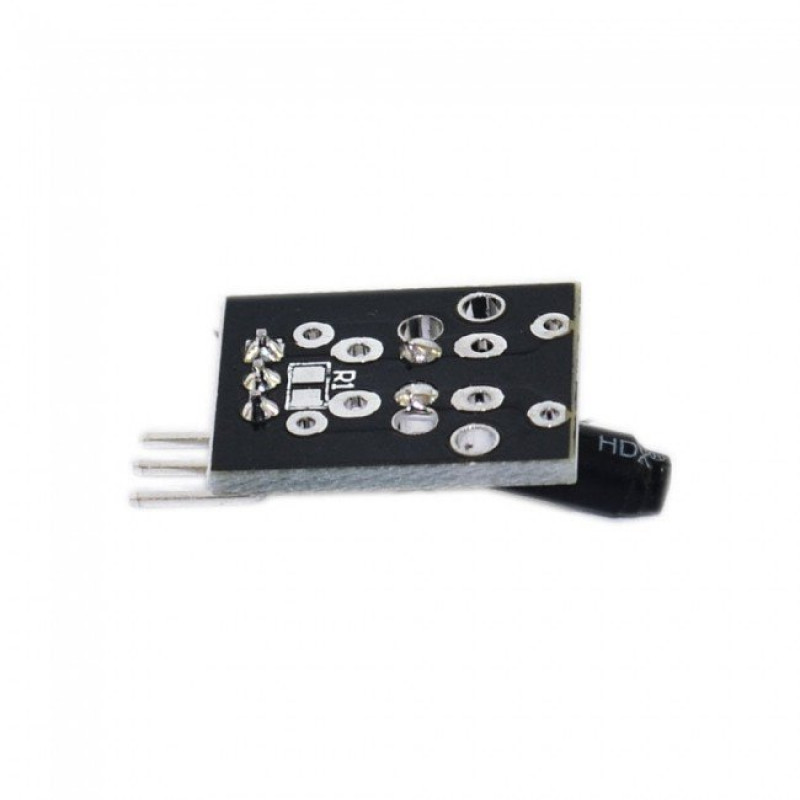

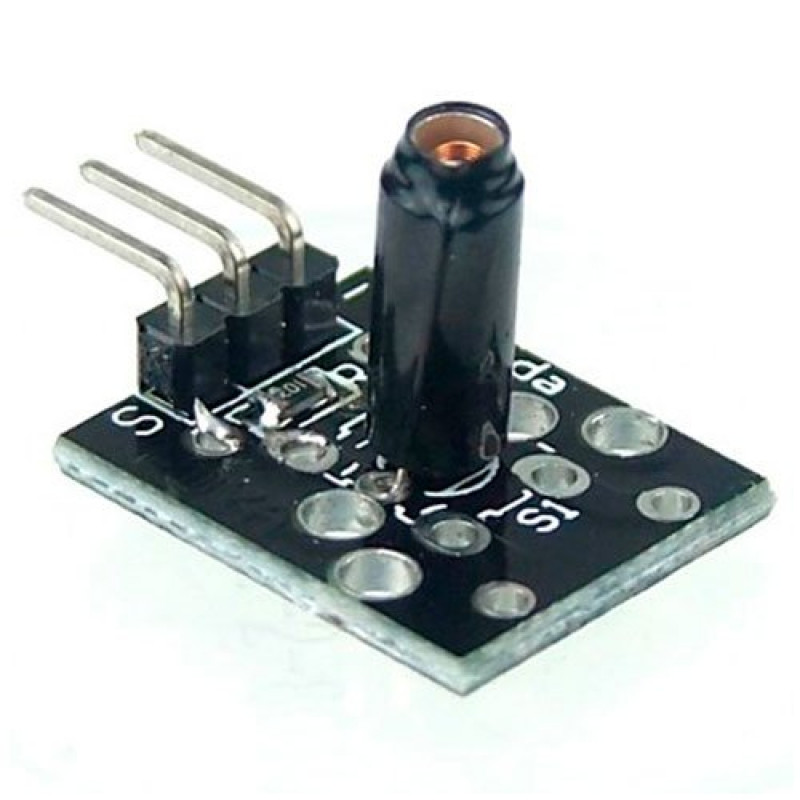

KY-002 Vibration Switch Module

  • Product Code: EC-5333
  • Availability: 11
  • Rs.30.00
  • (Excluding 18% GST)
