AW9523B use I2C interface, allows using 4 expansion boards at the same time by modifying the i2c address, expand up to 64 I/O ports.

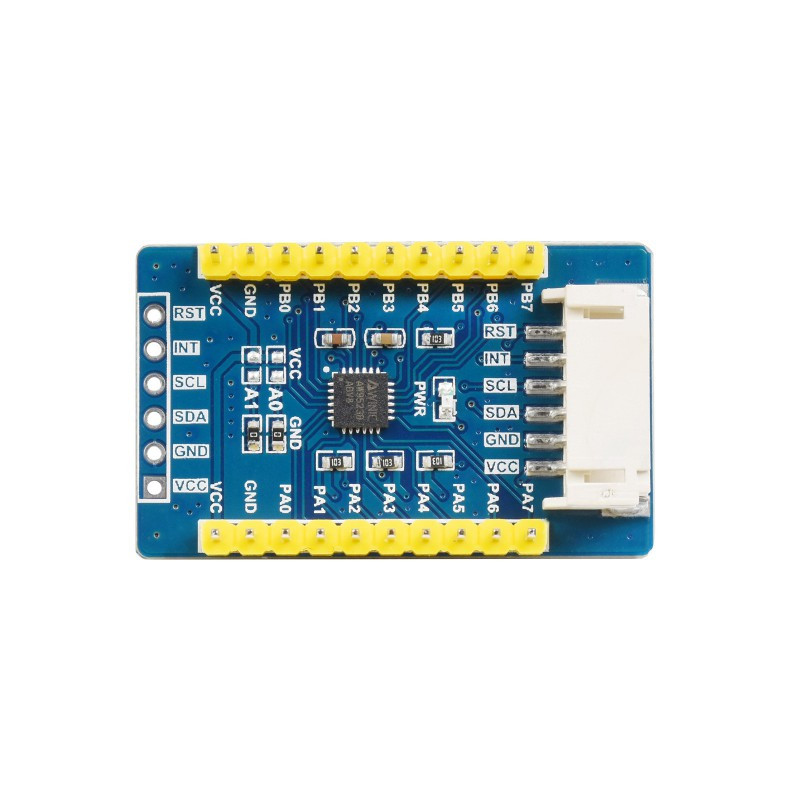

Pin configuration:
- VCC: Power input(3.3V/5V)
- GND: GND
- SDA: I2C Data input
- SCL: I2C Clock input
- INT: Interrupt output
- RST: Reset
Features:
- I2C bus, allows expanding 16 I/O ports by just using two wires
- Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
- Output interrupt (INT) signal when changing the state of an input port
- I2C address configurable by shorting the A0/A1 jumpers

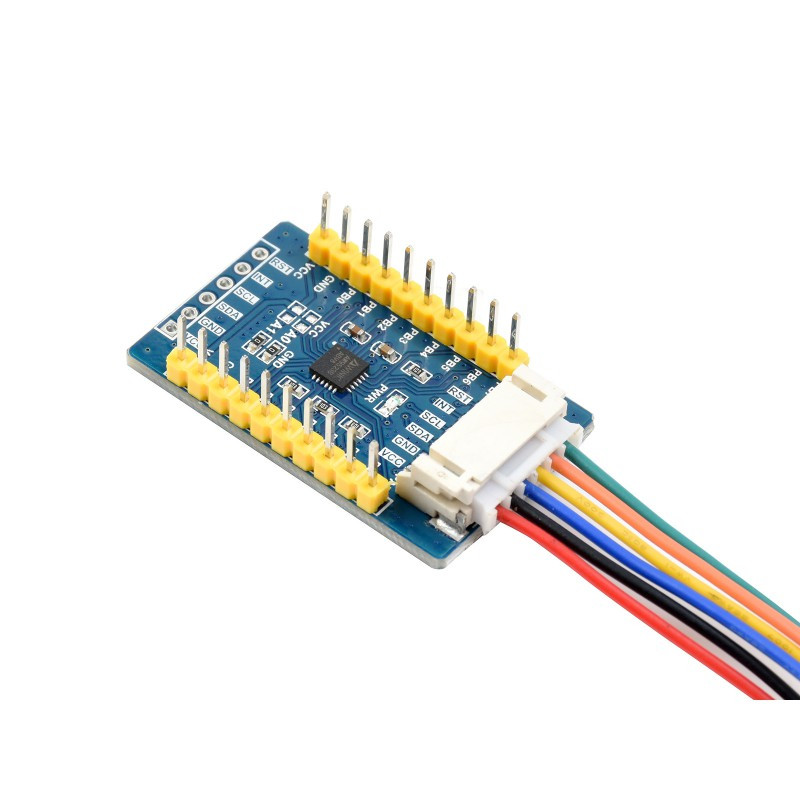

- Provides two connector options: PH2.0 header and/or solder pads, allows multi I2C modules to be stacked
- Onboard voltage translator, compatible with 3.3V/5V level
- Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Useful link:
To do Hardware and Software setup, please follow this tutorial.
Packages Includes:

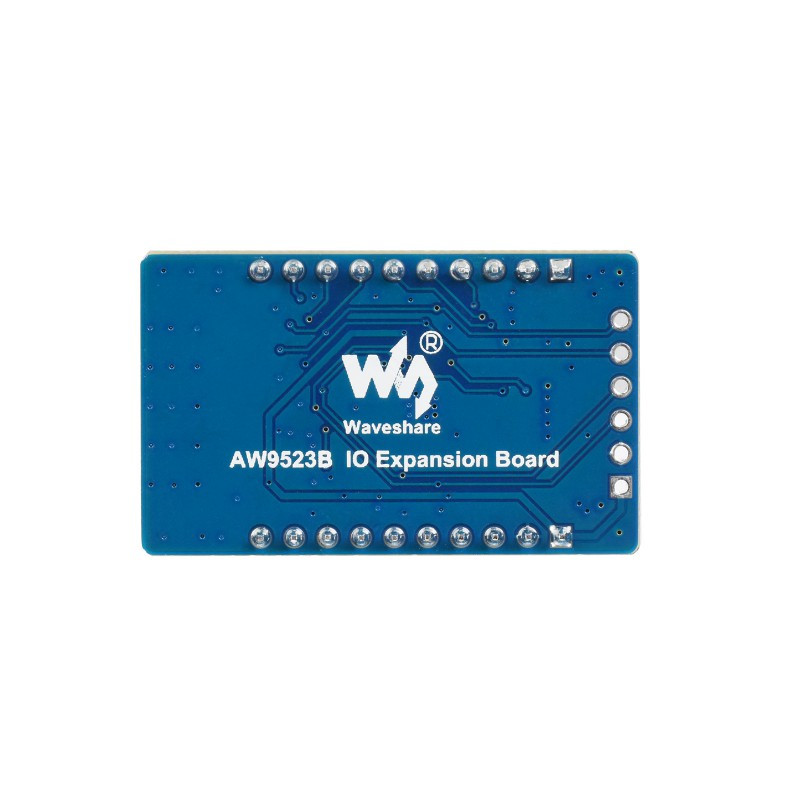

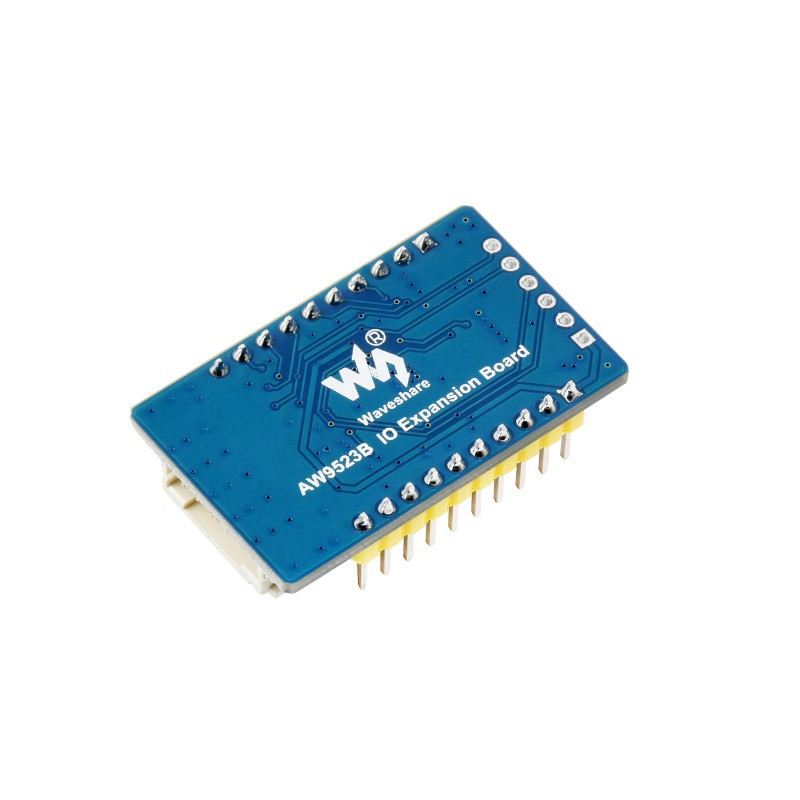

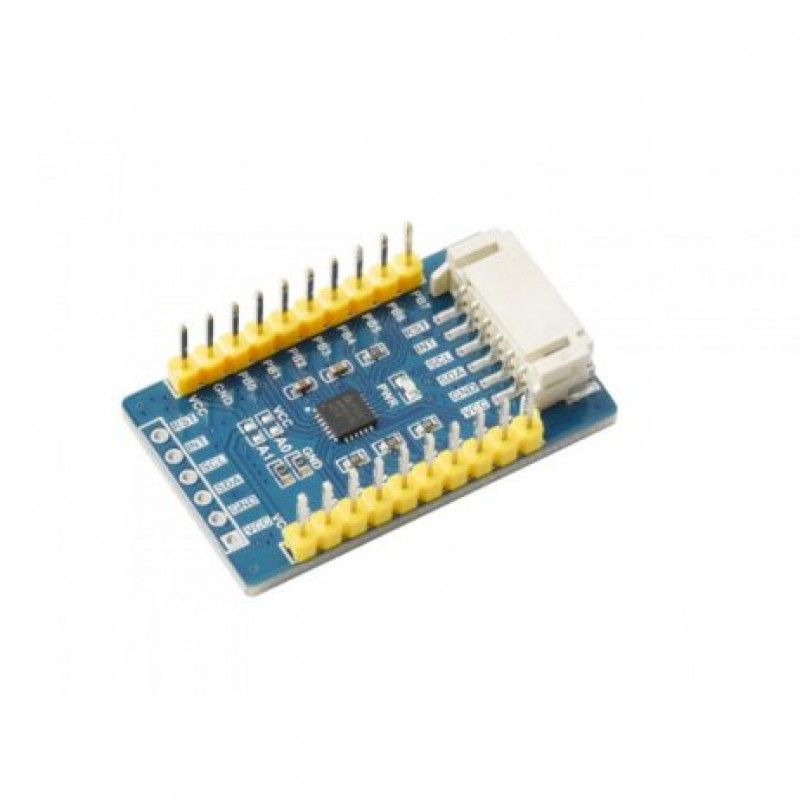

1 x Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 647.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

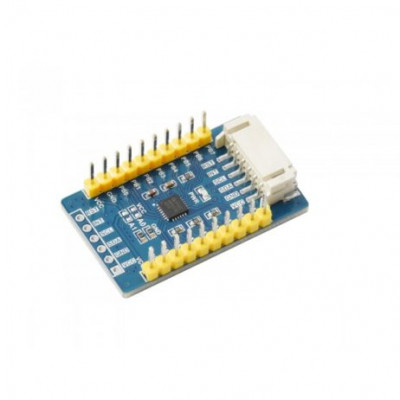

Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
- Product Code: EC-17788
- Availability: 23
-
Rs.549.00
- (Excluding 18% GST)
