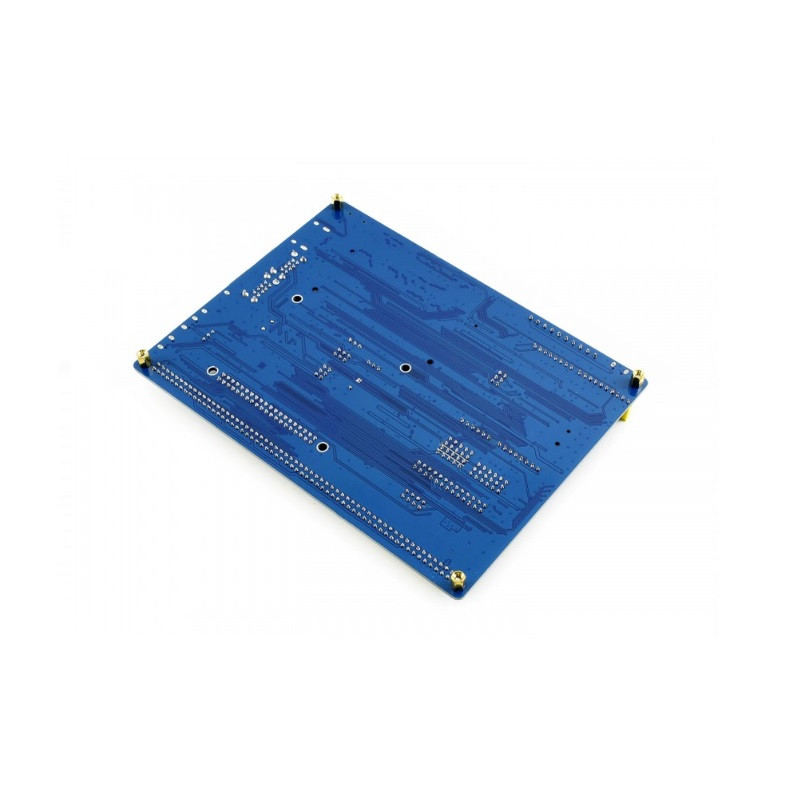

The Compute Module IO Board Plus is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. It is compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation, along with various common-use components.
Features:
- Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation.
- Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs.
- Arduino connectivity also supports Arduino shields.
- 1-WIRE interface, for connecting single-bus devices like DS18B20.
- 4 x keys, 4 x LEDs, and 1 x Buzzer, for I/O testing.
- Onboard USB HUB allows connecting more USB devices.
- IR receiver and IR remote control is available.
- Onboard USB TO UART, for serial debugging.
- Sensor interface.
- 10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors).
- 16-bit DAC, 2-ch.
- Onboard RTC, is one of the most common and useful functions.
- Compute Module GPIO header breakout all the Compute Module pins
- Raspberry Pi GPIO header for connecting Raspberry Pi HATs
- CSI interface to camera ports, for connecting Raspberry Pi Camera
- DSI interface to display ports, for connecting Raspberry Pi LCD
- RTC battery holder to supports CR1220 batteries
Package Includes:
1 x Waveshare Compute Module IO Board Plus, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 11090.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

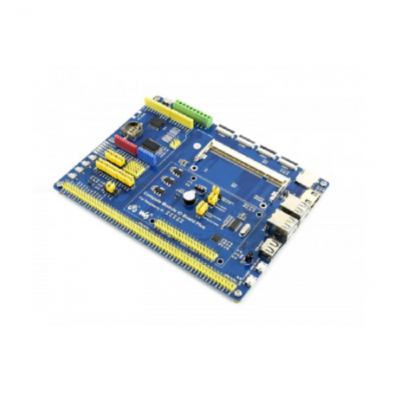

Waveshare Compute Module IO Board Plus, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L
- Product Code: EC-17931
- Availability: 5
-
Rs.9399.00
- (Excluding 18% GST)
