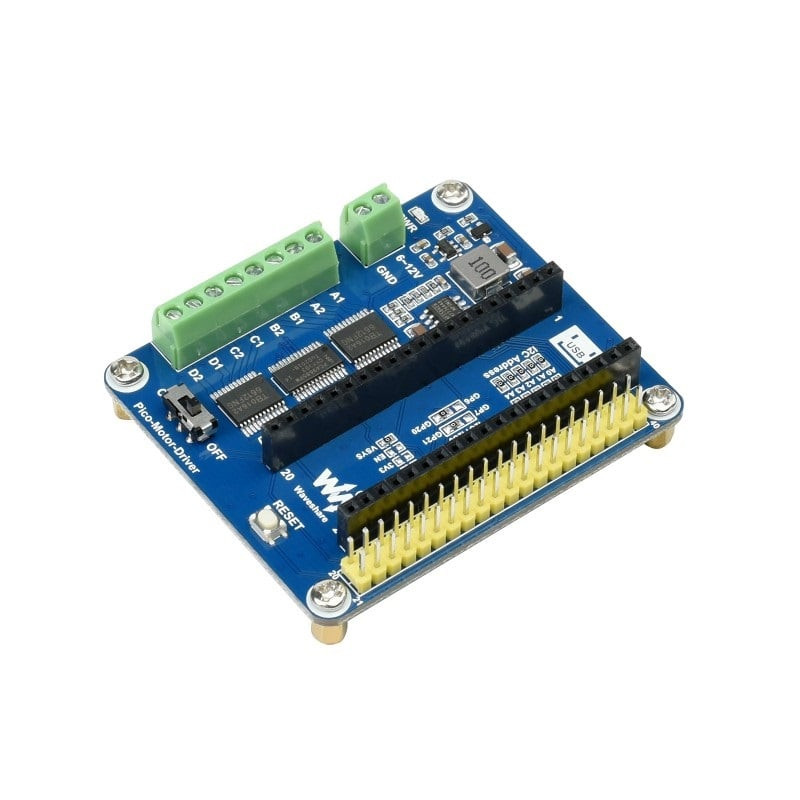

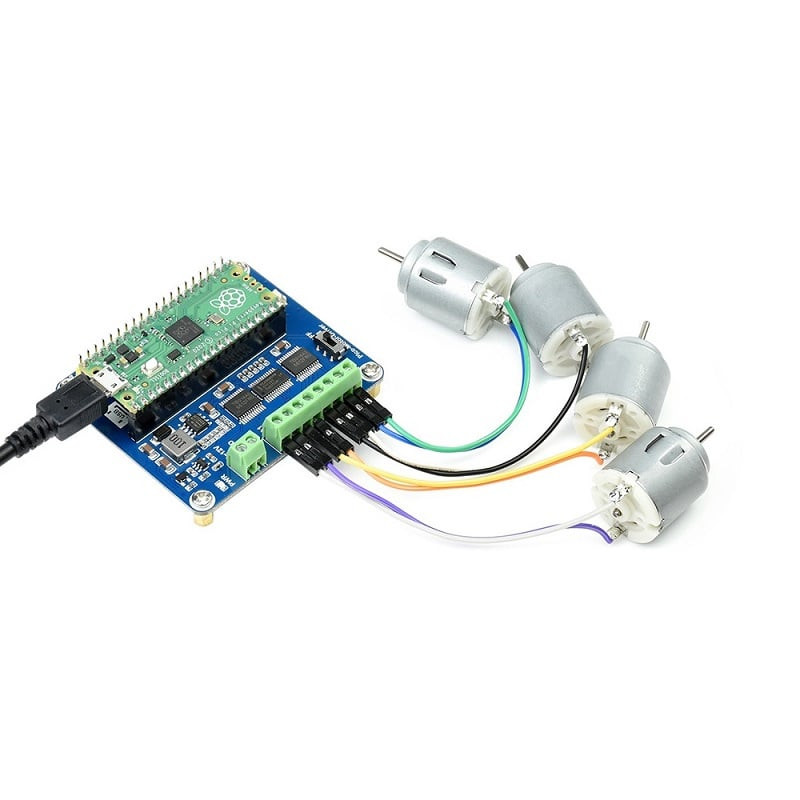

This DC motor driver has been designed specifically for the Raspberry Pi Pico and can PWM control up to 4 DC motors at a constant current of 1.2A (3.2A peak).
Power input between 6-12V can be applied, which conveniently powers the Raspberry Pi Pico thanks to the onboard 5V regulator. An on/off switch and power indicator LED add to this convenience, alongside a breakout section for unused GPIO pins.
Pico will need to have male headers pins to it with the pins pointing downwards and a USB cable to power up
Features:
- Compatible with the Raspberry Pi Pico
- I2C controlled, supports 32xdifferent I2C addresses by setting the 5 address jumpers
- Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
- Onboard TB6612FNG dual H-bridge motor driver
- Integrates 5V regulator, up to 3A output current, can be powered from a battery through the VIN terminal

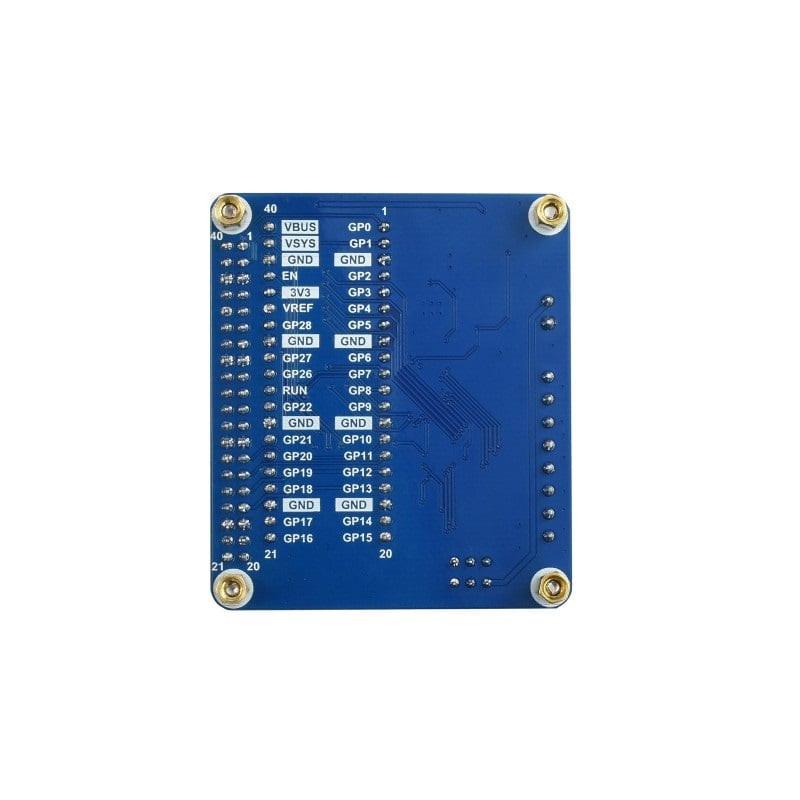

- Breaks out unused pins of the Pico for easy extension
Package Includes:
1 x Waveshare 4 DC Motor Driver HAT for Raspberry Pi Pico
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2140.52 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare DC Motor Driver Module for Raspberry Pi Pico Driving up to 4x DC Motors
- Product Code: EC-17791
- Availability: 15
-
Rs.1814.00
- (Excluding 18% GST)
