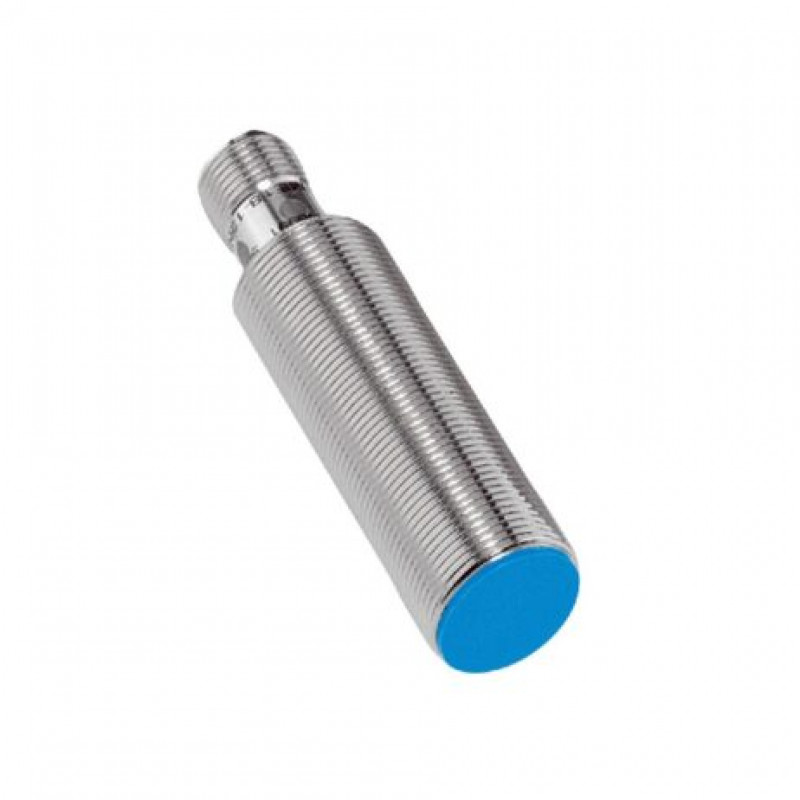

IME18-08BPOZC0S is an IME series inductive proximity sensor. It offers precise detection, less downtime, and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values for any number of production runs. IM sensors are completely encapsulated with hotmelt moulding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.
Features:
- Standard cylindrical thread design housing, M18 x 1 thread size, 18mm diameter.
- 8mm sensing range Sn, flush installation type, 1000Hz switching frequency.
- Male connector M12, 4-pin connection type, PNP switching output.
- 10VDC to 30VDC supply voltage.
- Economic standard for use in industrial environments.
Package Includes:
1 x SICK 1040970 IME18-08BPOZC0S Proximity Sensor, Inductive, 8 mm, PNP, M18 x 1, 10 to 30 VDC, IME Series
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SICK 1040970 IME18-08BPOZC0S Proximity Sensor, Inductive, 8 mm, PNP, M18 x 1, 10 to 30 VDC, IME Series
- Product Code: EC-29597
- Availability: Out Of Stock
-
Rs.1972.00
- (Excluding 18% GST)
