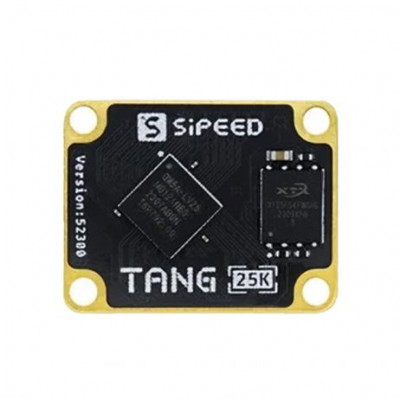

Tang Primer 25K SoM board is a compact, highly integrated FPGA SoM board. It integrates Gowin
GW5A-LV25MG121, 64Mbit SPI FLASH, DC-DC power supply, and BTB connector in an area smaller than the $1 coin. SoM board provides 76 GPIOs, 1 hard-core 4lane MIPI D-PHY, and 3 power outputs. By providing 5V power to the SOM and configuring it correctly, you can easily use the SoM.
Note: These images are for reference.
Features:
- Integrated Components: Gowin GW5A-LV25MG121, 64Mbit SPI Flash, DC-DC power supply.
- Compact Design: Smaller than a coin.
- I/O Capabilities: 76 GPIOs, 1 hard-core 4-lane MIPI D-PHY.
- Power Outputs: Three distinct power outputs.
- Easy to Use: Simple 5V power integration.
- High Integration: BTB connector for seamless connectivity.
Package Includes:
1 x Sipeed Tang Primer 25K Core Board GOWIN GW5A RISCV FPGA Development Board PMOD SDRAM
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Sipeed Tang Primer 25K Core Board GOWIN GW5A RISCV FPGA Development Board PMOD SDRAM
- Product Code: EC-25964
- Availability: Out Of Stock
-
Rs.1984.00
- (Excluding 18% GST)
