  • SPDT Slide Switch

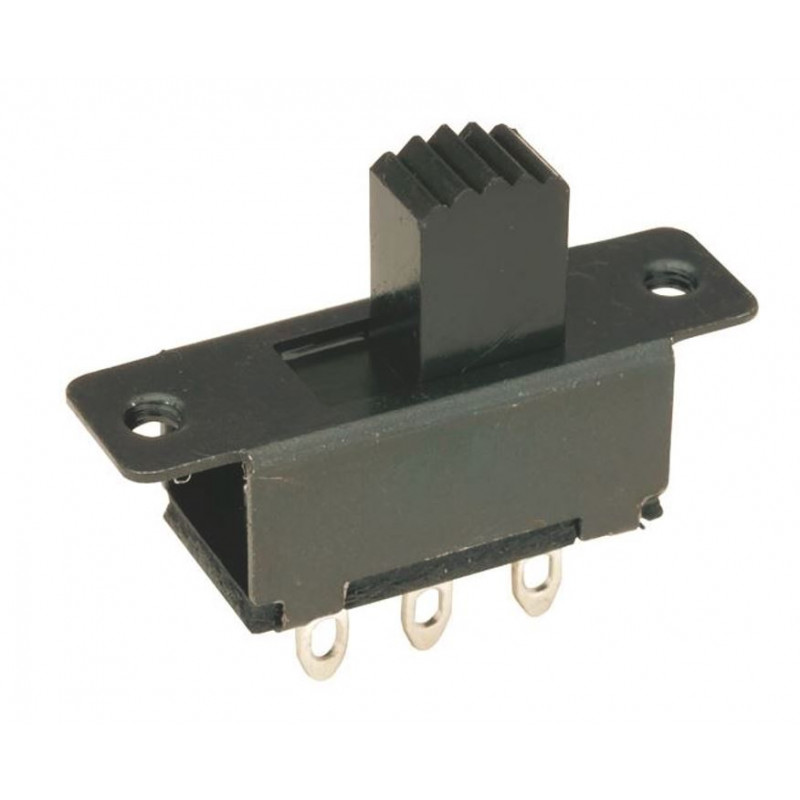

SPDT Slide Switch An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. Adding another pole to the SPDT creates a Single Pole, double-throw (SPDT) switch. Basically, two SPDT switches, which can control two separate circuits, but are always switched together by a single actuator. SPDTs should have six terminals. DPDT is a Single pole double throw switch; this is equivalent to two SPDT switches. It routes two separate circuits, connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which each of the two contacts can be routed. This is a multipurpose STDP Slide Switch. It is medium-sided and perfect for mounting on boards and on enclosures, for which it comes with two holes on its body. Use this as an On/Off switch or just as a general-purpose switch. This switch can also be used to control the direction of a DC Motor. This Product Known as Switch Slide Mini SPDT, SPDT Slide Switch 3 Pin, Slide Switch – SPDT (3pin) On/On, 3 Pin Slide Switch, 3 Pin SPDT Slide Switch.


Applications:-

  1. These are very small SPDT slide switches
  2. There are holes for installation at each end of the switch
  3. They can be used for small power electronic projects


Specifications:-

  • Material : Plastic and Metal
  • Product Name : Slide Switch
  • Contact Type : SPDT
  • Voltage Max : 50V
  • Current Max : 0.5A
  • Position : 2
  • Terminal Pins : 3
  • Contact Resistance : 20M


Package Includes:-

1 x SPDT Slide Switch

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 8.26 (Inclusive of all Taxes)
