These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.
Main Application of SMB Connectors:
Aerospace and Defense: Test Stands
Medical:Telemetry
Commercial Vehicle:GPS
Telecommunications:Wireless Base Stations, Cellular Mobile System
Data/Communications:Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
Features:
- Cable Connector,plug/male, Straight/180, 50, Crimp Type;
- Snap-on coupling design for fast installation;
- With broadband performance and low reflection;
- To reduce your Cost by using die casting process in non-critical areas.
Electrical Characteristics
- Impedance 50 ohm
- Frequency Range: 0~4 GHz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage:
1000 V rmsmin for RG316, RG402
750 V rms min. for RG178 - Working Voltage:
335 V rms max. for RG316, RG402
250 V rms max. for RG178 - Center Contact Resistance 6.0 m (Milliohms max.)
- Outer Contact Resistance 1.5 m (Milliohms max.)
- Insulation Resistance 1000 m(Megohms min.)
Mechanical Characteristics
- Coupling:Snap-on
- Contact Retention: 4lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -65C ~ +155C
- Vibration:MIL-STD-202 Meth.204
- Corrosion Resistance:MIL-STD-202 Meth. 101
Package Includes:
1 x For Sale SMB Connector Crimp Type Male Straight For Cable
Specifications:
| Brand | ElecBee |
| Orientation | Straight |
| Gender | Male |
| Mounting Type | Cable |
| Termination Style | Solder Type |
| Mounting Feature | None |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper |
| Body Plating | Nickel Plating |
| Impedance | 50 ohms |
| Shield Termination | Crimp |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 187.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

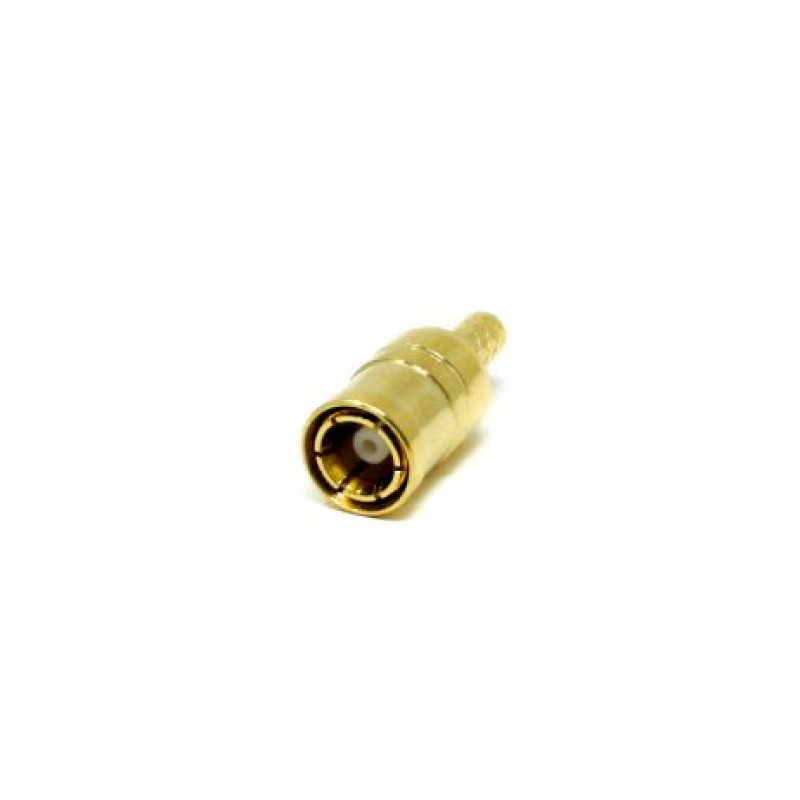

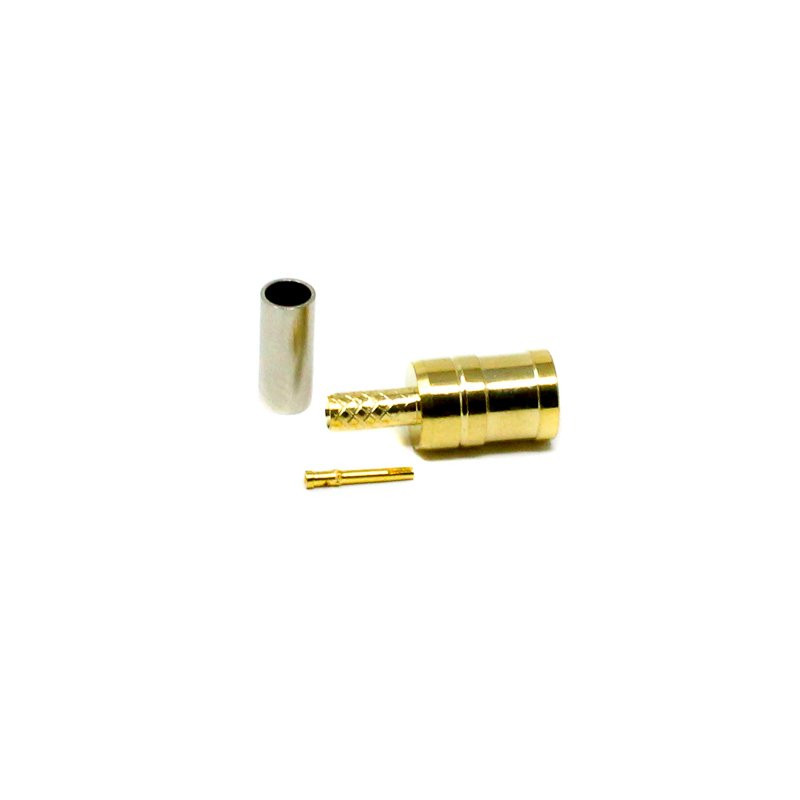

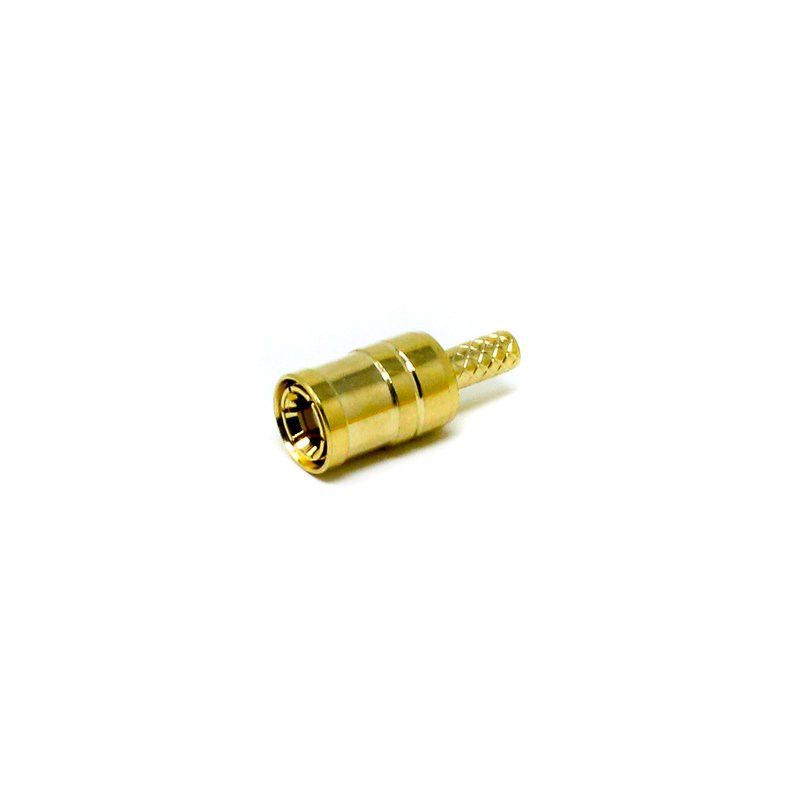

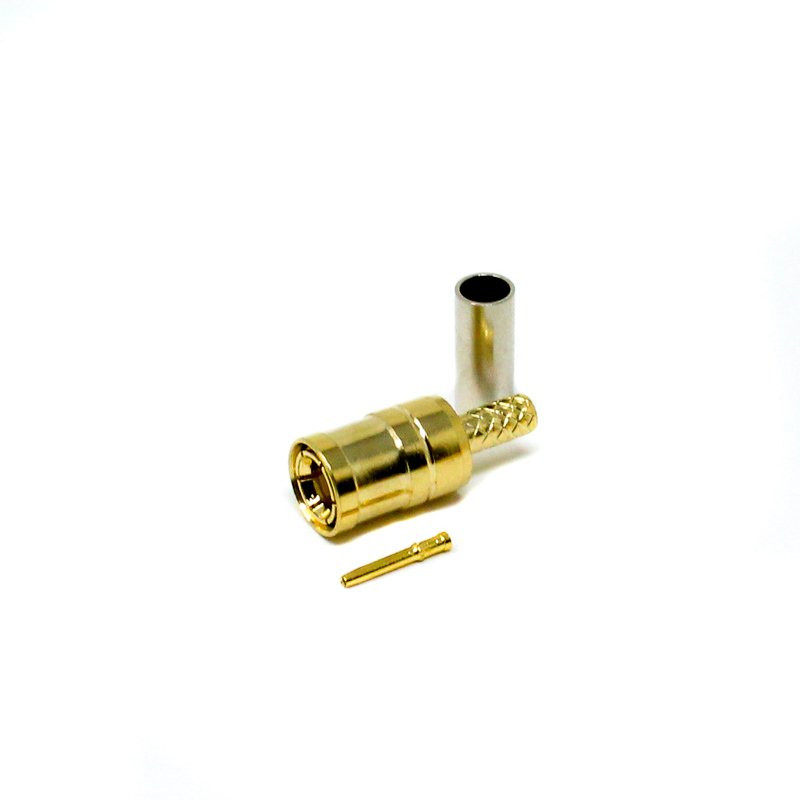

SMB Connector Crimp Type Male Straight for Cable
- Product Code: EC-5725
- Availability: Out Of Stock
-
Rs.159.00
- (Excluding 18% GST)
