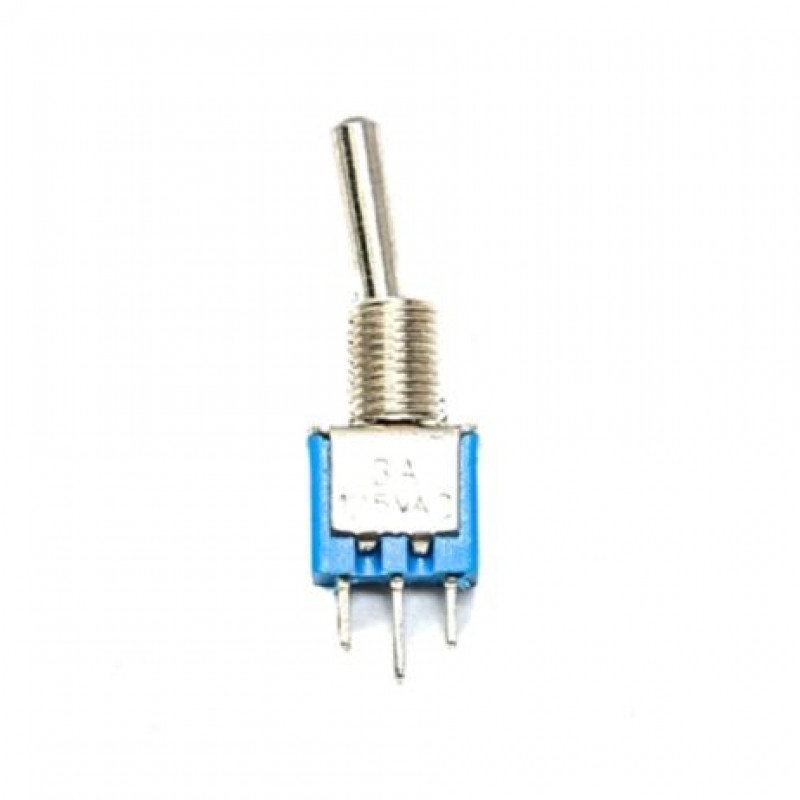

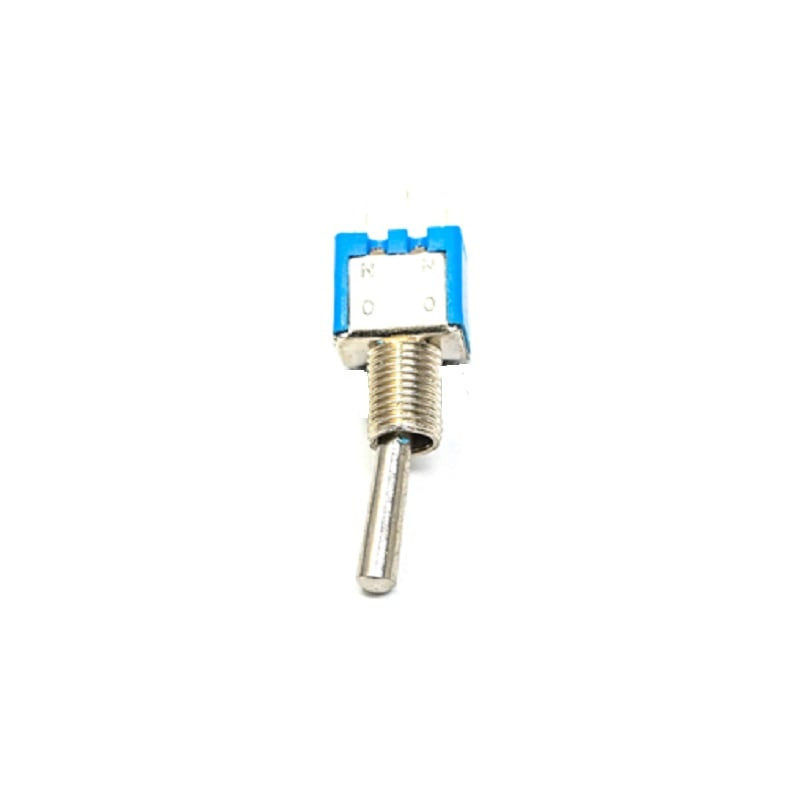

SMTS-102-Sub Miniature Toggle Switch-3Pin (ON-ON). The SMTS sub-miniature toggle switches are offered in both SPDT and DPDT. These mini toggle switch come with a variety of switching functions and bushing options. Eight different termination options are available.
Applications include telecommunications, instrumentation, networking, and medical equipment devices.
Specifications:
- Housing: PA66
- Lever: Brass with Nickel plated
- Terminal: Brass with sliver plated
- Torque: Max. 5kgcm (70 ounceinch)
- Rating: 3A 125VAC/1.5A 250VAC
- Contact Resistance: 20m max
- Electrical Life: 10,000
- Cycles Mechanical Life: 100,000 Cycles
- Dielectric strength: 1000VAC 1 minute
- Operating Temperature: -25~+85
- Insulation Resistance: 1000m min (500VDC)
- OEM or ODM: Available
Package Includes:
1 x SMTS-102-Sub Miniature Toggle Switch-3Pin (ON-ON)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

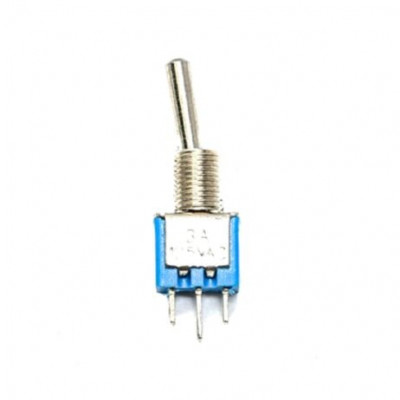

SMTS-102-Sub Miniature Toggle Switch-3Pin(ON-ON)
- Product Code: EC-30137
- Availability: Out Of Stock
-
Rs.27.00
- (Excluding 18% GST)
