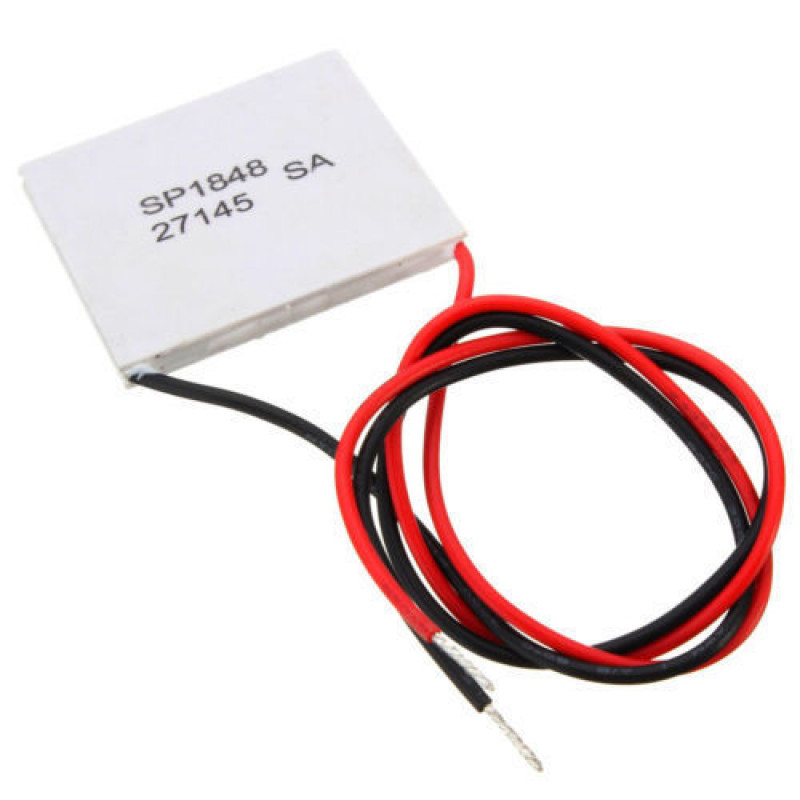

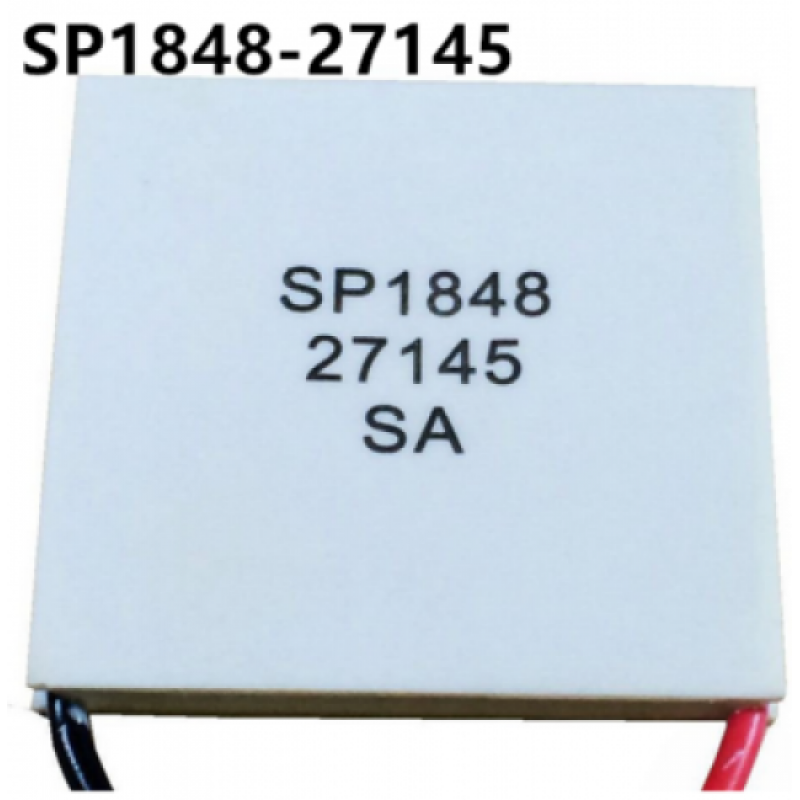

This magical cells based on the Peltier effect are capable of generating electric power. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module operates maximum up to150C which will give you different voltage and current outputs at different values of temperature.

Thermoelectric Power Generators also are known as TEG or Peltier Module create a detects temperature differential on each side. You can take the advantage of this temperature differential detection to generate electricity.

After applying the heat on one side and cold on other sidethe device will start generatingthevoltage which depends upon thevalue of applied heat. TheSP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module will generate the moderate amount of voltage with mA of current.

A Thermoelectric Generator (TEG) module is a semiconductor-based electronic component that functions as a small generator.

Temperature (C) 20 40 60 80 100
Open circuit voltage (V) 0.97 1.8 2.4 3.6 4.8
Current (mA) 225 368 469 558 669


Operating Tips:
  1. Do not exceed the maximum operating temperature of the module.
  2. Life expectancy: 200,000 hours.
  3. Failure rate based on longtime testings: 0.2%.

Note:-
  1. MODEL NUMBER SIDE IS EXPOSED TO HEAT-SINK or ICE AND OPPOSITE SIDE TO HEAT.
  2. Place 2-3 drops of grease compound on both sides of TEG Module


Features of SP1848-27145 Thermoelectric Power Generator TEG 150°C Peltier Module:-

  1. Small and lightweight, convenient for use.
  2. Designed specifically for power generation.
  3. Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
  4. High-temperature 150C, with NM static protection.
  5. Quality tested cooling cells.
  6. Simple to install and operate.
  7. with 5v Booster board you can charge the cell phone


Specifications of SP1848-27145 Thermoelectric Power Generator TEG 150°C Peltier Module:-

Model

SP1848-27145

Open Circuit Voltage (V)

4.8

Operating Temperature (C)

0 to 150

Maximum Temperature(C)

150

Wire Length(mm)

350

Length (mm)

40

Width (mm)

40

Height (mm)

3.6

Weight(gm)

30



Package Includes :

1 xSP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 253.7 (Inclusive of all Taxes)
