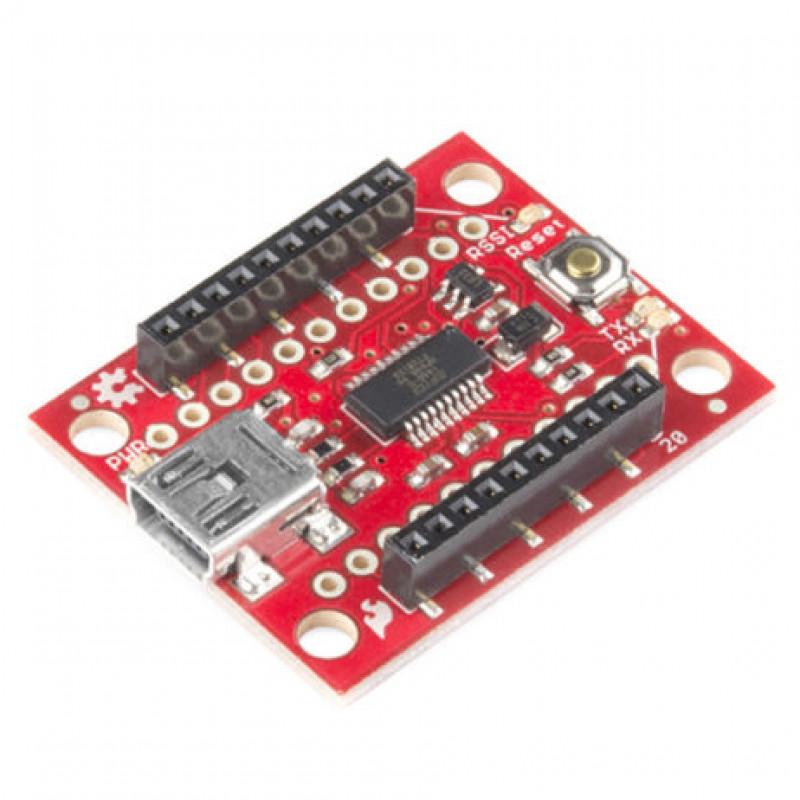

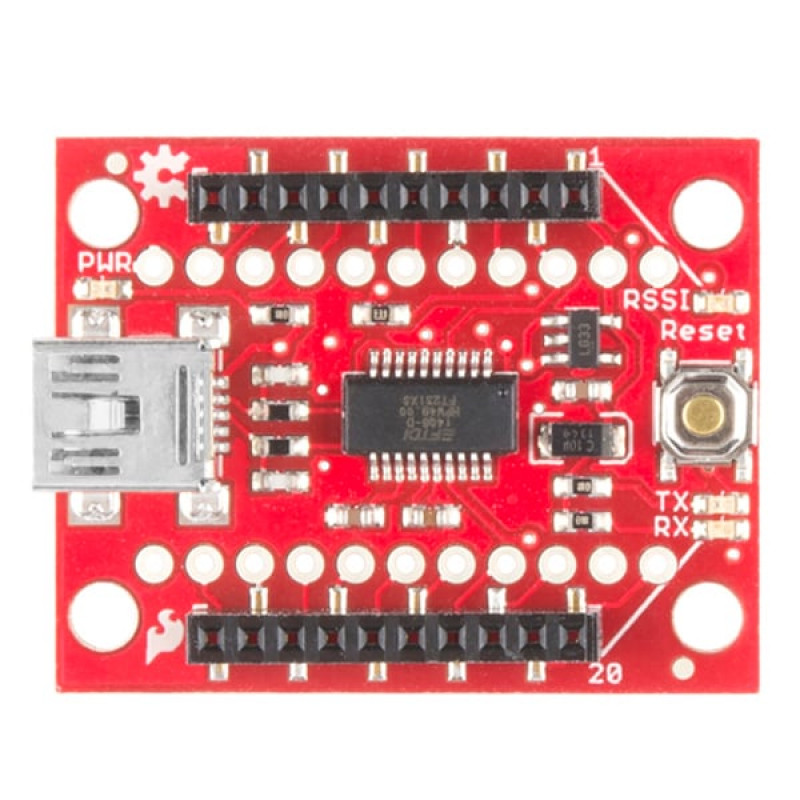

This is a simple to use, USB to serial base unit for the Digi X Bee line. This unit works with all X Bee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the X Bee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the X Bee unit. The highlight of this board is an FT231X USB-to-Serial converter. Thats what translates data between your computer and the X Bee.

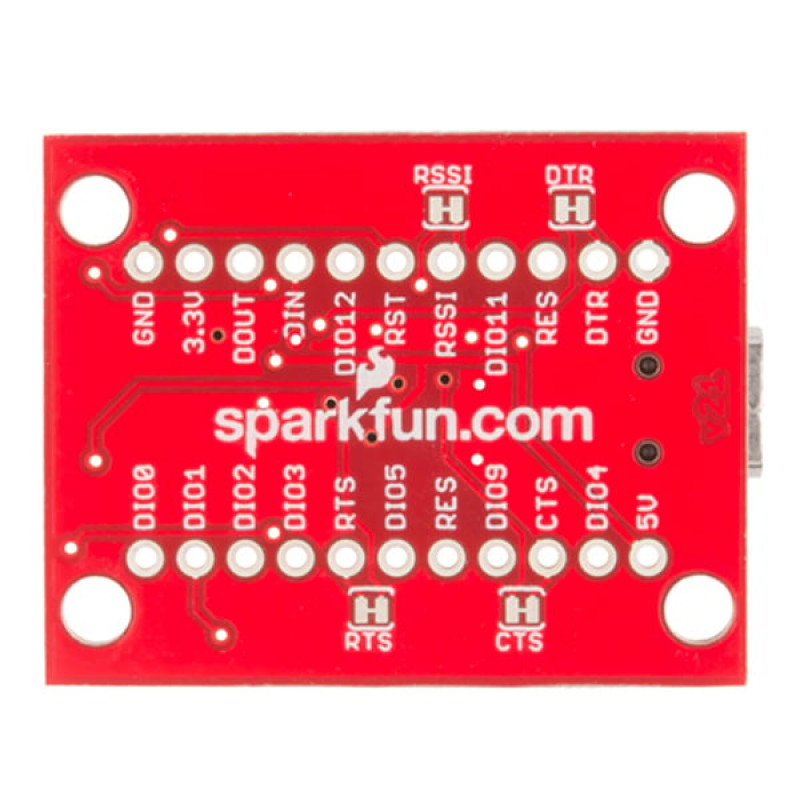

Theres also a reset button, and a voltage regulator to supply the X Bee with plenty of power. In addition, there are four LEDs thatll help if you ever need to debug your X Bee: RX, TX, RSSI (signal-strength indicator), and power indicator. This board also breaks out each of the X Bees I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the X Bees extended functionality, you can solder some header pins into those, or even just solder some wire.
Features:
- USB to serial base unit for XBee modules
- Works with XBee modules Series 1 and Series 2.5, standard and Pro
- FT231X USB-to-Serial converter
Package Includes:
1 X Spark-fun XBee Explorer USB
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

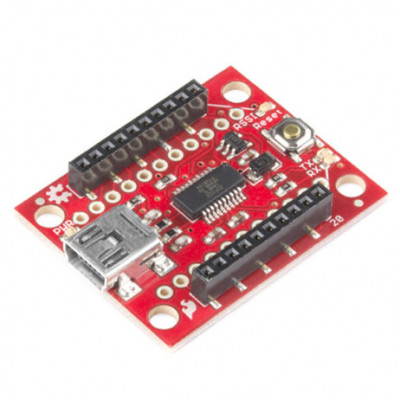

Spark-Fun XBee Explorer USB
- Product Code: EC-23573
- Availability: Out Of Stock
-
Rs.2198.00
- (Excluding 18% GST)
