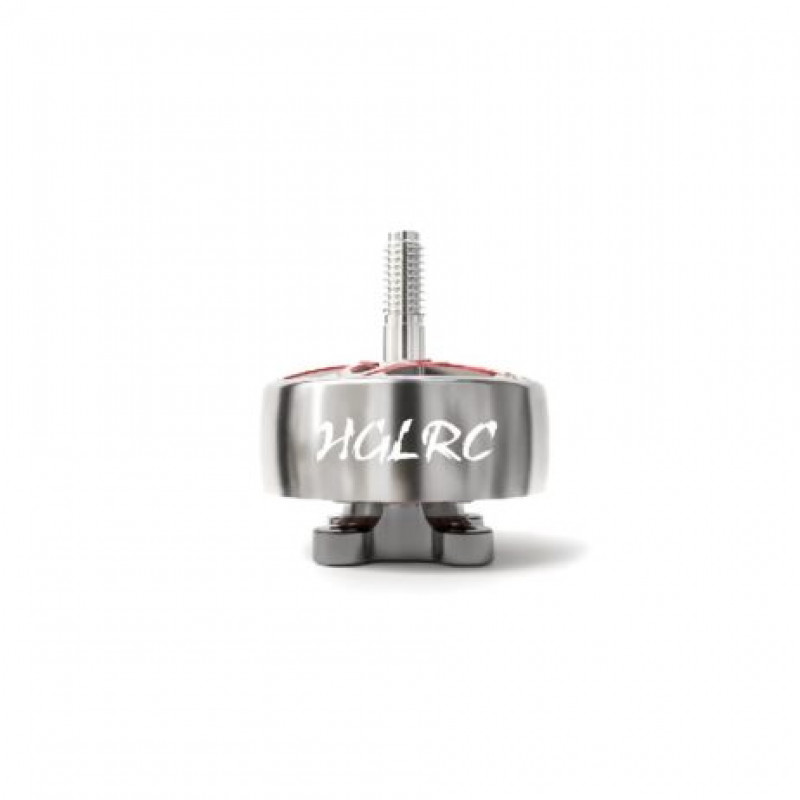

The SPECTER 2306.5-1900KV Motor is an advanced brushless motor crafted for high-end drone and multirotor applications. Boasting a KV rating of 1900, it combines exceptional torque and efficiency, ideal for stable and controlled aerial movements. Its 2306.5 form factor accommodates enhanced cooling and durability. This motor caters to enthusiasts seeking powerful, reliable, and precise performance, making it well-suited for various FPV racing and freestyle endeavors.

Specifications:

1. Motor model: 2306.5
2. KV value: 1900KV
3. Magnetic pole: 12N14P
4. Magnetic steel: N52H
5. Stator: Kawasaki 1200
6. Rotor: 7075
7. Bearing: ISC
8. Winding: 260 high-temperature resistant copper wire
9. Output shaft: M5x13.2mm
10. Max current: 47.7A
11. Max power: 1145W
12. Suitable propeller: 5-6 inch
13. Rated voltage: 5-6S

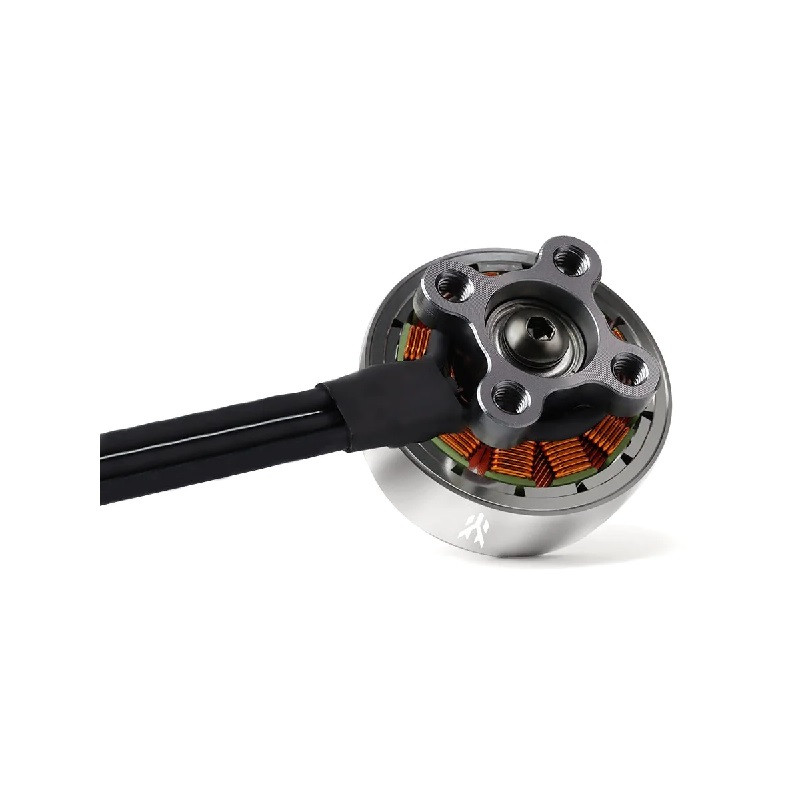

14. Outlet specification: 20AWG-150mm

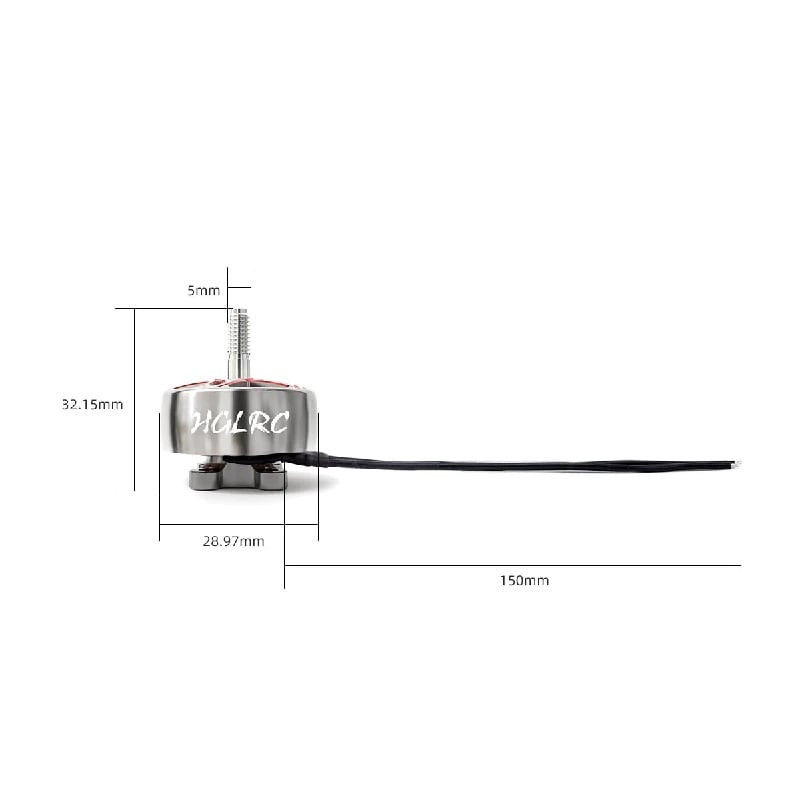

15. Motor size: 28.9732.15mm
16. Mounting hole: 1616 (M3)
17. Weight: 34.2g (including wire)

Features:

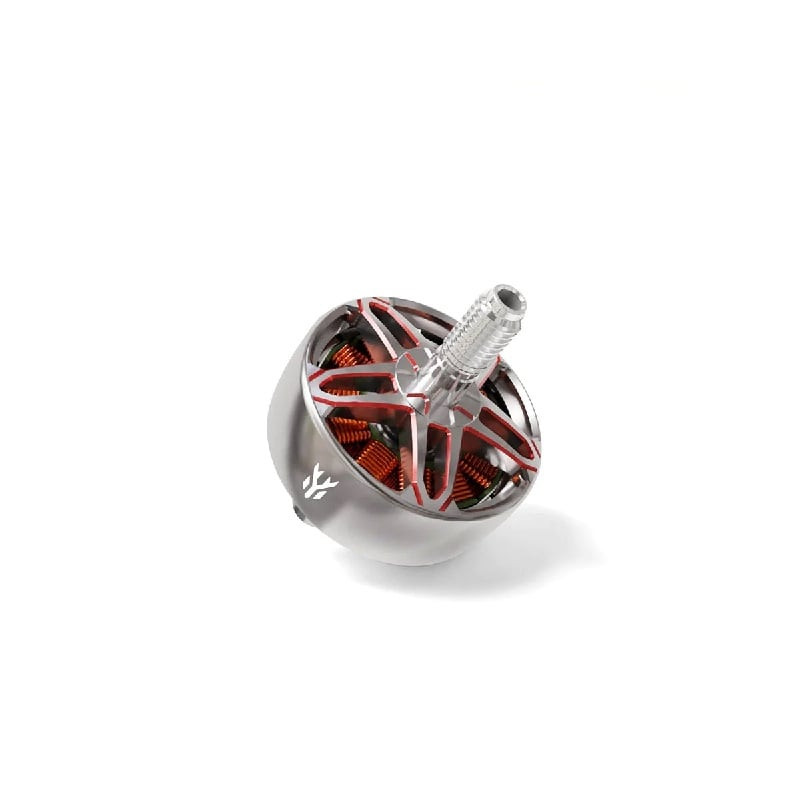

1. Brand new rotor appearance design, an anodized two-color process
2. 7075 aviation aluminum material, high-strength one-piece rotor
3. Customized N52H curved magnetic steel, strong magnetism, large torque
4. Super high temperature resistant 260 copper wire winding, the motor runs more stably

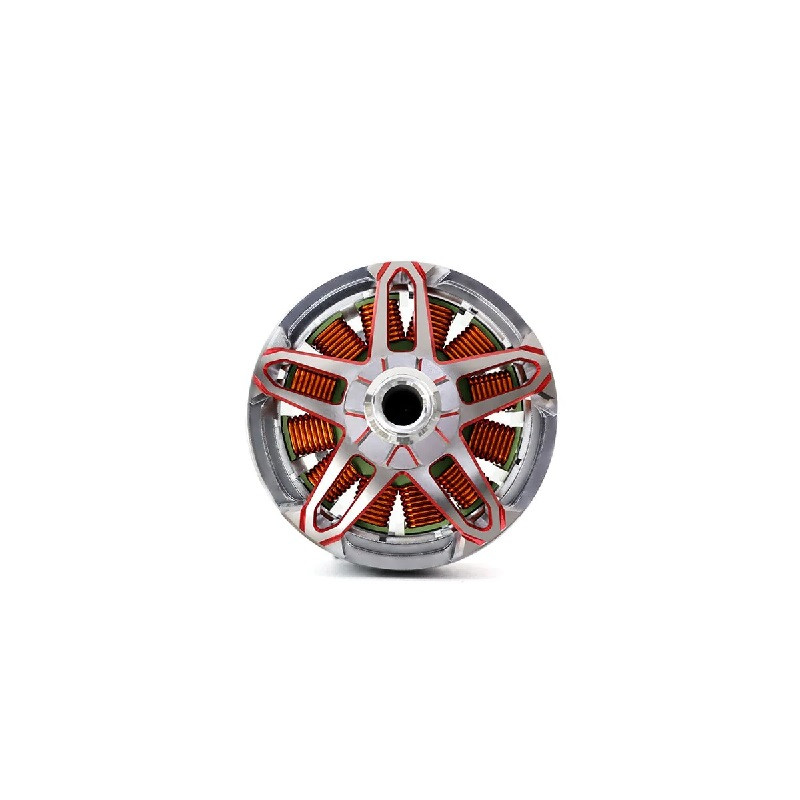

5. Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency
6. New optimized adjustment and calibration, maintain high torque at low speed, linear power output when the throttle 7. Changes rapidly, precise, and quick response when turning
8. Titanium alloy shaft, high strength and reduce the weight of the drone
9. Applicable to 5inch freestyle drones and 5inch racing drone

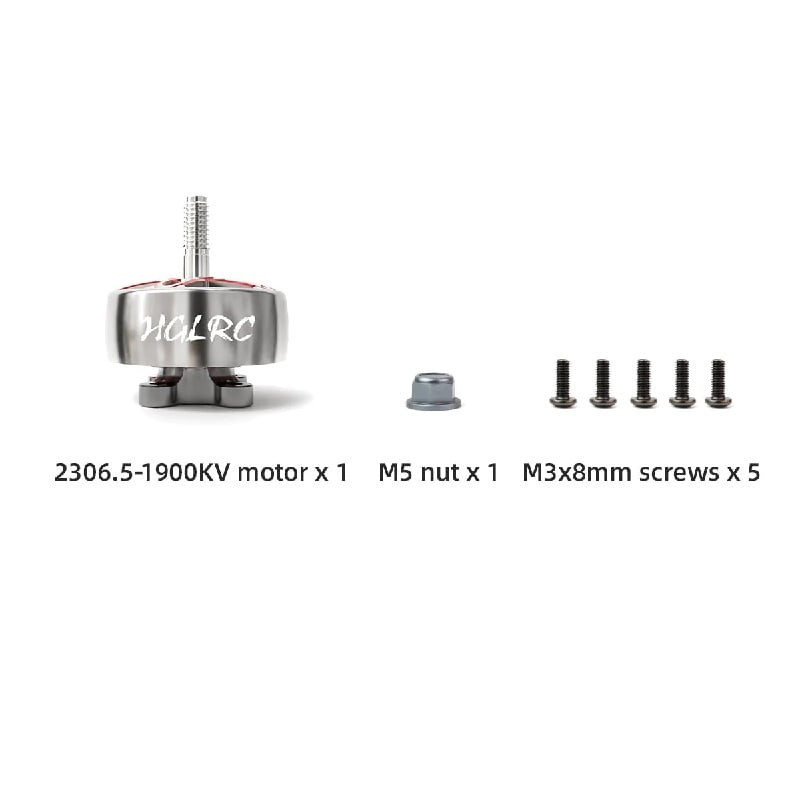

Package Includes:

1 x 2306.5-1900KV Motor
1 x M5 anti-loosening nut
5 x M3x8mm screw
