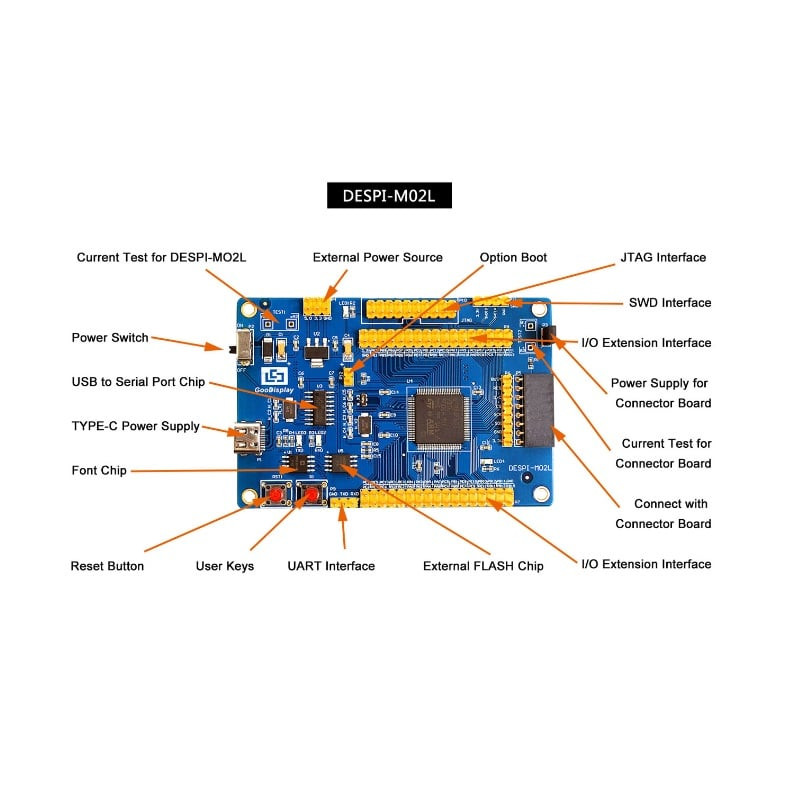

DESPI-L(C02)evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Displays black-white e-paper display and three-color (black, white, and red/Yellow) e-paper display: 0.97, 1.54,2.13, 2.66, 2.7, 2.9, 3.71, 4.2, 5.83 and 7.5. And it added the functions of a USB serial port and LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.

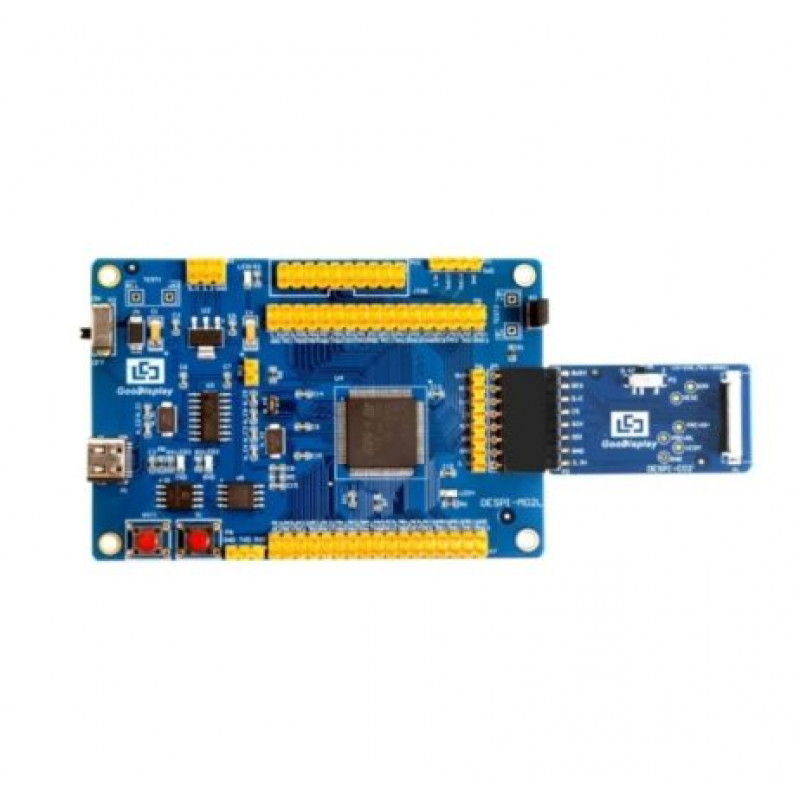

DESPI-L(C02) evaluation kit consists of motherboard DESPI-M02L and connector board DESPI-C02.
Note: Compared with DESPI, it has a Type-C interface, reset button, and font chip.
Features:
- STM32 microcontroller for control
- Interfaces with E-paper displays
- USB Type-C connection
- Display refresh control
- Efficient power management
- Compact design
Package Includes:
1 x Driving board DESPI-M02L
1 x Connector board DESPI-C02
1 x USB port cable
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STM32 E-Paper Type-C Interface Driver Board
- Product Code: EC-19803
- Availability: 20
-
Rs.3009.00
- (Excluding 18% GST)
