The ultra-low-power STM32L053x6/8 microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance Arm Cortex-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (up to 64 Kbytes of Flash program memory, 2 Kbytes of data EEPROM and 8 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.

The STM32L053x6/8 devices provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.

The STM32L053x6/8 devices offer several analog features, one 12-bit ADC with hardware oversampling, one DAC, two ultra-low-power comparators, several timers, one low-power timer (LPTIM), three general-purpose 16-bit timers and one basic timer, one RTC and one SysTick which can be used as timebases. They also feature two watchdogs, one watchdog with independent clock and window capability and one window watchdog based on bus clock.

Note:

1. For more technical details, go through the datasheet in the attachments
2. Image may vary from actual product in terms of brand and value printed

Specifications:

1. Power supply: 1.65 V to 3.6 V
2. Core: Arm 32-bit Cortex-M0+ with MPU
3. Crystal oscillator: 1 to 25 MHz
4. 7-channel DMA controller
5. Supporting ADC, SPI, I2C, USART, DAC, Timers
6. Peripheral: 8
7. Temperature range: -40 to 125 C

Packages Includes:

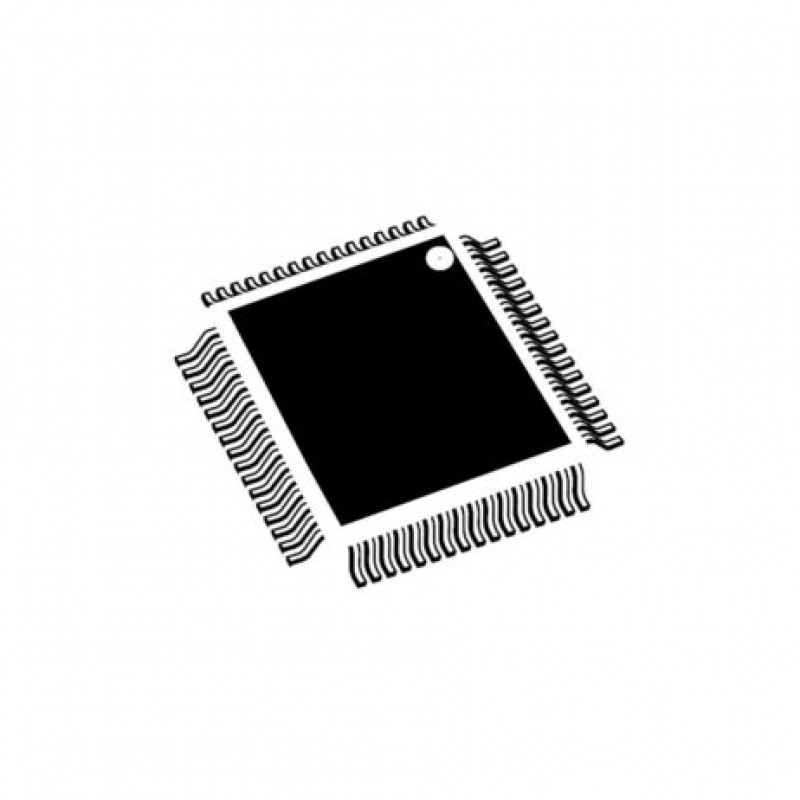

1 x STM32L053R8T6 ARM Microcontroller
