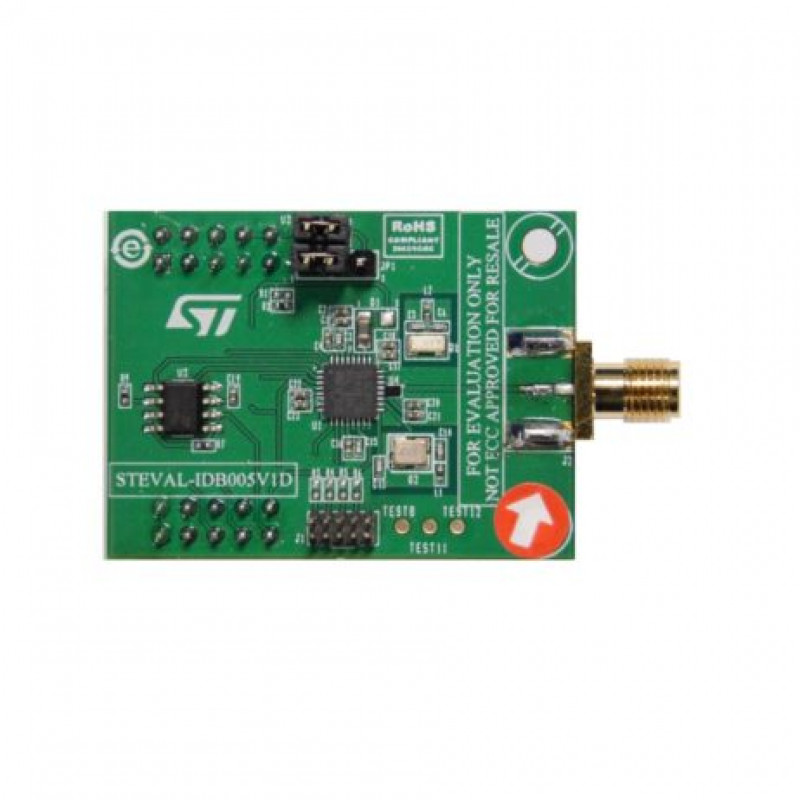

The STEVAL-IDB005V1D is an RF daughterboard platform based on the BlueNRG-MS low power Bluetooth Smart IC, compliant with the Bluetooth 4.1 specifications and supporting both master and slave roles. The STEVAL-IDB005V1D RF daughterboard features the BlueNRG-MS device, an SMA connector for antennas or measuring instruments, and an SPI connector for an external microcontroller. It can be connected to STM32L motherboards available with the STEVAL-IDB002V1 and STEVAL-IDB005V1 platforms.
Note: For more technical details go through Datasheet in the attachment section
Features:
- Bluetooth SMART RF daughterboard based on the BlueNRG-MS low-energy network processor
- Maximum transmission power +8 dBm
- Excellent receiver sensitivity (-88 dBm)
- Very low power consumption: 7.3 mA RX and 8.3 mA TX at +0 dBm
- Bluetooth low energy 4.1 compliant, supports both master and slave roles
Package Includes:
1 x STMicroelectronics Daughter Board, BlueNRG-MS Low Energy Bluetooth Smart IC, Bluetooth 4.1 Specification Compliant
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Daughter Board, BlueNRG-MS Low Energy Bluetooth Smart IC, Bluetooth 4.1 Specification Compliant
- Product Code: EC-19217
- Availability: Out Of Stock
-
Rs.5367.00
- (Excluding 18% GST)
