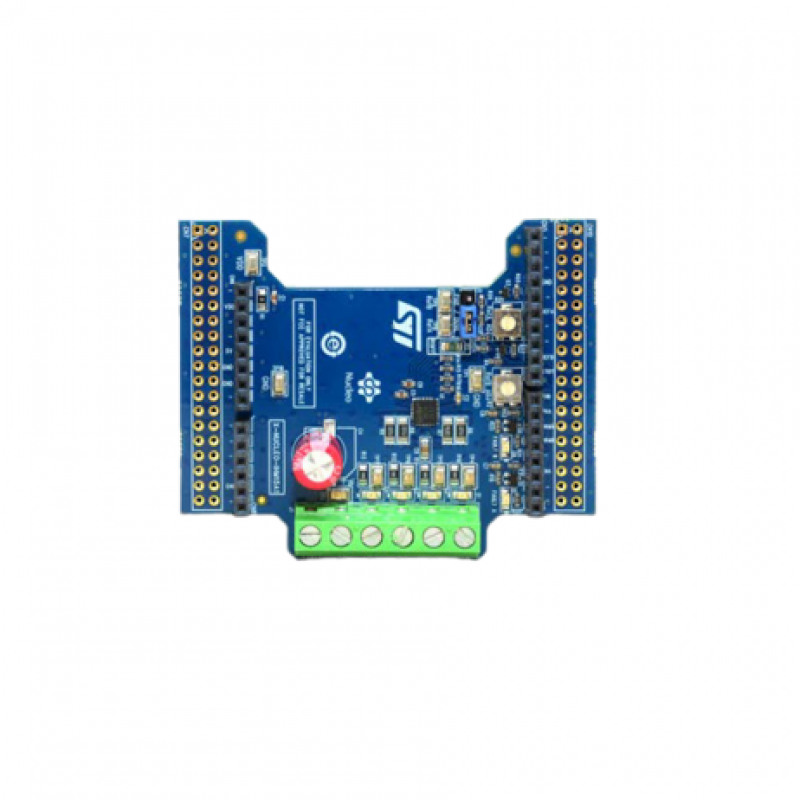

The X-NUCLEO-IHM15A1 dual brush DC motor driver expansion board is based onthe STSPIN840 for STM32 Nucleo. It provides an affordable and easy-to-use solution for the implementation of compact motor driving applications such as thermal printers, robotics and toys. Thanks to the parallel operation, it can be easily converted to a single brush DC driver with double current capability. The current limiters and complete set of protection features make it suitable for rugged applications. The X-NUCLEO-IHM15A1 is compatible with the Arduino UNO R3 connector and most STM32 Nucleo boards.
Note: For more technical details go through Datasheet in The attachment Section
Features:
- Parallel operation
- Compatible with Arduino UNO R3 connector
- Compatible with STM32 Nucleo boards
Package Includes:
1 x STMICROELECTRONICS Development Board, STSPIN840 DC Motor Driver, Dual Brush, Arduino, ST Morpho, For STM32 Nucleo
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Development Board, STSPIN840 DC Motor Driver, Dual Brush, Arduino, ST Morpho, For STM32 Nucleo
- Product Code: EC-22029
- Availability: 1
-
Rs.1689.00
- (Excluding 18% GST)
