The STEVAL-IOM001V1 evaluation board is based on the L6360 IO-Link master transceiver with physical layer compliant with IO-Link v1.1 specification.
Together with the STSW-IOM001 example code, it provides an affordable and easy to- use solution for the development of IO-Link applications, letting you easily evaluate the communication features and robustness of the L6360. You can also perform evaluation of multiple ports industrial IO-Link master modules by connecting up to four STEVAL-IOM001V1 with few solder bridge modifications. The STEVAL-IOM001V1 interfaces with the STM32 Nucleo microcontroller via UART and GPIO pins and is compatible with the Arduino UNO R3 (optional configuration) and ST morpho (default configuration) connectors.
Features:
- IO-Link master PHY based on L6360
- Interrupt diagnostics pin
- SPI (slave) interface
- CQ (push-pull) and L+ (high side) switches
- IQ additional IEC61131-2 type 1 digital input
- L+ and CQ overload and overheating protections with non-dissipative cut-off function
- Additional high side switch for L+ heavy loads (IPS161H)
Package Includes:
1 x STMICROELECTRONICS Evaluation Board, L6360 IO-Link Master Transceiver, ST Morpho, For STM32 Nucleo
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

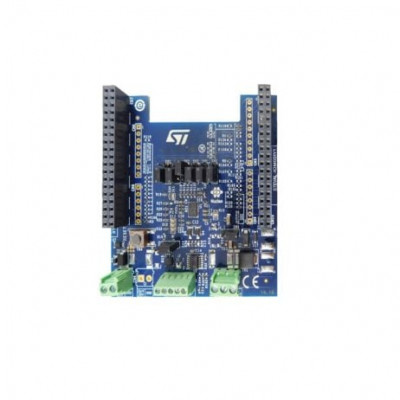

STMICROELECTRONICS Evaluation Board, L6360 IO-Link Master Transceiver, ST Morpho, For STM32 Nucleo
- Product Code: EC-22026
- Availability: Out Of Stock
-
Rs.4118.00
- (Excluding 18% GST)
