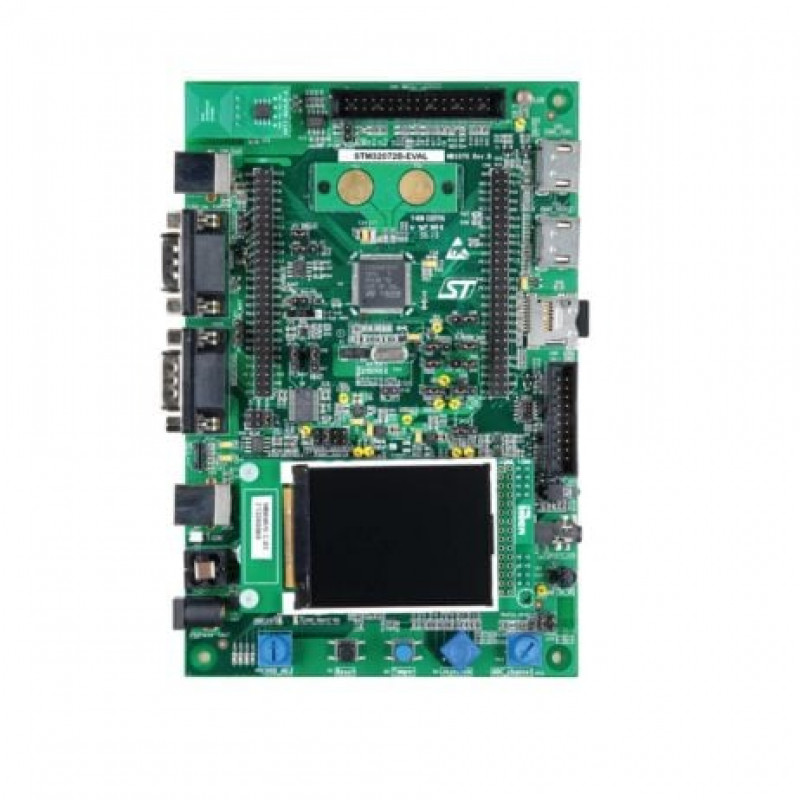

The STM32072B-EVAL is an Evaluation Board designed as a complete demonstration and development platform for ARM cortex-M0 core-based STM32F072VBT6 microcontroller. It features two ICs, two SPIs, four USARTs, one CAN, 12-bit ADC, 12-bit DAC, two GP comparators, internal 16kB SRAM and 128kB flash, USB FS, Touch sensing, CEC, SWD debugging support. The full range of hardware features on the board is designed for the evaluation of all the peripherals and the development of user-specific applications. Extension headers are used to easily connect a daughter board or a wrapping board for user-specific applications. The ST-LINK/V2 is integrated on the board as embedded in-circuit debugger and programmer for the STM32 MCU.
Note: for more technical details go through Datasheet in the attachment section
Features:
- 5V Power supply options power jack, ST-LINK/V2 USB connector, user USB connector or daughter board
- Stereo audio jack supports a headset with microphone connected to DAC and ADC of STM32F072VBT6
- 2GB (or more) SPI interface microSD card
- I2C compatible serial interface temperature sensor
- RF E2PROM
- RS232 and RS485 communication
- IrDA transceiver
- IR LED and IR receiver
- SWD debug support, ST-LINK/V2 embedded
Package Includes:
1 x STMICROELECTRONICS Evaluation Board, STM32F072VB MCU, 240320 TFT Colour LCD, 2GB SPI MicroSD Card
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Evaluation Board, STM32F072VB MCU, 240320 TFT Colour LCD, 2GB SPI MicroSD Card
- Product Code: EC-21958
- Availability: Out Of Stock
-
Rs.18391.00
- (Excluding 18% GST)
